Component Inspection

Primary Coil Resistance

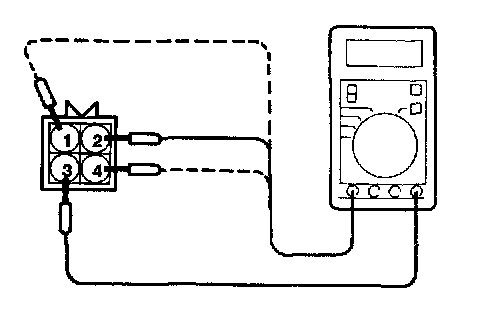

Measure the resistance between connector terminal (3) (power) and each coil terminal.

Measuring point:
Coil A (No.1-No.4 cylinder side coil): (2)-(3)
Coil B (No.2-No.5 cylinder side coil): (1)-(3)
Coil C (No.3-No.6 cylinder side coil): (4)-(3)

Standard value: 0.67 - 0.81 ohms





Secondary Coil Resistance

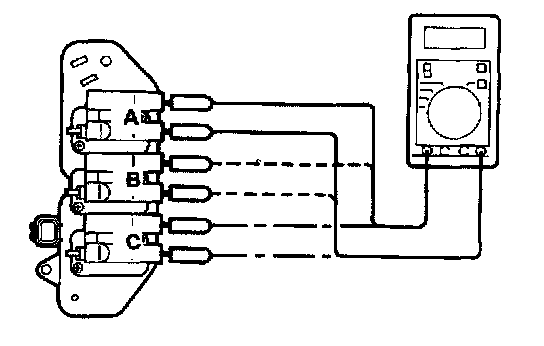

Measure the resistance between each coil high voltage terminals.

Measuring point:
Coil A (No.1-No.4 cylinder side coil)
Coil B (No.2-No.5 cylinder side coil)
Coil C (No.3-No.6 cylinder side coil)

Standard value: 11.3 - 15.3 k ohms
