Component Testing

Variable Induction Control Motor Check





1. Disconnect the variable induction control motor connectors.
2. Disconnect the air intake hose from the throttle body.

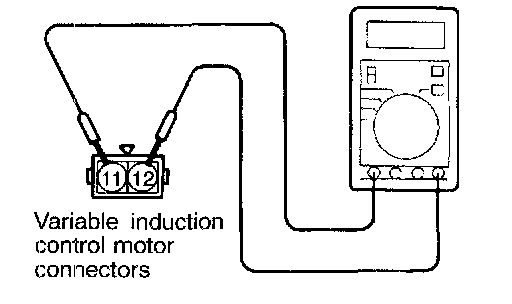

3. Check the variable induction control motor coil for continuity.

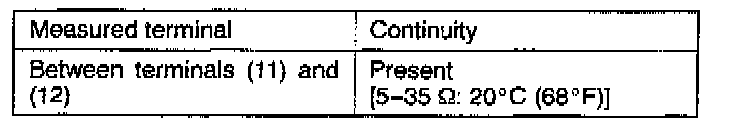

Standard Value

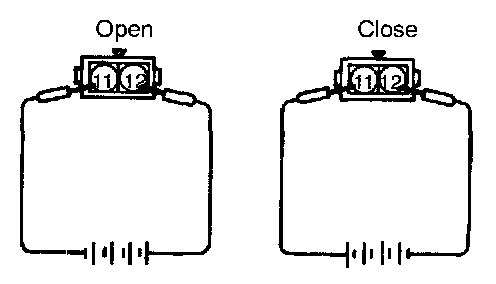

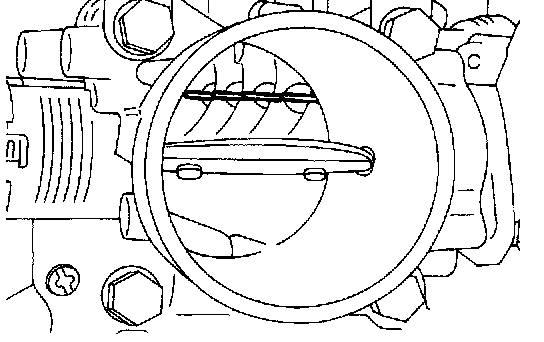

4. Make sure that when DC 6V is applied to terminals (11) and (12) of the variable induction control motor connector, the induction control valve opens and closes smoothly.

CAUTION: Be sure to apply a voltage of not higher than DC 6V to the variable induction control motor connector terminals since application of high voltage may lock the servo gears.

5. If outside the standard value, or if the variable induction valve does not open and close smoothly, replace the intake manifold plenum assembly.
