Fog/Driving Lamp: Service and Repair

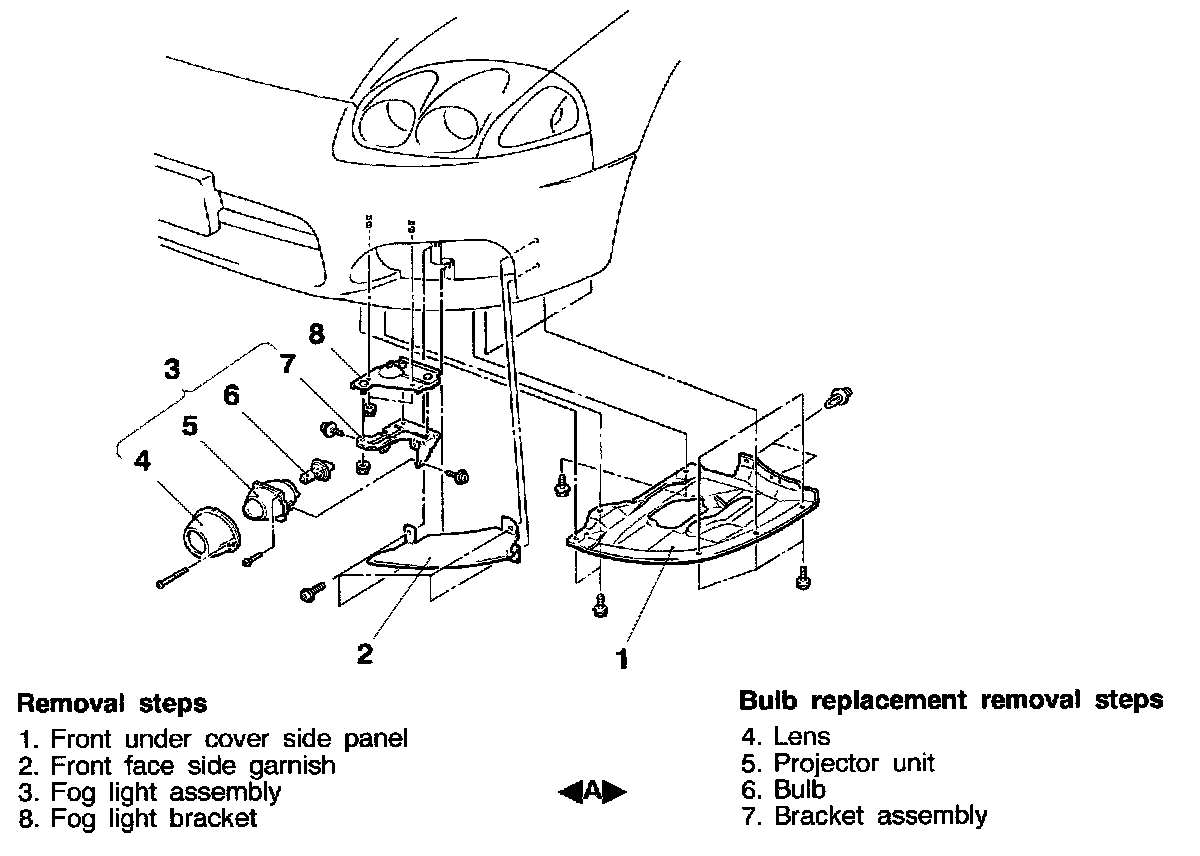

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

BULB REMOVAL

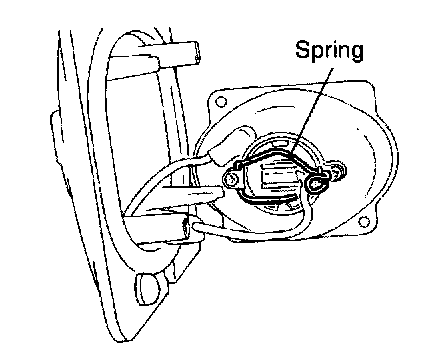

Remove the bulb mounting spring and remove the bulb.

CAUTION: Do not touch the surface of the headlight bulb with bare hands or dirty gloves.

If there are deposits on the surface, loosen and remove the deposits with a cloth dipped in alcohol or thinner, and let the surface dry before mounting the bulb.
