Initial Inspection and Diagnostic Overview

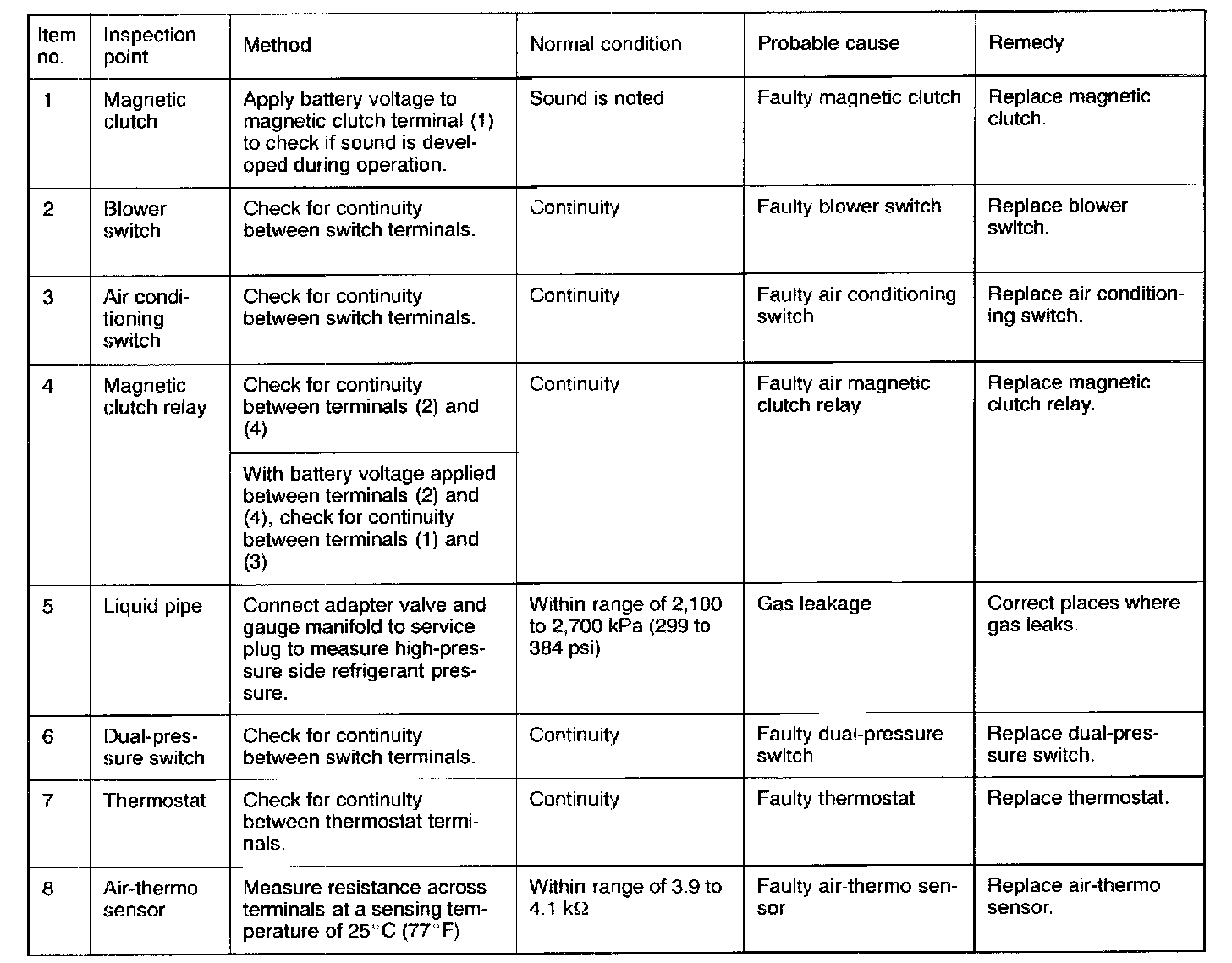

If no abnormality is noted at each inspection point after inspection conducted in the sequence shown in this quick-reference table it is suspected that the compressor is inoperative because of faulty air conditioning control unit. Therefore. replace the air conditioning control unit.
