Condenser Fan: Service and Repair

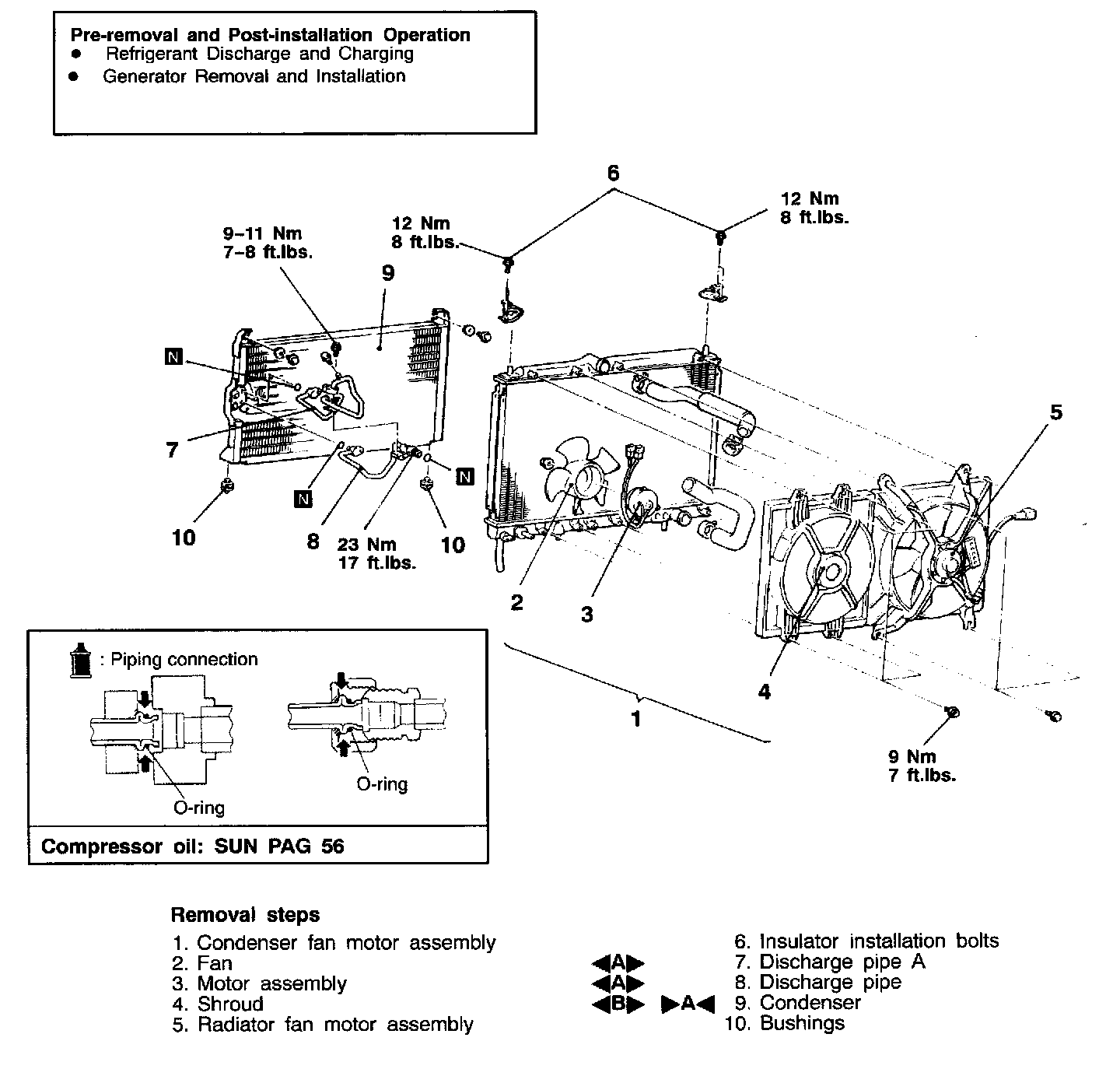

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINTS
DISCHARGE PIPE A / DISCHARGE PIPE REMOVAL

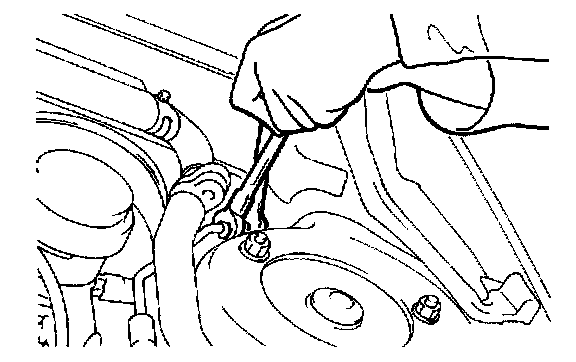

1. Loosen the flare nut by using two wrenches.
2. Plug the disconnected hose and pipes and the openings of the condenser in order to prevent dust, dirt and other foreign material from entering.
CONDENSER REMOVAL

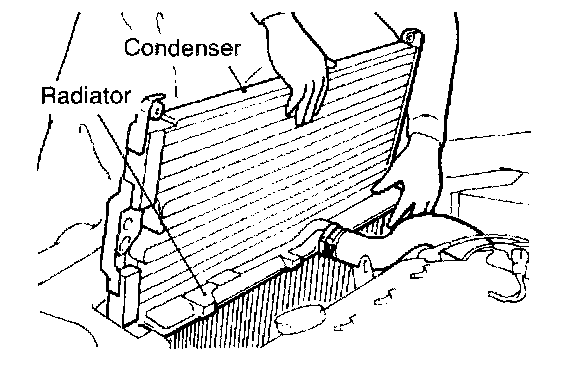

Move the radiator toward the engine, and then remove the condenser upward.
INSTALLATION SERVICE POINT
>A< CONDENSER INSTALLATION
If a new condenser is used, fill it with the specified amount of compressor oil before installing on the vehicle.
Compressor oil: SUN PAG 56
Quantity: 15 Cubic.cm (.5 fl.oz.)
