Blower Motor Resistor: Testing and Inspection

RESISTOR CHECK
Using a circuit tester, measure the resistance between the terminals indicated below.
The condition can be considered satisfactory ii the value measured at this time is equivalent to the standard value.

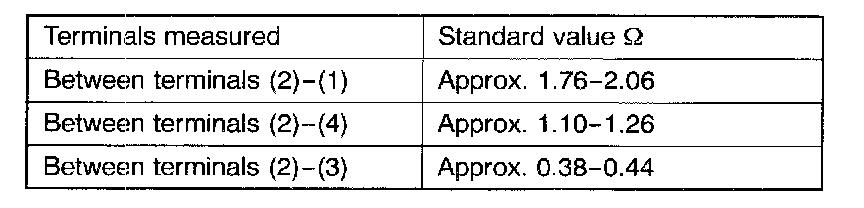

Standard value
