Removal and Replacement

REMOVAL AND INSTALLATION

Removal Service Points
[A] Air Conditioning Compressor / Power Steering Oil Pump Disconnection
Disconnect air conditioning compressor and power steering oil pump (with the hose).

NOTE: The removed air conditioning compressor and power steering oil pump should be fastened (by using rope, etc.) in a position that will not interfere with the removal/installation of the engine assembly.

[B] Engine Mount Bracket Removal

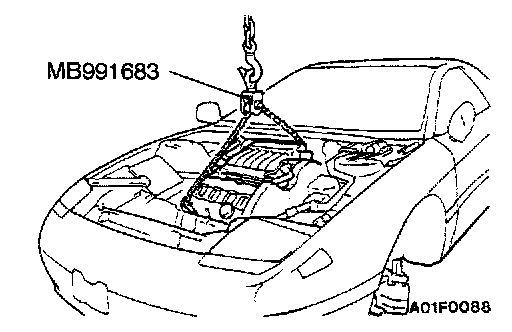

Before removing the engine mount bracket installation bolt, use the special tool and chain block or similar arrangement to suspend the engine assembly (to the extent that there is no looseness of the chain).

[C] Engine Assembly Removal
After checking that the cables, hoses, harness connectors, etc. are all removed, slowly raise the chain block to lift the engine assembly upward out of the engine compartment.

Installation Service Points
]A[ Engine Assembly Installation
When mounting the engine, check to be sure that the cables, hoses, harness connectors, etc. are all in the correct position.

]B[ Engine Mount Bracket Installation

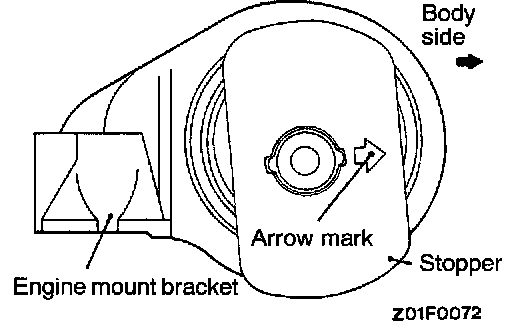

Attach the engine mounting bracket so that the arrow mark on the mounting stopper is in the direction as shown in the illustration.
