Pinout Values and Diagnostic Parameters
CHECK AT THE ECU TERMINALS

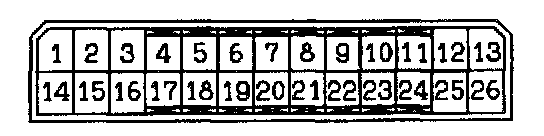

Connector View

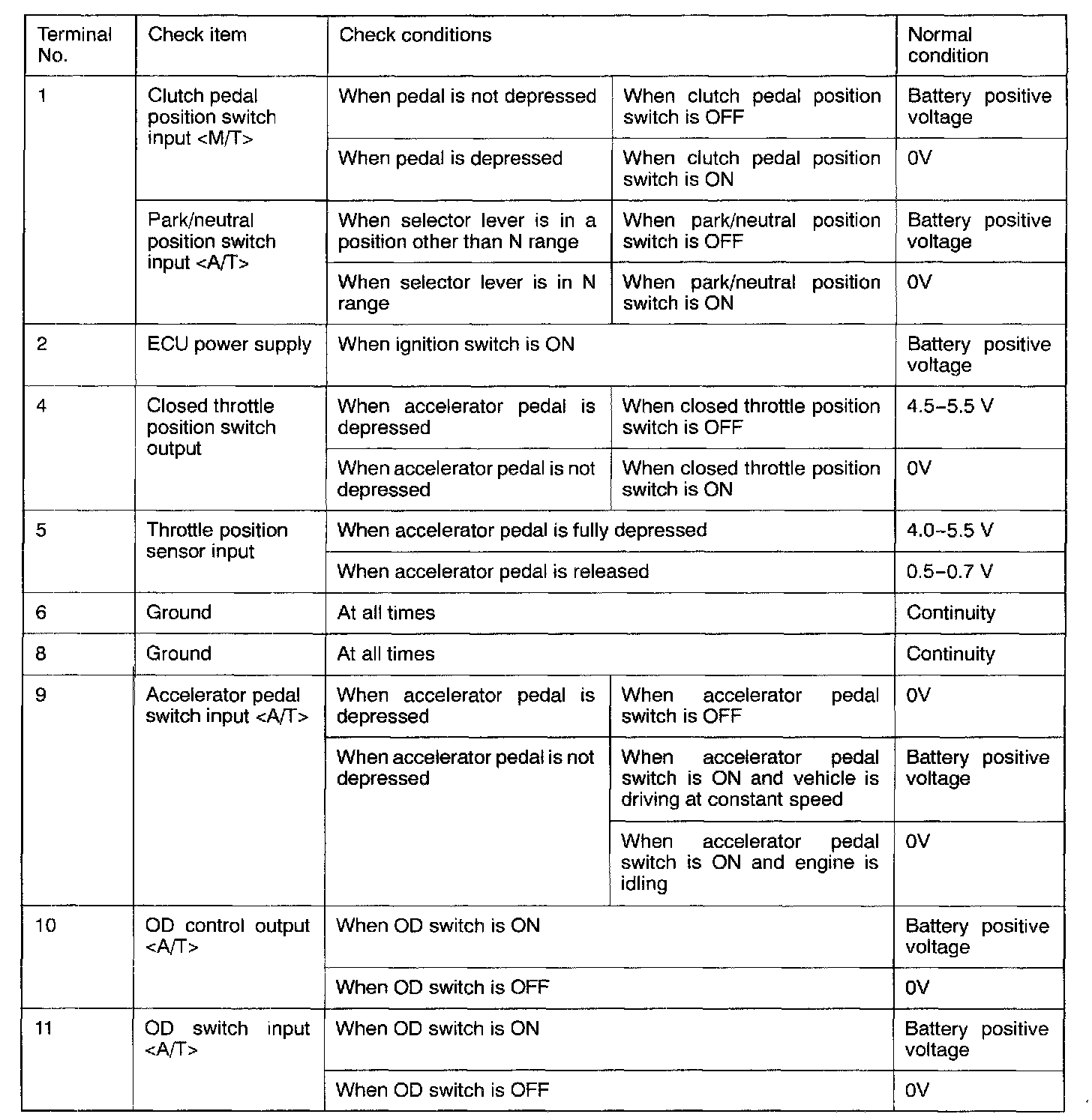

Part 1 of 3

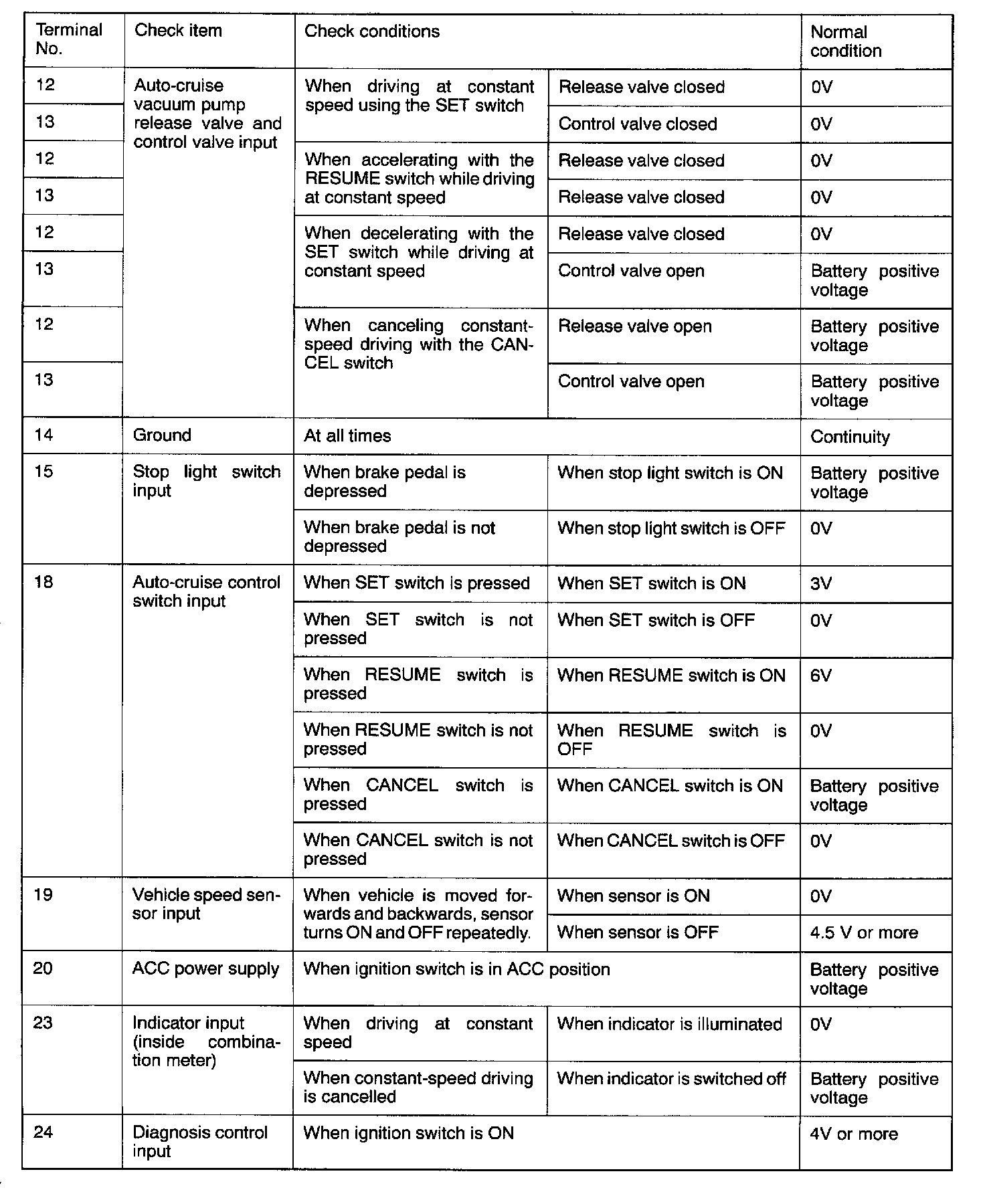

Part 2 of 3
Part 3 of 3
