Rear Disc

REAR BRAKE DISC THICKNESS CHECK
1. Remove dirt and rust from brake disc surface.





2. Measure disc thickness at 4 locations or more.
Standard value:
18.0 mm (0.71 inch)
20.0 mm (0.79 inch)
Limit:
16.4 mm (0.65 inch)
18.4 mm (0.72 inch)
Replace the discs and pad assembly for both sides left and right of the vehicle if they are worn beyond the specified limit.

REAR BRAKE DISC RUN-OUT CHECK

Removal Of Rear Brake Assembly:

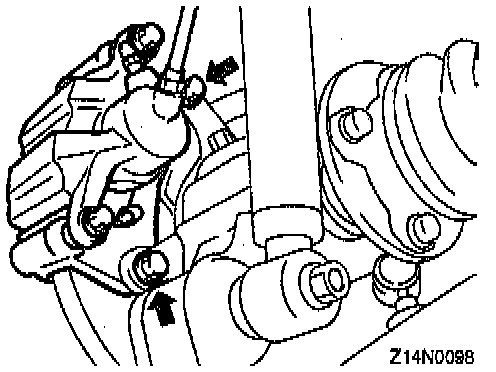

1. Remove the rear brake assembly, and support it by a wire, etc.

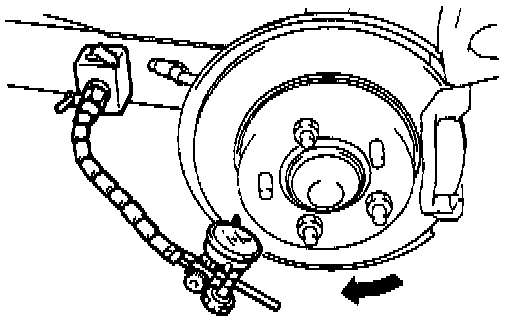

2. Place a dial gauge approximately 5 mm (0.2 inch) from the outer circumference of the brake disc, and measure the run-out of the disc.
Limit: 0.08 mm (0.0031 inch) or less

NOTE: Tighten nuts to secure the disc to the hub.
