Mirrors: Service and Repair

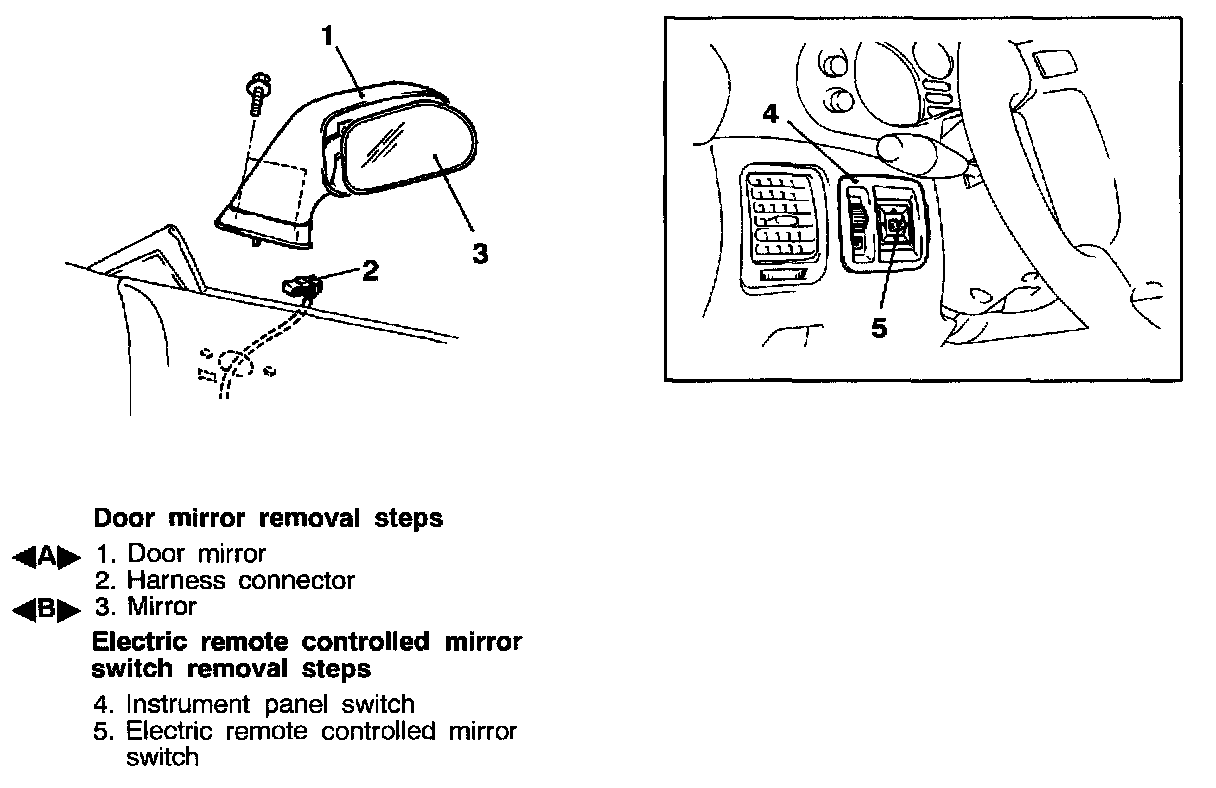

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

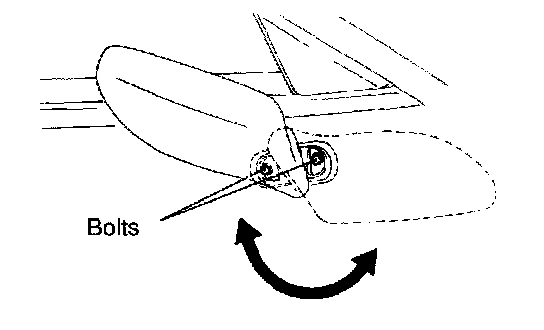

[A] DOOR MIRROR REMOVAL
Tilt the door mirror backward and forward to remove the attaching bolts.

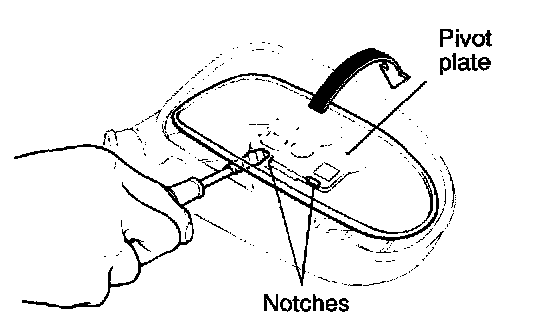

[B] MIRROR REMOVAL
Tilt the mirror upward and fit a screwdriver blade covered with protective tape in the notch between the mirror and the pivot plate to pry up the mirror.

CAUTION: Do not fit the screwdriver blade between the pivot plate and actuator assembly.
