Door Lock Switch Check

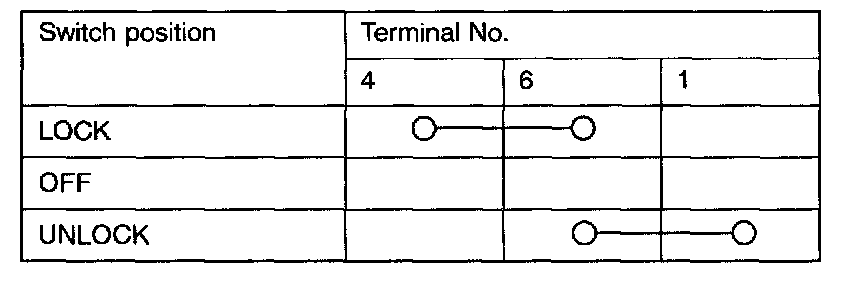

DOOR LOCK SWITCH CHECKCheck for continuity in accordance with the following connection table.

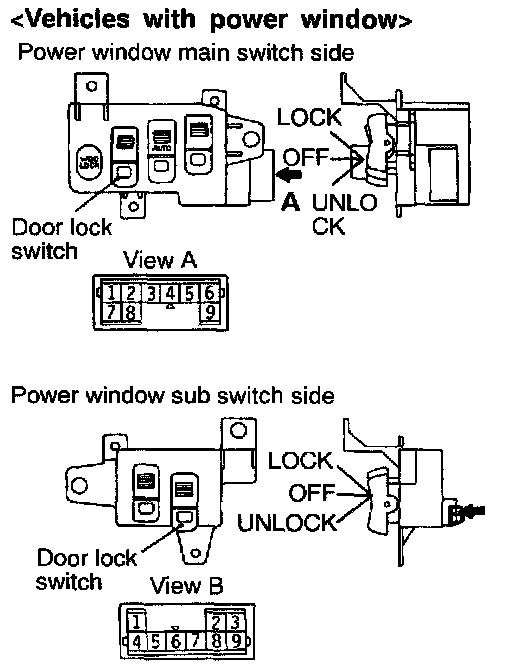

[Vehicles with power window>
Power window main switch side

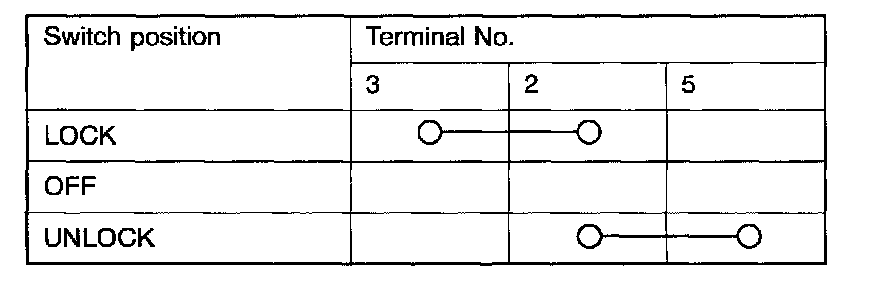

Power window sub switch side

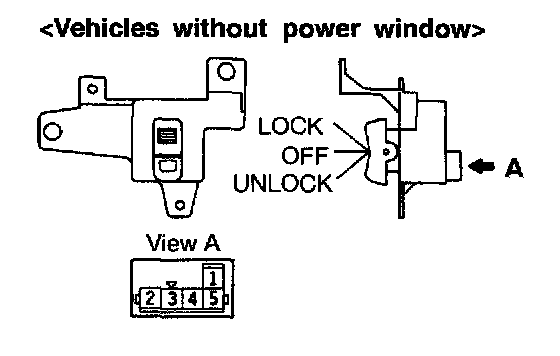

[Vehicles without power window>

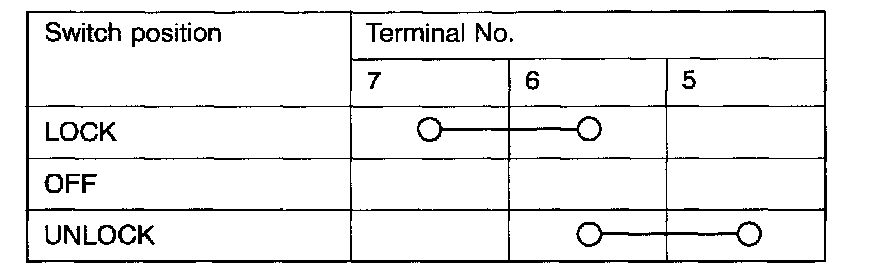

Check for continuity in accordance with the following connection table.
[Vehicles with power window>
Power window main switch side
Power window sub switch side
[Vehicles without power window>
