Security Code Input Procedure (With Alarm System)

The radio and tape player does not under the following conditions.
1. Power supply to the radio and tape player has been suspended for more than one hour continuously by removing the cable from the battery terminal or disconnecting the harness connectors.
2. The power supply to the radio and tape player has been suspended for more than one hour due to blown fuse or discharged battery.
3. The radio and tape player has been replaced.
If the radio and tape player does not work for these conditions, enter the security code as follows.

1. Confirm the security code using any of the following methods.




1. Use the security code indicated on the cards retained by the user.




2. If the security code is unknown due to the user's loss of the card:
a. Remove the radio and tape player.

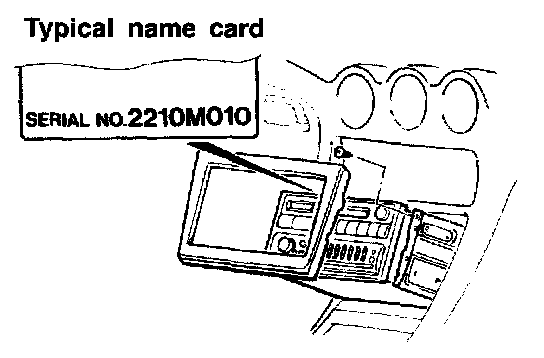

b. Read the serial number stamped on the radio and tape player.
c. Look up the security code (anti-theft code table) corresponding to the serial number.

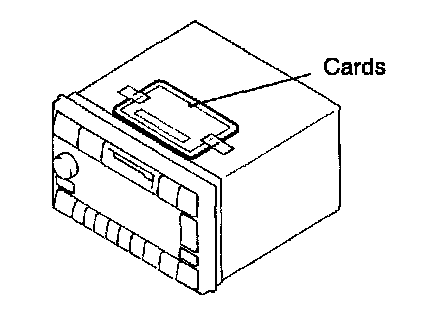

3. When the radio and tape player is replaced. Use the security code on the cards attached to the upper surface of the replacement radio and tape player.

NOTE: Deliver the cards (two) to the user.




2. Return power supply for the radio, tape player and CD player to the normal state.
3. Turn the ignition key to the "ACC" position.

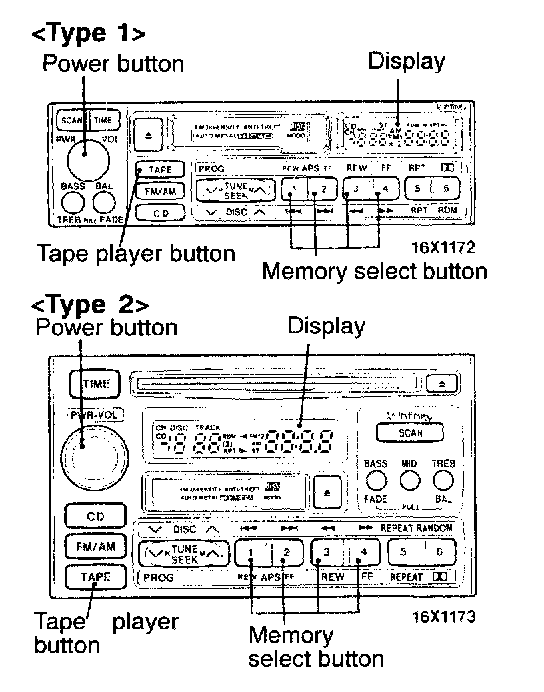

4. Press the Power button, and "code" will be displayed on the display.

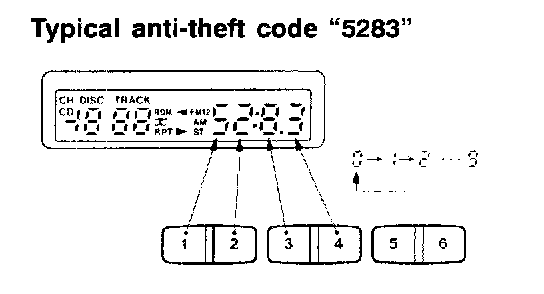

5. Press No.1 through No.4 memory select buttons and set the 4-digit anti-theft code indicated on the card.

NOTE: Pressing the memory select button increases the number displayed.

6. Press the tape player button. After a beep is heard, the radio, tape player and CD player will be in the operating state.
7. If the input anti-theft code does not agree with that in memory, a beep sounds for two seconds. "1 Err" is displayed at that time and changes into "code". Then repeat steps 5 and 6.

NOTE:
1. The antitheft code can be set three times at the most.
2. The seconds error is displayed as "2 Err". If the third trial fails, a beep sounds for five seconds. "3 Err" is displayed at that time and changes into "OFF".
3. When setting is attempted three or more times, keeping the ignition key in the "ACC" or "ON" position for about one hour will automatically erase the "OFF" display. After the erasing, therefore, repeat step 3 and up.
After the erasing, therefore, repeat step 3 and up. If the ignition key is turned to the "OFF" position during one hour period of keeping it in "ACC" or "ON" position, the "OFF" display will be erased.
With the ignition key placed in the "ACC" position again, press the POWER button, and the "OFF" display will be resumed. Therefore, keep this state for another one hour or so.
