Overhaul

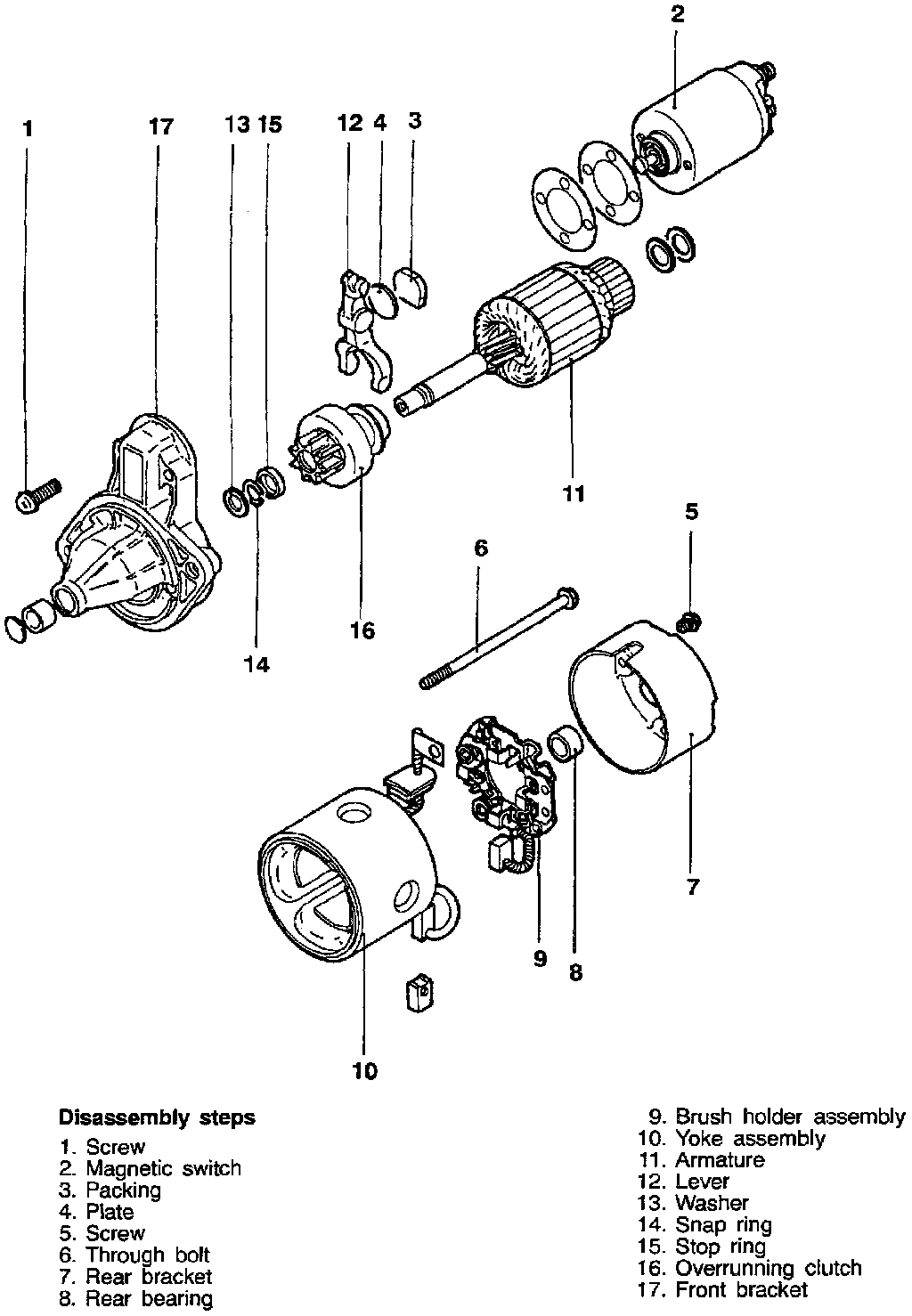

Disassembly steps
1. Screw
2. Magnetic switch
3. Packing
4. Plate
5. Screw
6. Through bolt
7. Rear bracket
8. Rear bearing
9. Brush holder assembly
10. Yoke assembly
11. Armature
12. Lever
13. Washer
14. Snap ring
15. Stop ring
16. Overrunning clutch
17. Front bracket

Disassembly
To Disassemble follow the steps listed in the image and note the following.




Step 2: Magnetic Switch Removal
Disconnect field coil wire from "M" terminal of magnetic switch.




Step 14/15: SNAP/STOP Ring Removal
1. Using an appropriate long socket wrench tap the stop ring to remove it from the pinion gear side.




2. Remove snap ring with snap ring pliers and then remove stop ring and overrunning clutch.

Reassembly
To Reassemble follow the steps listed in the image and note the following.




Step 14/15: STOP RING/SNAP RING INSTALLATION
Using a suitable pulling tool, pull overrunning clutch stop ring over snap ring.
