Air Bag Control Module: Service and Repair

CAUTION:
1. Never attempt to disassemble or repair the SRS-ECU. If faulty, replace it.
2. Do not drop or subject the SRS-ECU to impact or vibration.
If denting, cracking, deformation, or rust are discovered in the SRS-ECU, replace it with a new SRS-ECU. Discard the old one.
3. After deployment of an air bag, replace the SRS-ECU with a new one.
4. Never use an ohmmeter on or near the SRS-ECU, and use only the special test equipment described.

Pre-removal Operation
- Turn the ignition key to "LOCK" position.
- Floor Console Removal.




Removal




1. Negative (-) Battery Cable Disconnection
Disconnect the negative battery cable from the battery and tape the terminal.

CAUTION: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

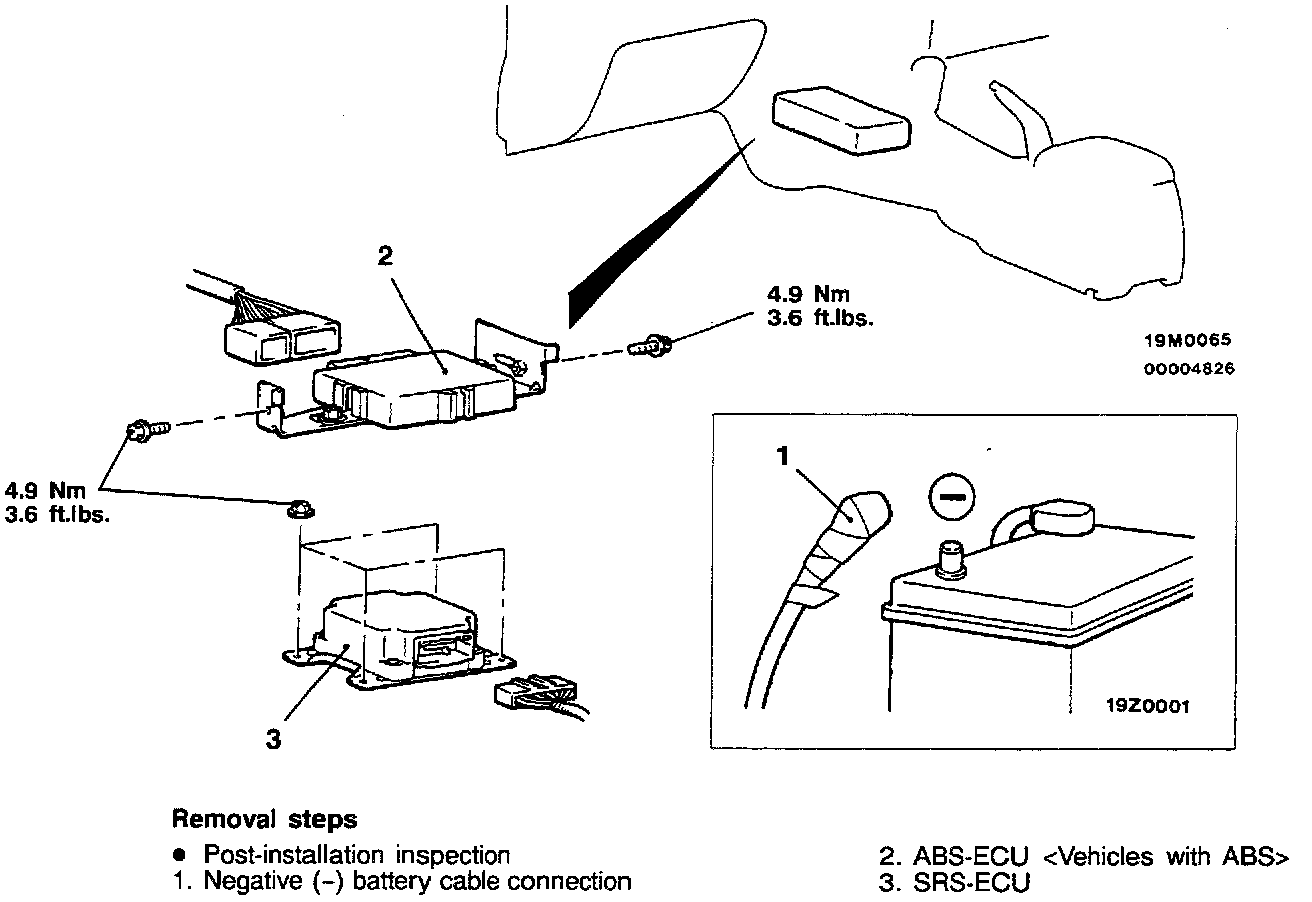

2. Remove ABS-ECU
3. Remove SRS-ECU

Installation
To install reverse the removal steps and note the following.

3. SRS-ECU Installation

CAUTION: The SRS may not activate if SRS-ECU is not installed properly, which could result in serious injury or death to the vehicle's driver or front passenger.

Post-installation operation
- Floor Console Installation

Post-installation Inspection
1. Turn the ignition key to the "ON" position.
2. Does the "SRS" warning light illuminate for about 7 seconds, and then remain off for at least 5 seconds after turning off?
3. If yes, SRS system is functioning properly. If no, refer to Air Bags (Supplemental Restraint Systems)/Testing and Inspection/Procedures.
