INSPECTION USING SCAN TOOL DATA LIST AND ACTUATOR TESTING






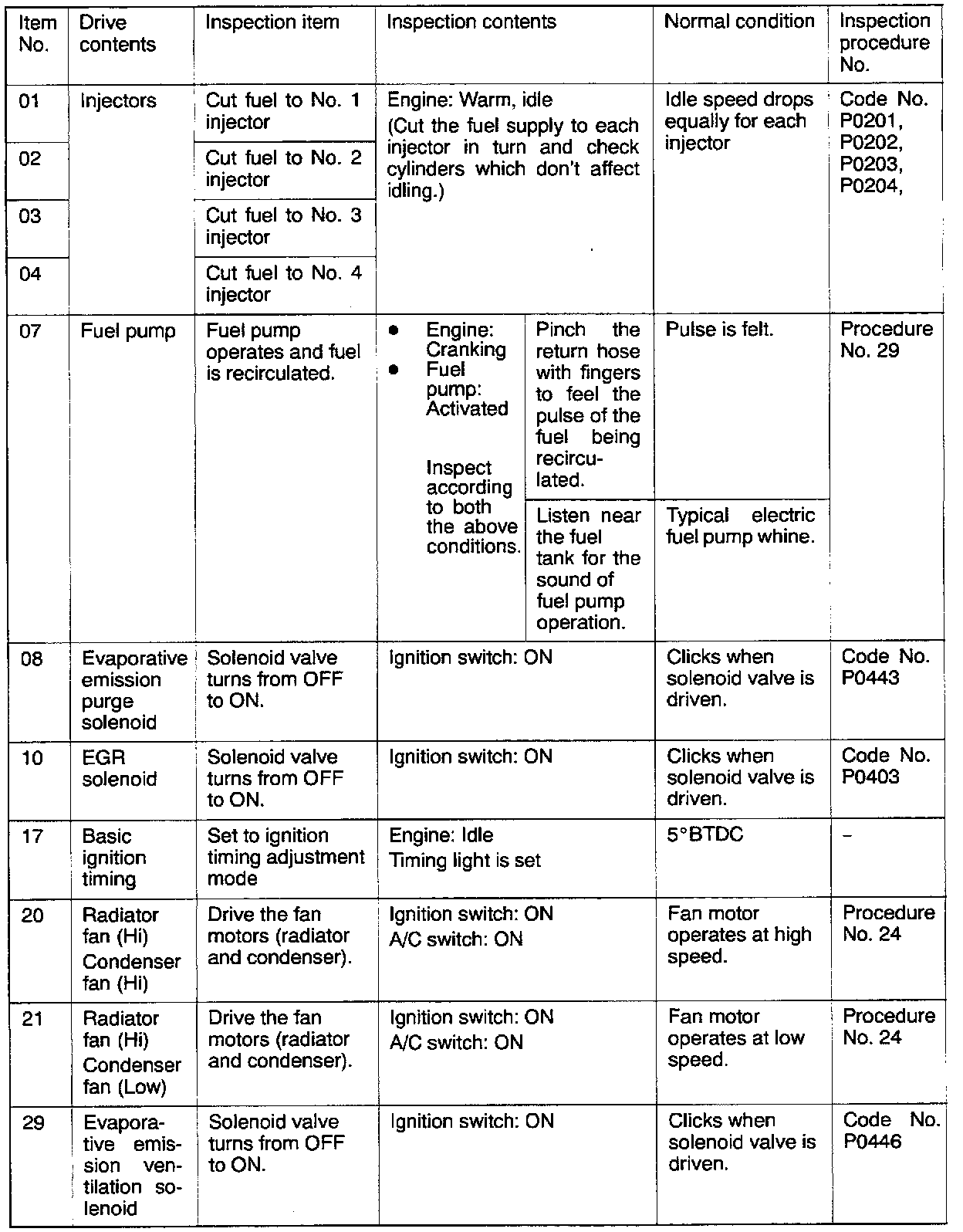

DATA LIST REFERENCE TABLE

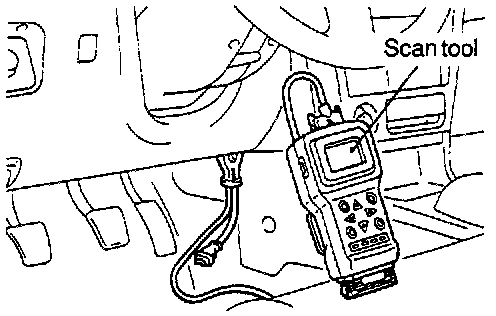

The scan tool (MUT-II) has two operation modes: the general scan mode and the scan tool (MUT-II) mode.

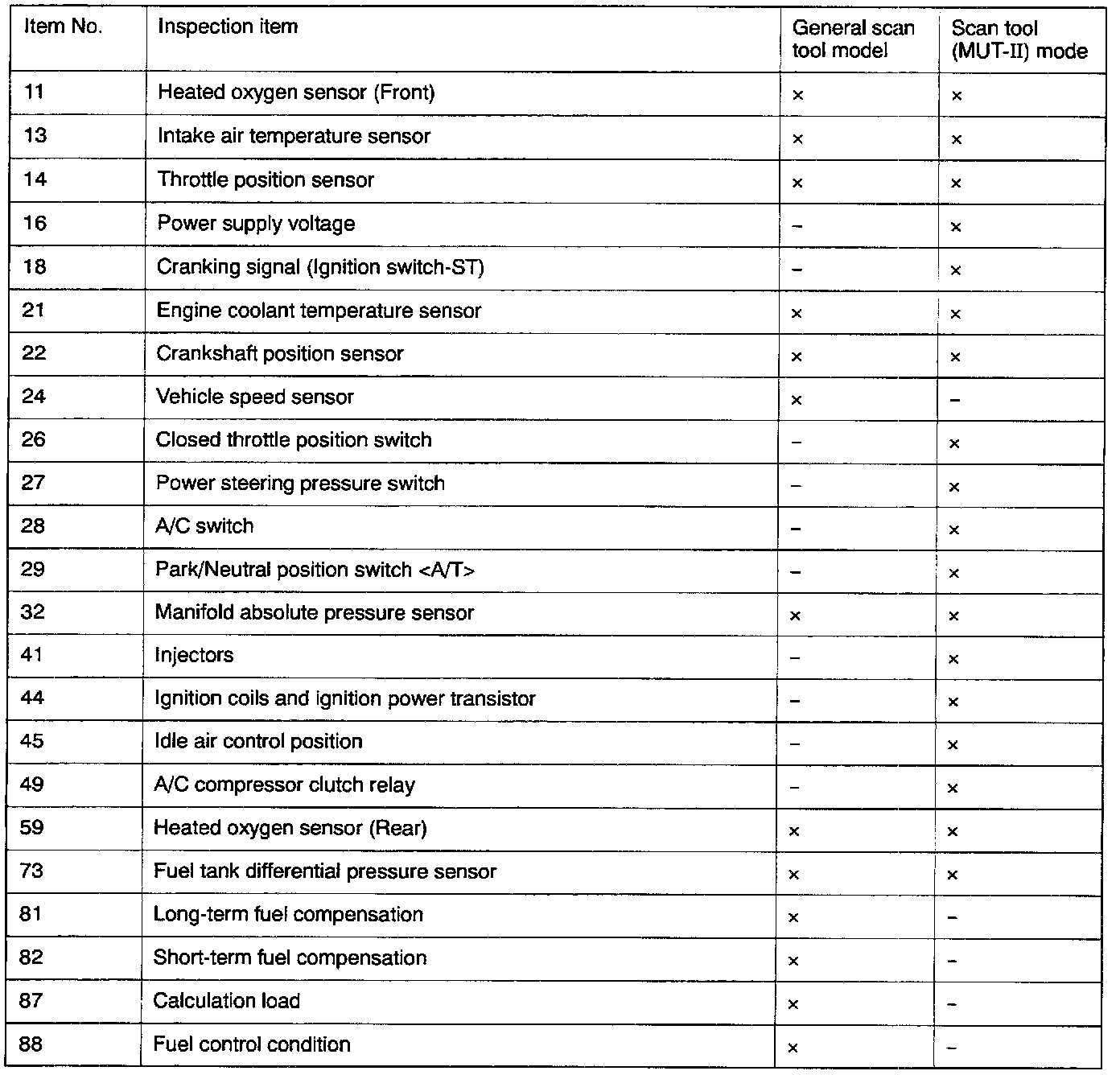

The data list which can be read in either mode is shown in the table.

1. Carry out inspection by means of the data list and the actuator test function.




If there is an abnormality, check and repair the chassis harnesses and components.
2. After repairing, re-check using the scan tool and check to be sure that the abnormal input and output have returned to normal as a result of the repairs.
3. Erase the diagnostic trouble code(s).
4. Remove the scan tool.
5. Start the engine again and road test to confirm that the problem is eliminated.


CAUTION:
1. When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
2. Driving tests always require another person.
