Control Unit

Locations A - F Overview:

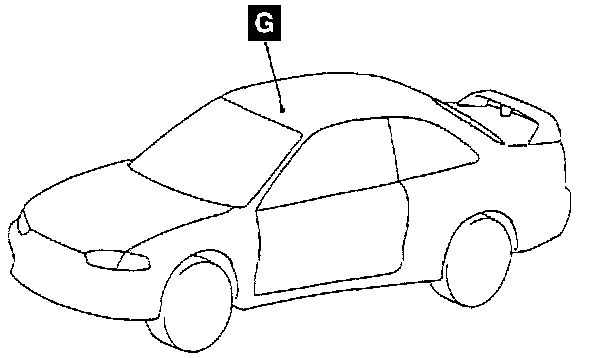

Location G Overview:

Locations A - F:

Location G:

Name Symbol
ABS-ECU C
Auto-Cruise Control-ECU B
Automatic Compressor-ECU E
Buzzer-ECU A
Engine Control Module F
ETACS-ECU A
SRS-ECU C
Sunroof-ECU G
Transaxle Control Module D
