Ignition Switch: Service and Repair

CAUTION SRS: Before removal of air bag module and clock spring, refer to the following items:
SRS Service Precautions
Air Bag Module and Clock Spring






Removal

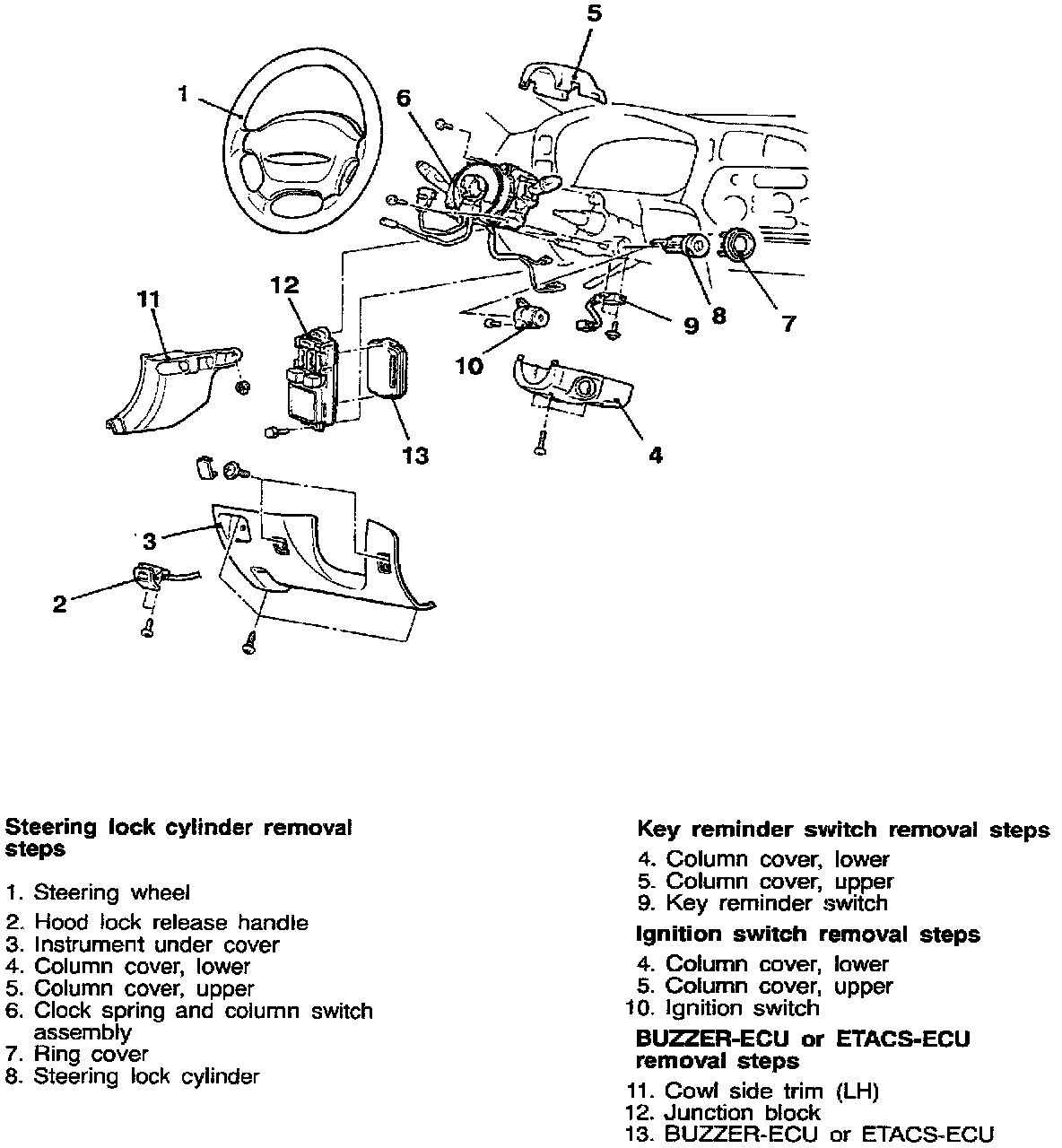

To remove follow the steps listed in the image and note the following:





Step 8: Steering Lock Cylinder Removal
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

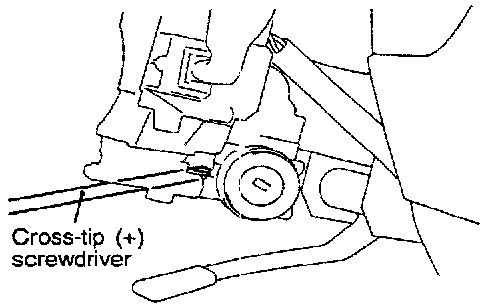

2. Using a cross-tip (+) screwdriver (small) or a similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.


Installation
To install reverse the steps listed in the image and note the following:

Clock Spring And Column Switch Assembly Installation:

Step 6: Clock Spring And Column Switch Assembly Installation

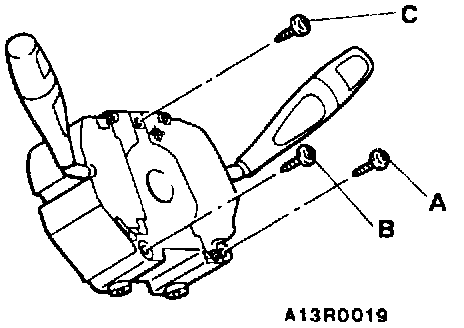

1. Tighten the screws in alphabetical order.





2. Align the mating marks of the clock spring and, after turning the front wheels to the straight-ahead position, install the clock springs to the column switch.

Mating Mark Alignment
Turn the clock spring clockwise fully and then turn back it approximately 3 4/5 turns counterclockwise to align the mating marks.

CAUTION: If the clock spring's mating marks are not properly aligned, the steering wheel may not rotate completely during a turn or the flat cable within the clock spring may be severed, obstructing normal operation of the SRS and possibly leading to serious injury to the vehicle's driver.
