A/T - Speedometer Gear Revision

NO: TSB-99-23-006
DATE: July, 1999
MODEL: 1997-99 Mirage

SUBJECT:
SPEEDOMETER GEAR - SERVICE MANUAL REVISION

[TSB Revision TSB-99-23-006]

PURPOSE

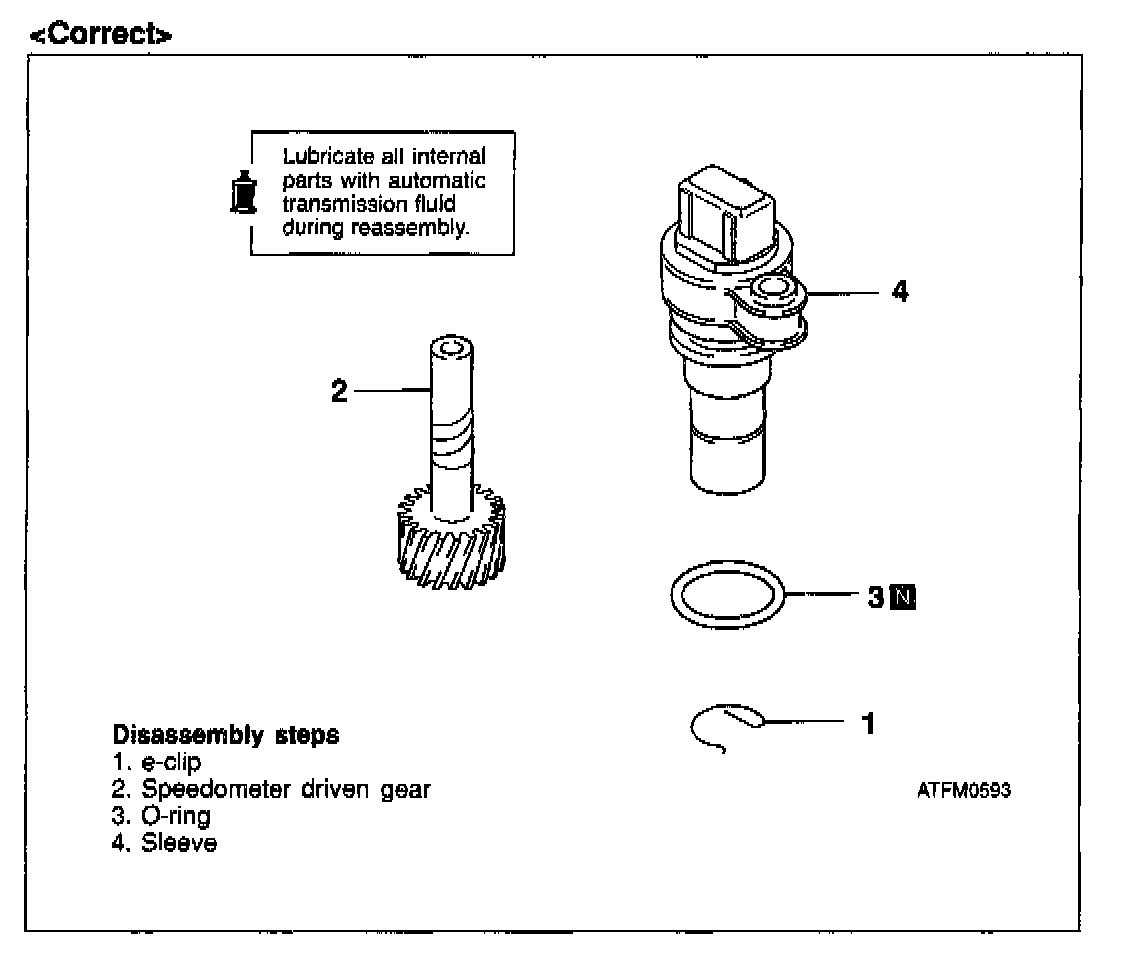

The speedometer gear is incorrectly depicted in the Automatic Transmission Overhaul section of the affected service manuals. Speedometer gears on 1997-99 Mirages have a built-in sensor.

This bulletin contains corrected speedometer gear illustrations for affected vehicles.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

1997-99 Mirage models equipped with automatic transmission

AFFECTED SERVICE MANUALS

1997 Mirage, Volume 1, pages 23B-22, 23B-48, and 23B-73
1998 Mirage, Volume 1, pages 23B-22, 23B-49, and 23B-74
1999 Mirage, Volume 1, pages 23B-22, 23B-49, and 23B-73

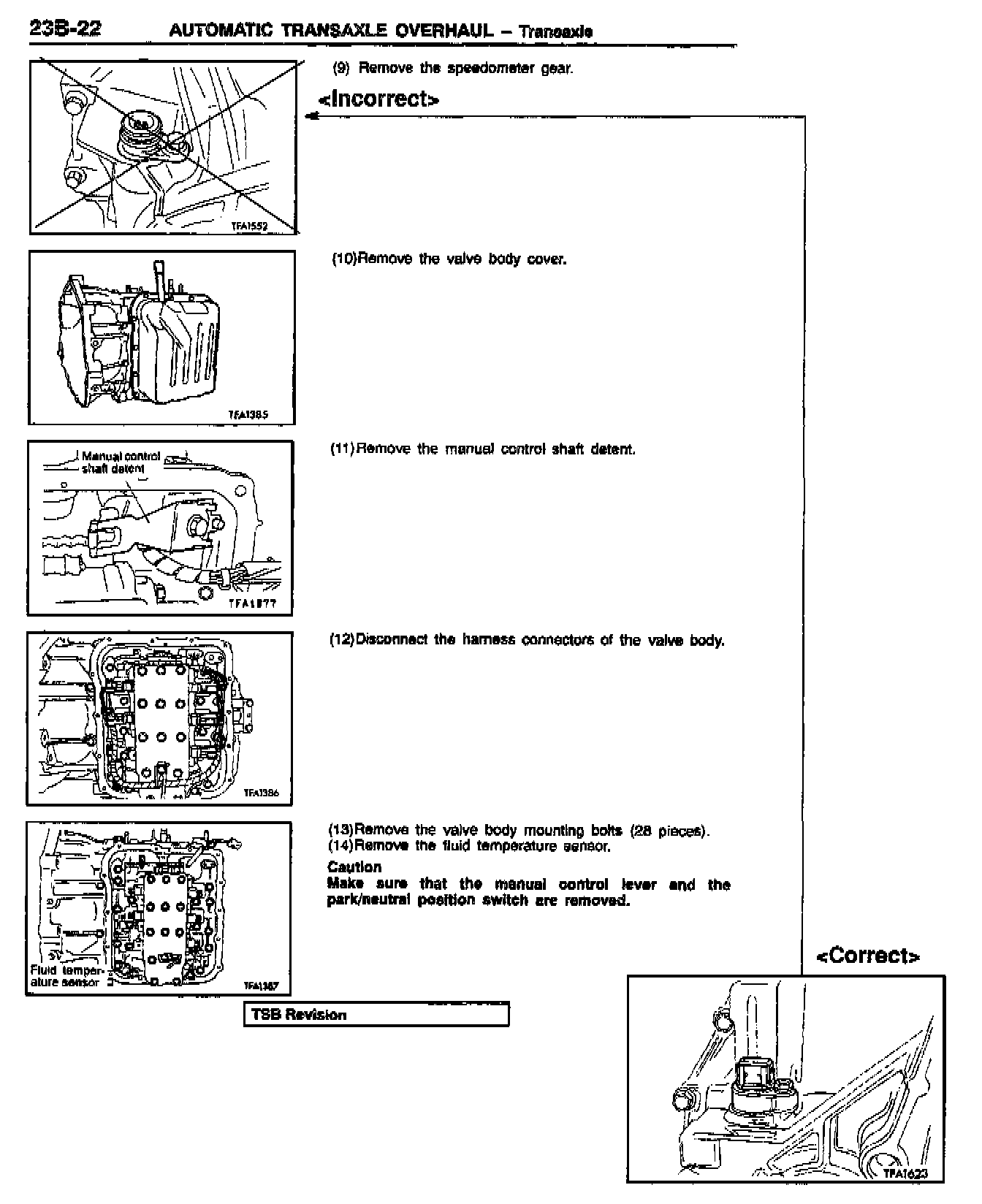

1997 Mirage, Volume 1, page 23B-22

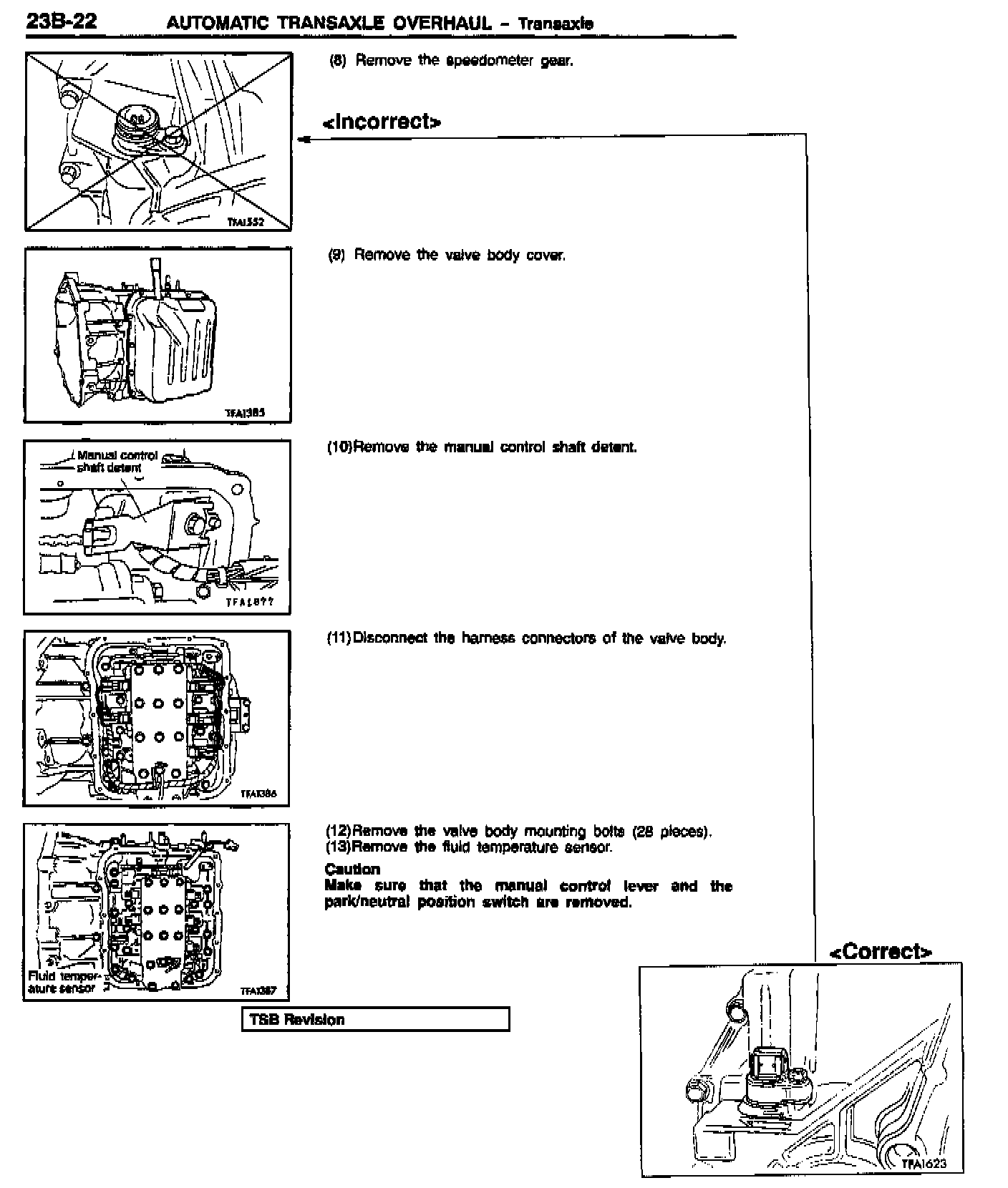

1998 and 1999 Mirage, Volume 1, page 23B-22

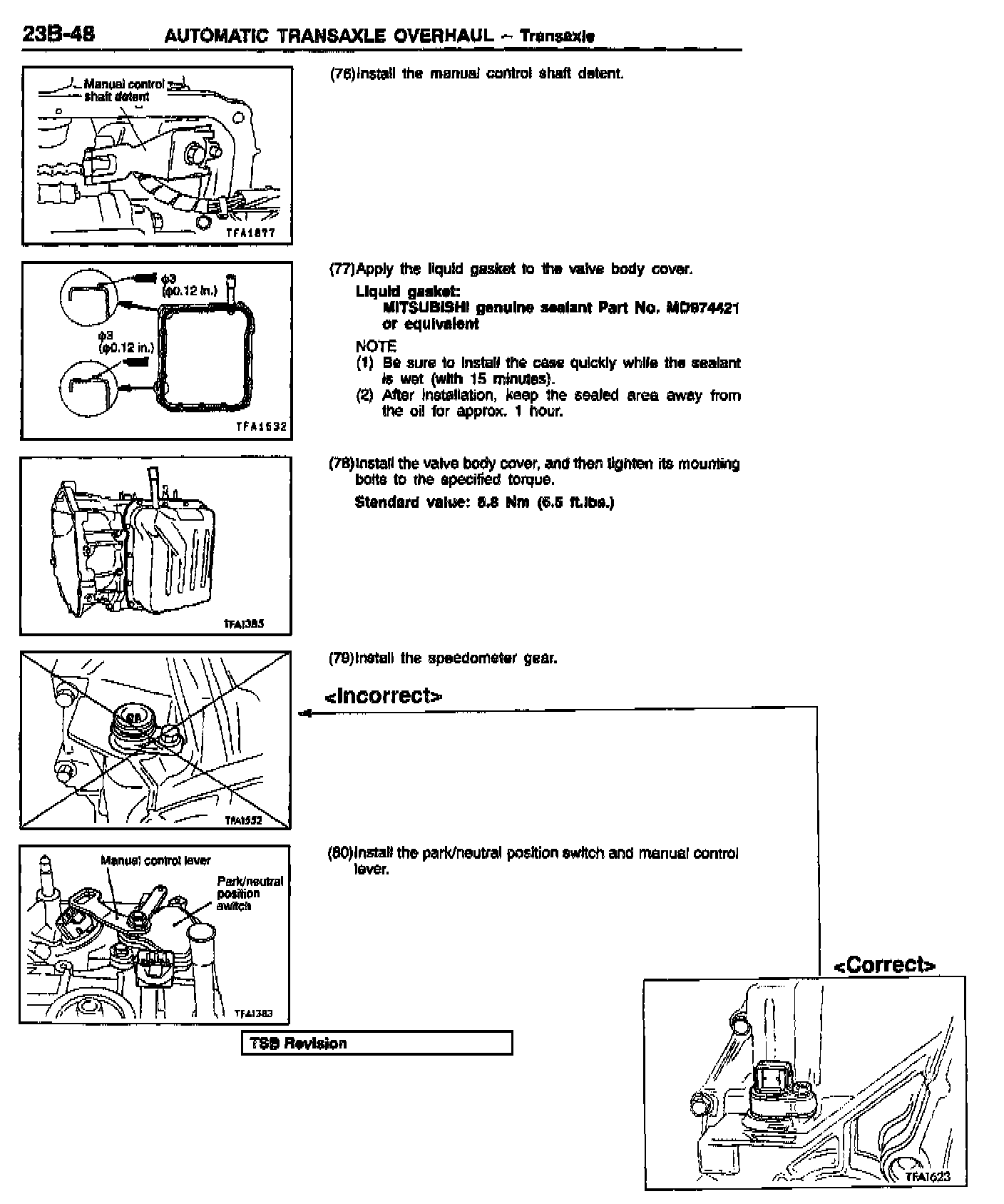

1997 Mirage, Volume 1, page 23B-48

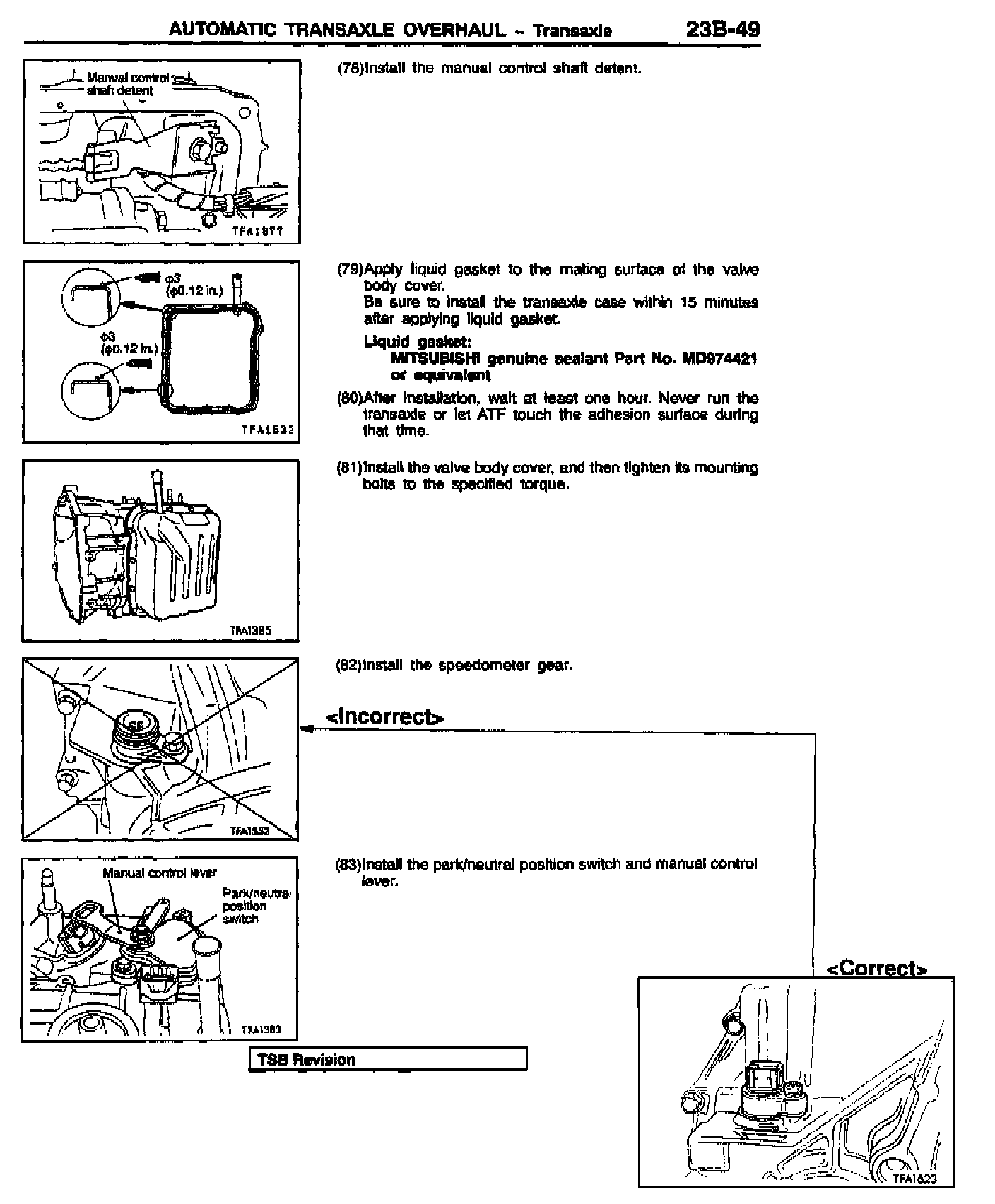

1998 Mirage, Volume 1, page 23B-49





1999 Mirage, Volume 1, page 23B-49

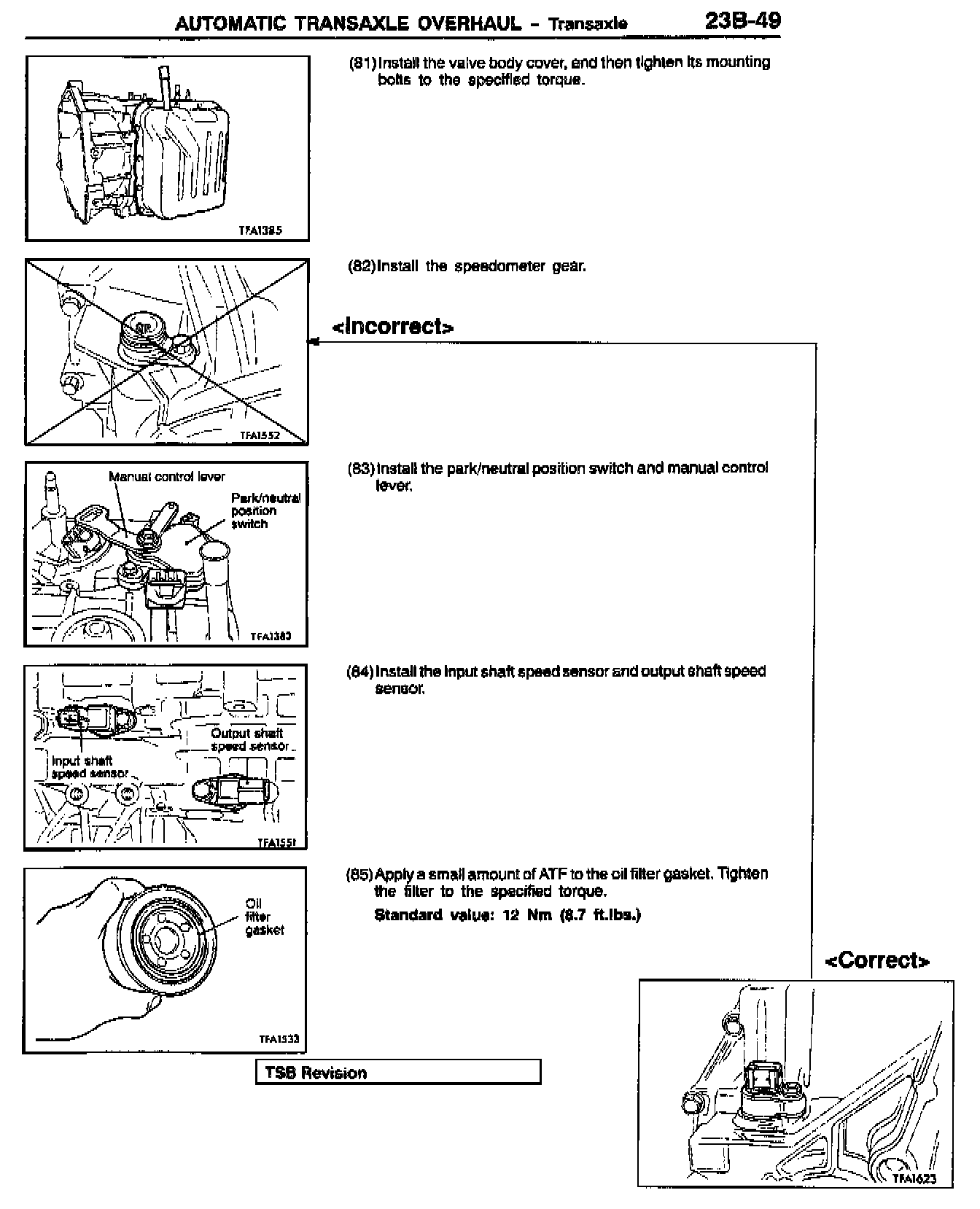

1997 and 1999 Mirage, Volume 1, page 23B-73; 1998 Mirage Volume 1, page 23B-74

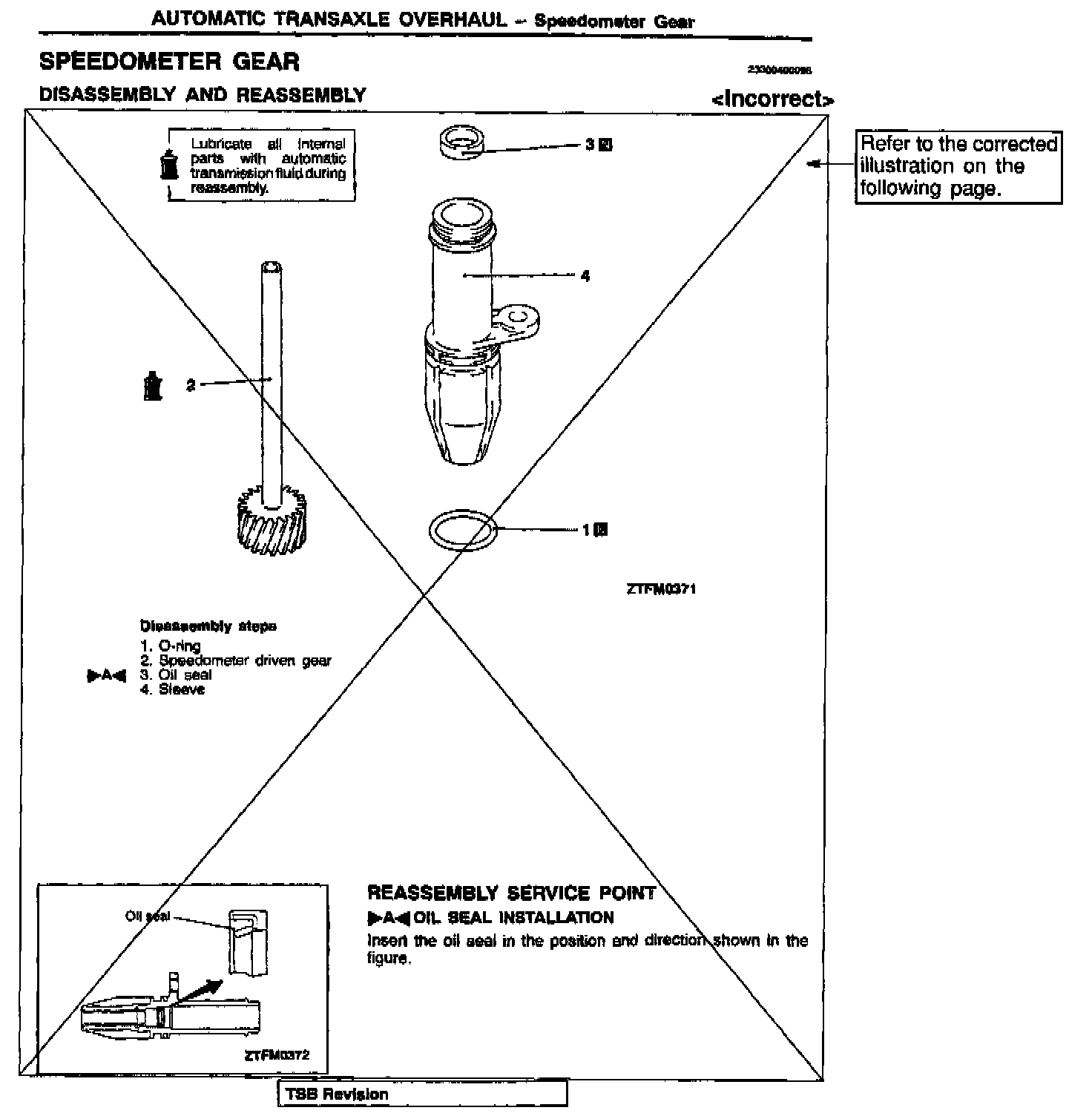

Add the corrected illustration to the previous page.
