Electrical Diagrams

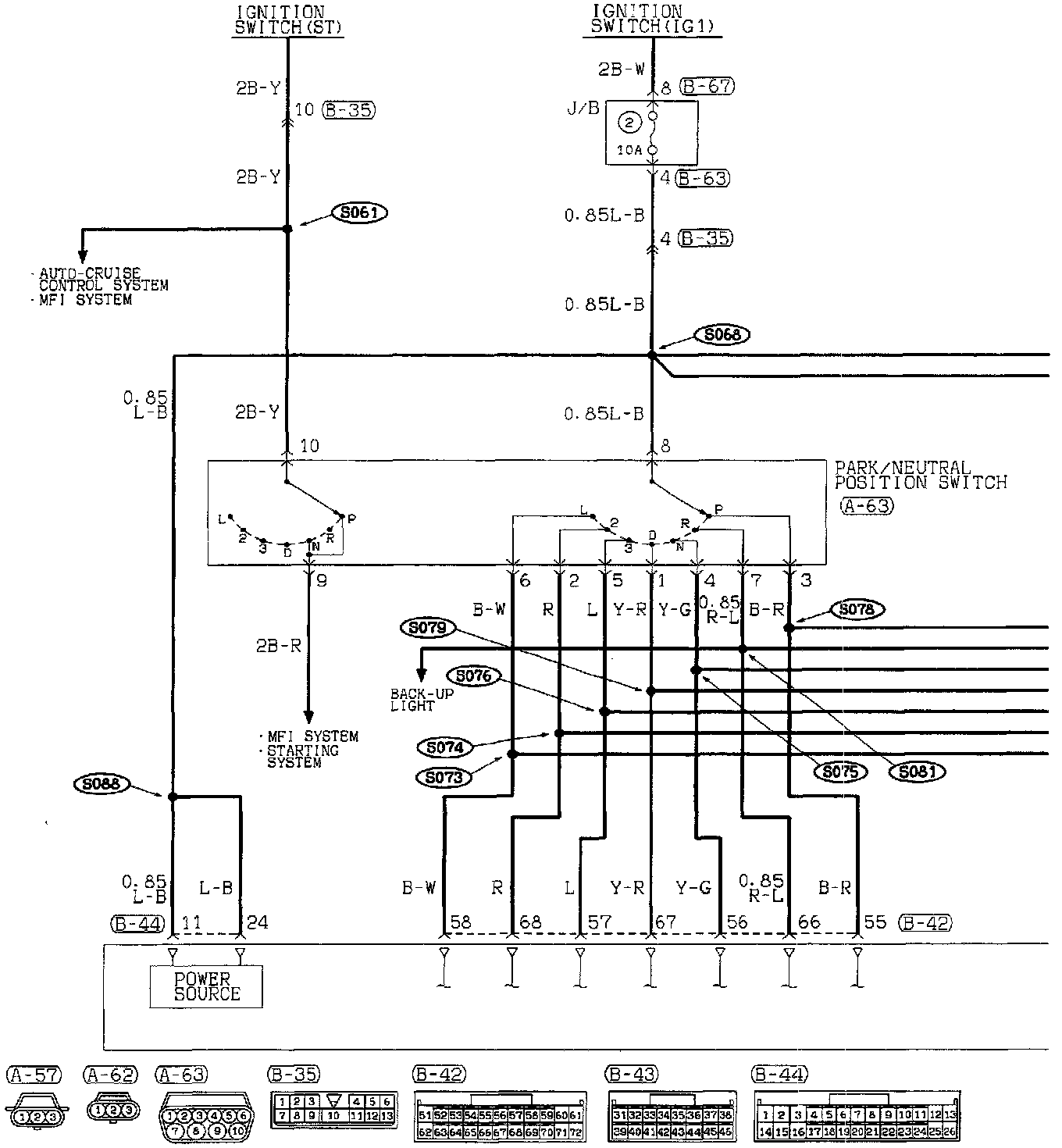

ELC 4-Speed Automatic Transaxle (Part 1 Of 8):

J/B
Park/Neutral Position Switch
Transaxle Control Module
- Power Source

ELC 4-Speed Automatic Transaxle (Part 2 Of 8):

Input and Output Shaft Speed Sensor
Transaxle Control Module

ELC 4-Speed Automatic Transaxle (Part 3 Of 8):

Dedicated Fuse
J/B
J/C (3 and 5)
Stop Light Switch
Transaxle Control Module
- Battery Back Up

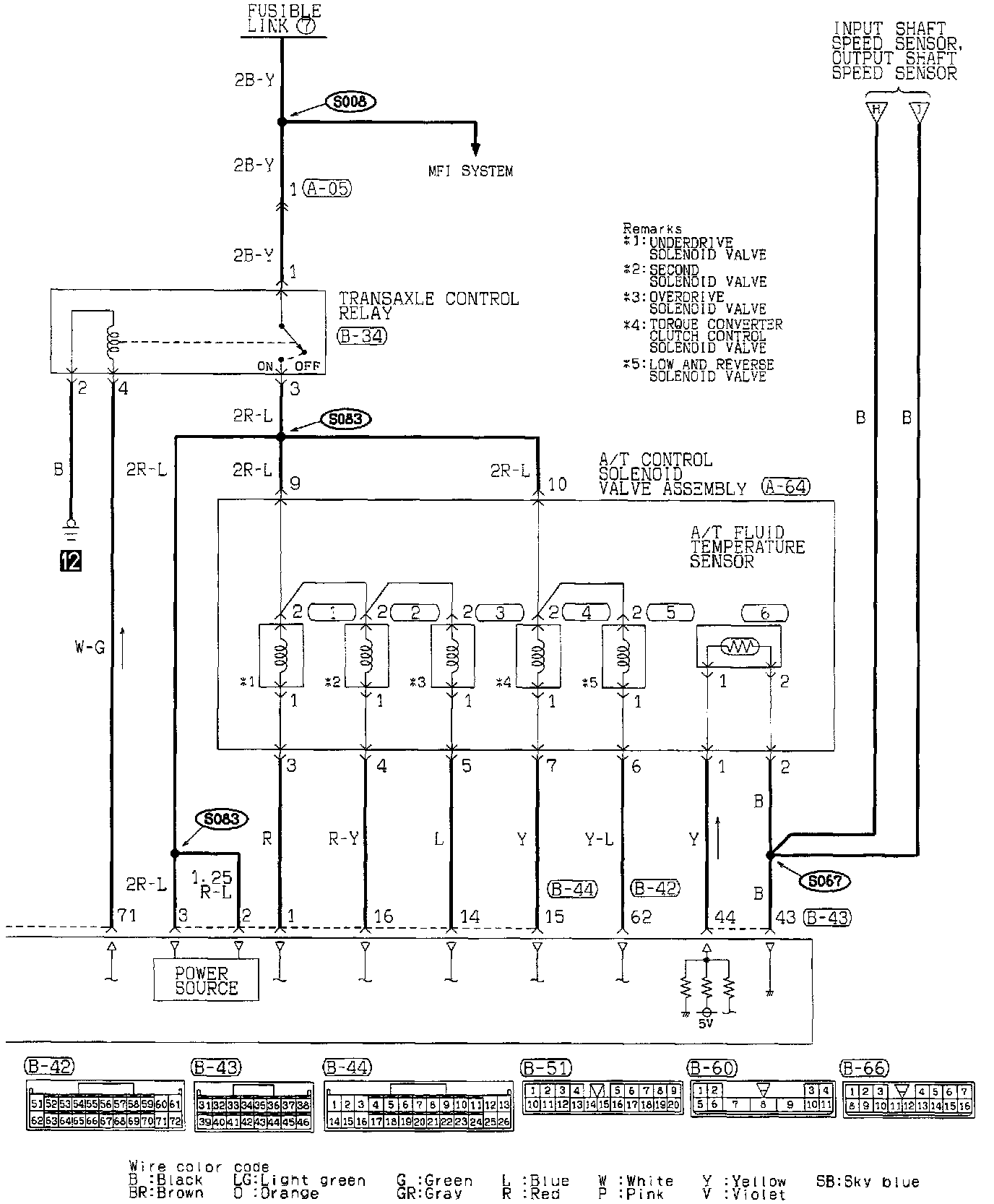

ELC 4-Speed Automatic Transaxle (Part 4 Of 8):

A/T Control Solenoid Valve Assembly
- A/T Fluid Temperature Sensor
Transaxle Control Relay
Transaxle Control Module
- Power Source

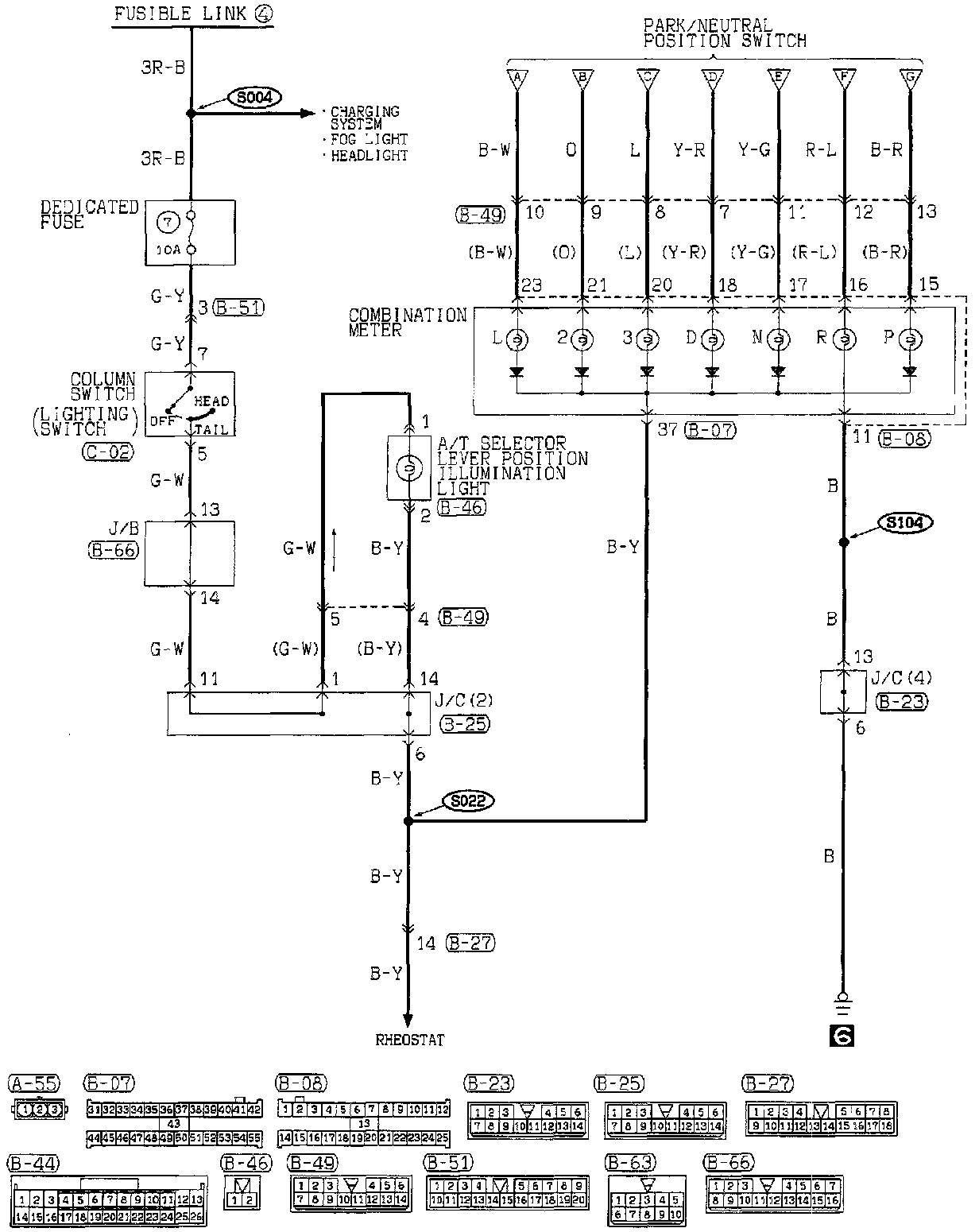

ELC 4-Speed Automatic Transaxle (Part 5 Of 8):

A/T Selector Lever Position Illumination Light
Combination Meter
Column Switch(Lighting Switch)
Dedicated Fuse
J/B
J/C (2 & 4)

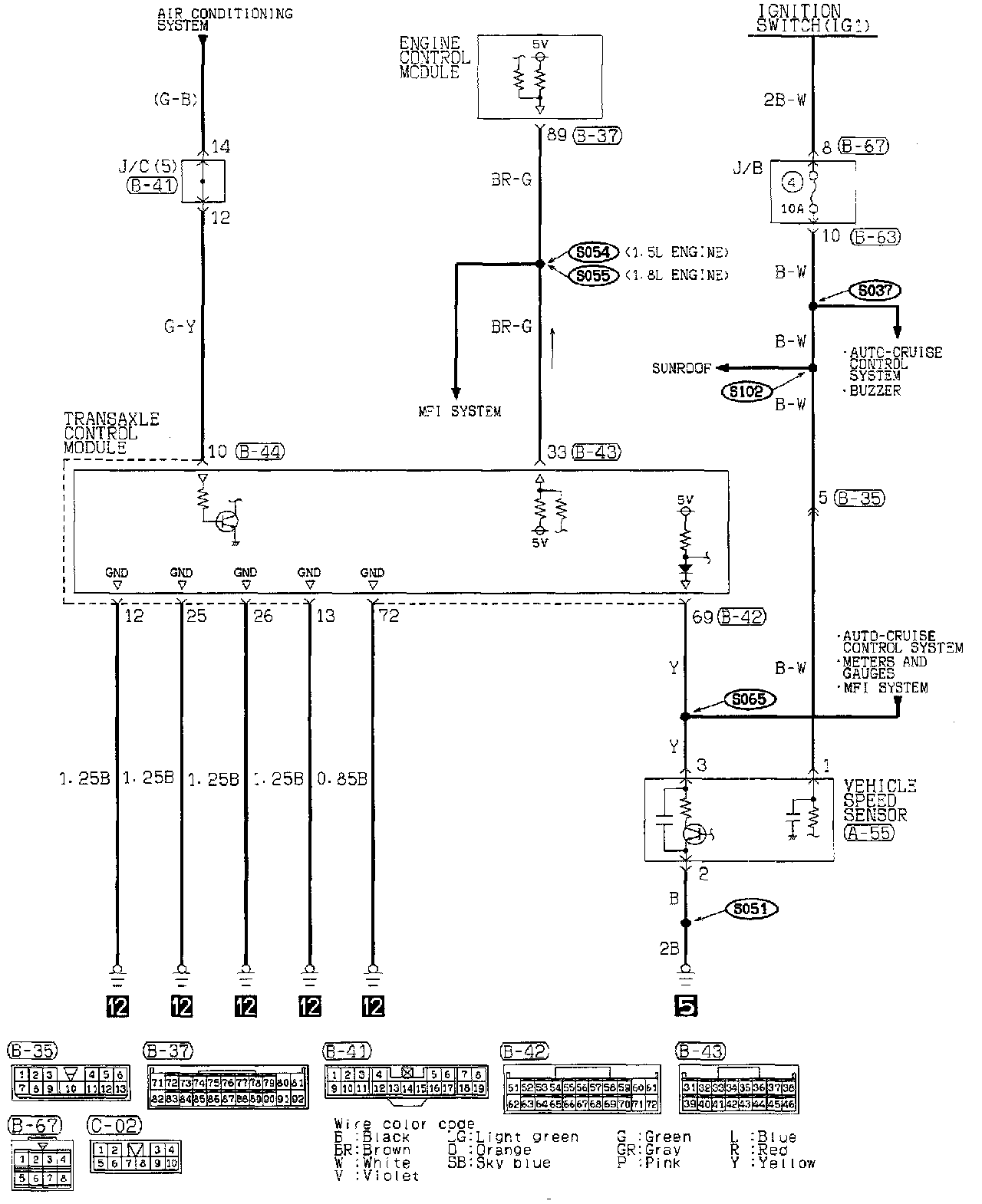

ELC 4-Speed Automatic Transaxle (Part 6 Of 8):

Engine Control Module
J/B
J/C (5)
Transaxle Control Module
Vehicle Speed Sensor

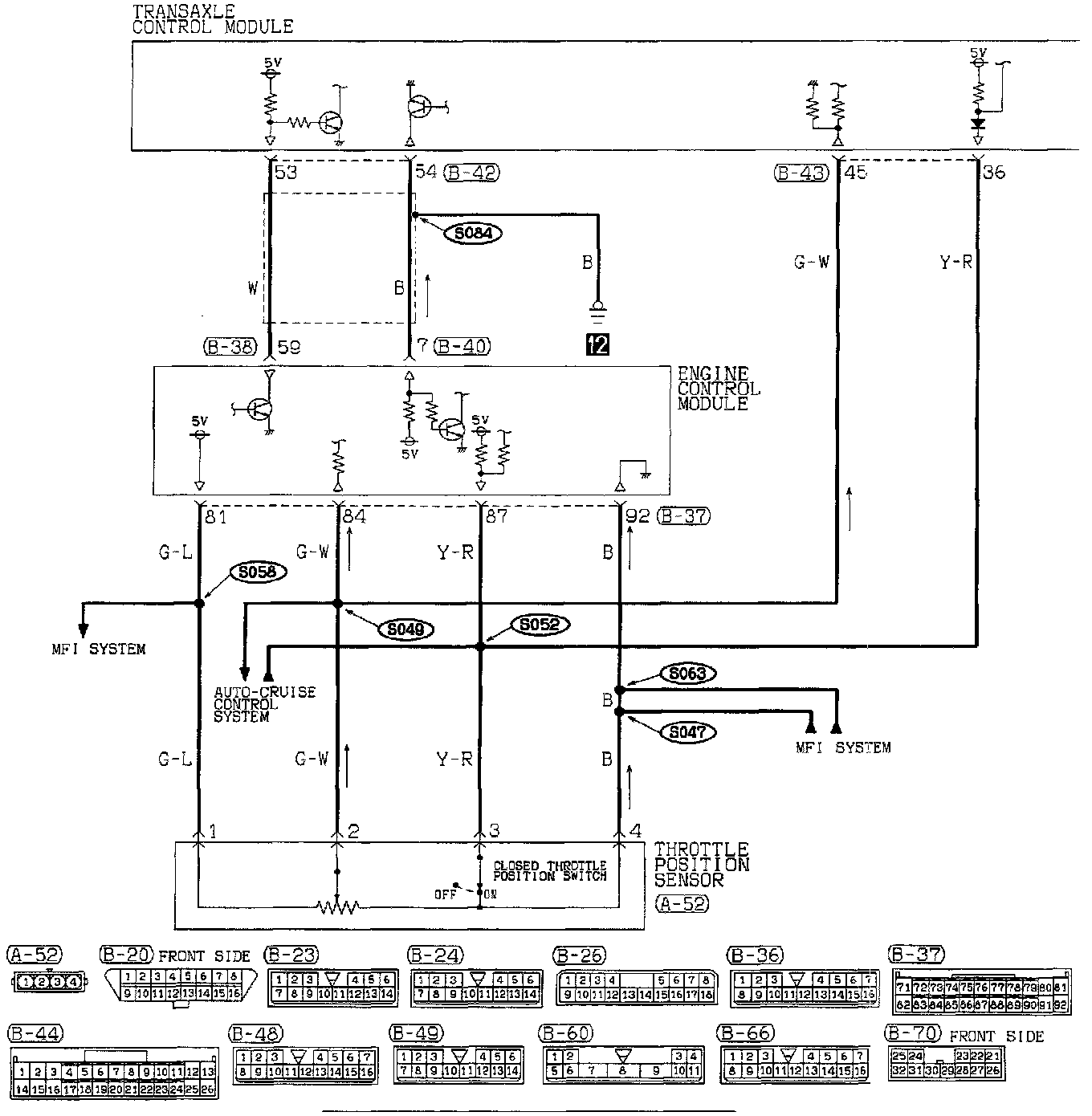

ELC 4-Speed Automatic Transaxle (Part 7 Of 8):

Engine Control Module
Throttle Position Sensor
Transaxle Control Module

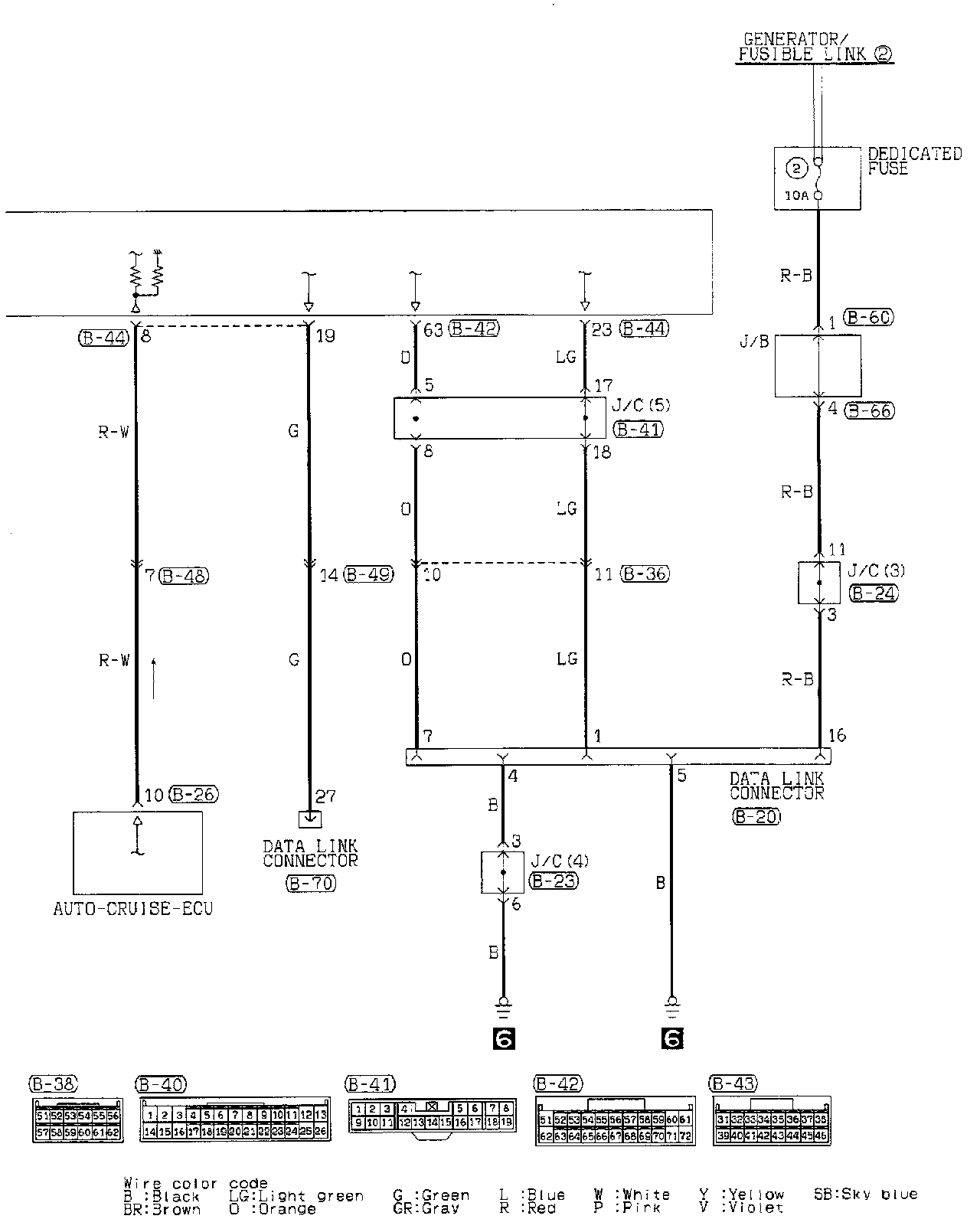

ELC 4-Speed Automatic Transaxle (Part 8 Of 8):

Auto-Cruise-ECU
Data Link Connector
Dedicated Fuse
J/B
J/C (3, 4 and 5)
Transaxle Control Module
