Mirage Coupe LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Locations
Ignition System: Locations

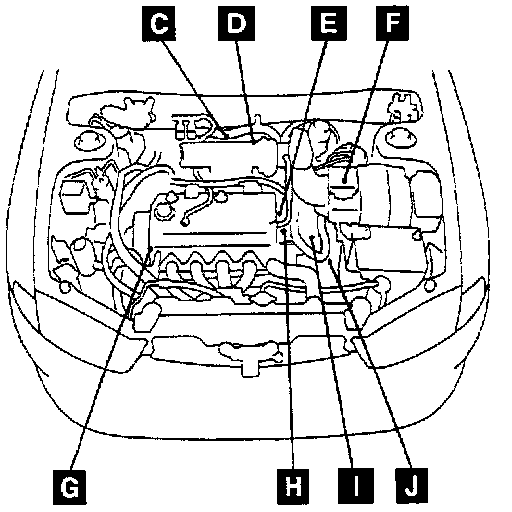

Locations C - J Overview:

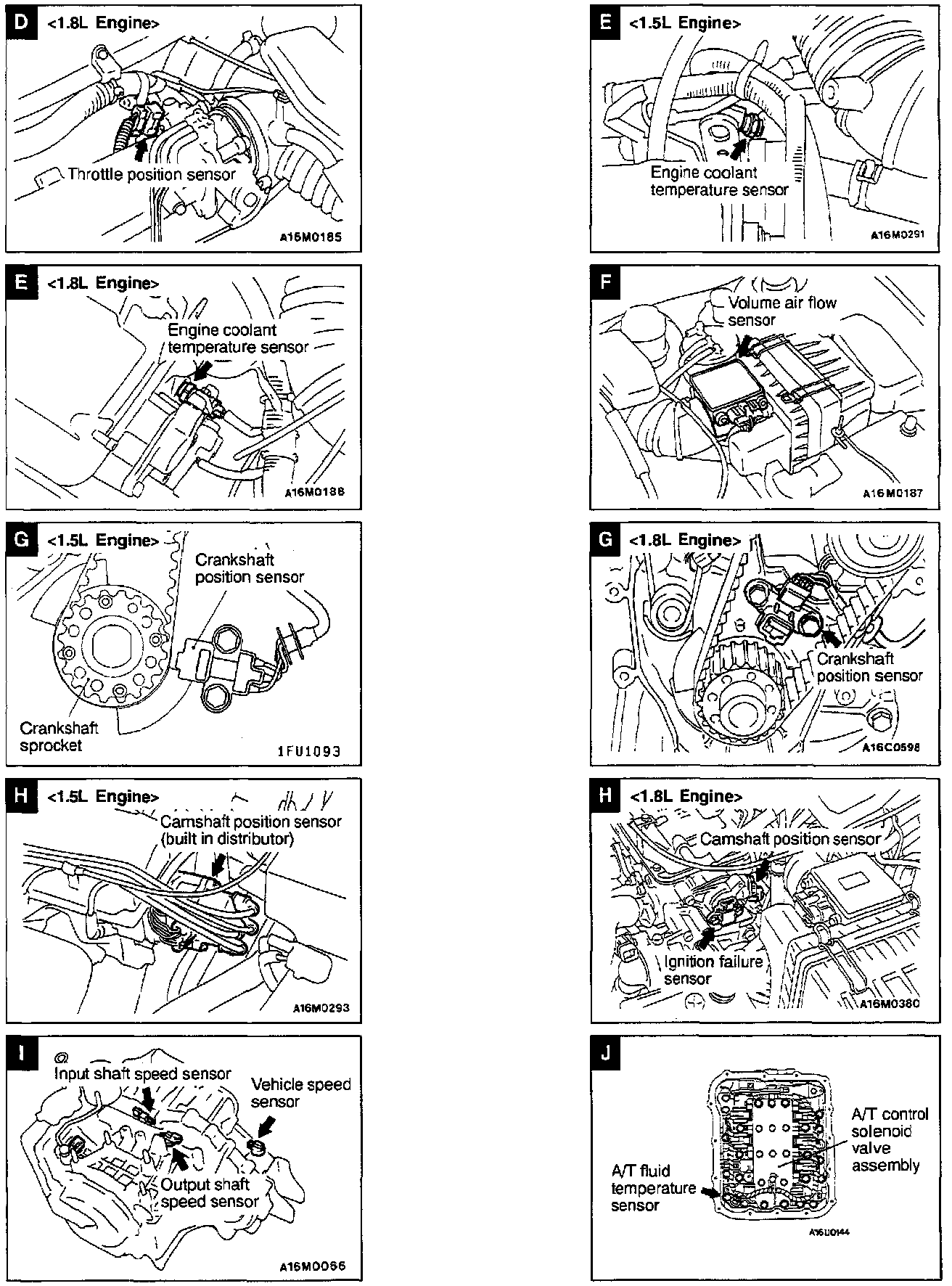

Component Locations D - J:
Name
Symbol
Ignition Failure Sensor
H
