Component Testing

CLOSED THROTTLE POSITION SENSOR TEST

1. Disconnect the throttle position sensor connector.

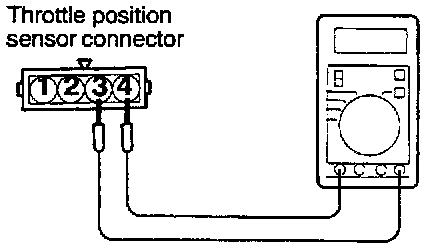

2. Check the continuity between the throttle position sensor connector side terminal 3 and terminal 4.




Normal condition

3. If out of specification, replace the throttle position sensor.

NOTE: After replacement, the closed throttle position switch and throttle position sensor should be adjusted.
