Oxygen Sensor - Revised Resistance Values
NO: TSB-98-13-010DATE: August, 1998
MODEL: 1998 Mirage
SUBJECT:
REVISED HEATED OXYGEN SENSOR RESISTANCE VALUES AND CHECKING PROCEDURES - SERVICE MANUAL REVISION
[TSB Revision TSB-98-13-010]
PURPOSE
This bulletin contains corrections to the heated oxygen sensor resistance values and checking procedures in the 1998 Mirage Volume 1 service manual.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1998 Mirage
AFFECTED SERVICE MANUALS
1998 Mirage Service Manual, Volume 1, Pages 13A-256, 13A-269
SERVICE MANUAL REVISIONS

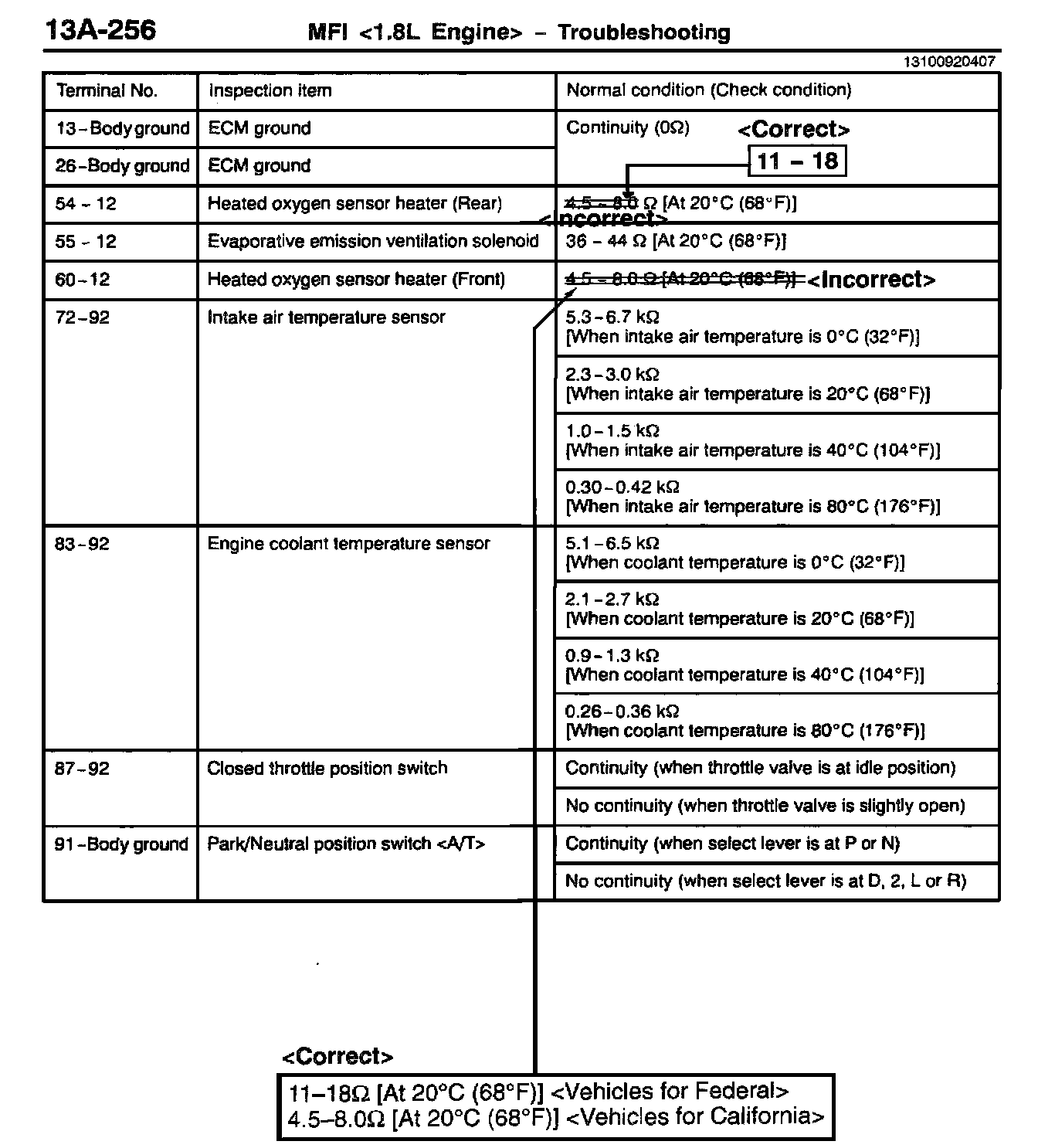

1998 Mirage Service Manual, Volume 1, Page 13A-256:
Change the heated oxygen sensor resistance values as shown:
1998 Mirage Service Manual, Volume 1, Page 13A-269:
Add a reference to this page indicating that the new heated oxygen sensor checking procedures on the following pages should be inserted here:
1998 Mirage Service Manual, Volume 1, Page 13A-269:

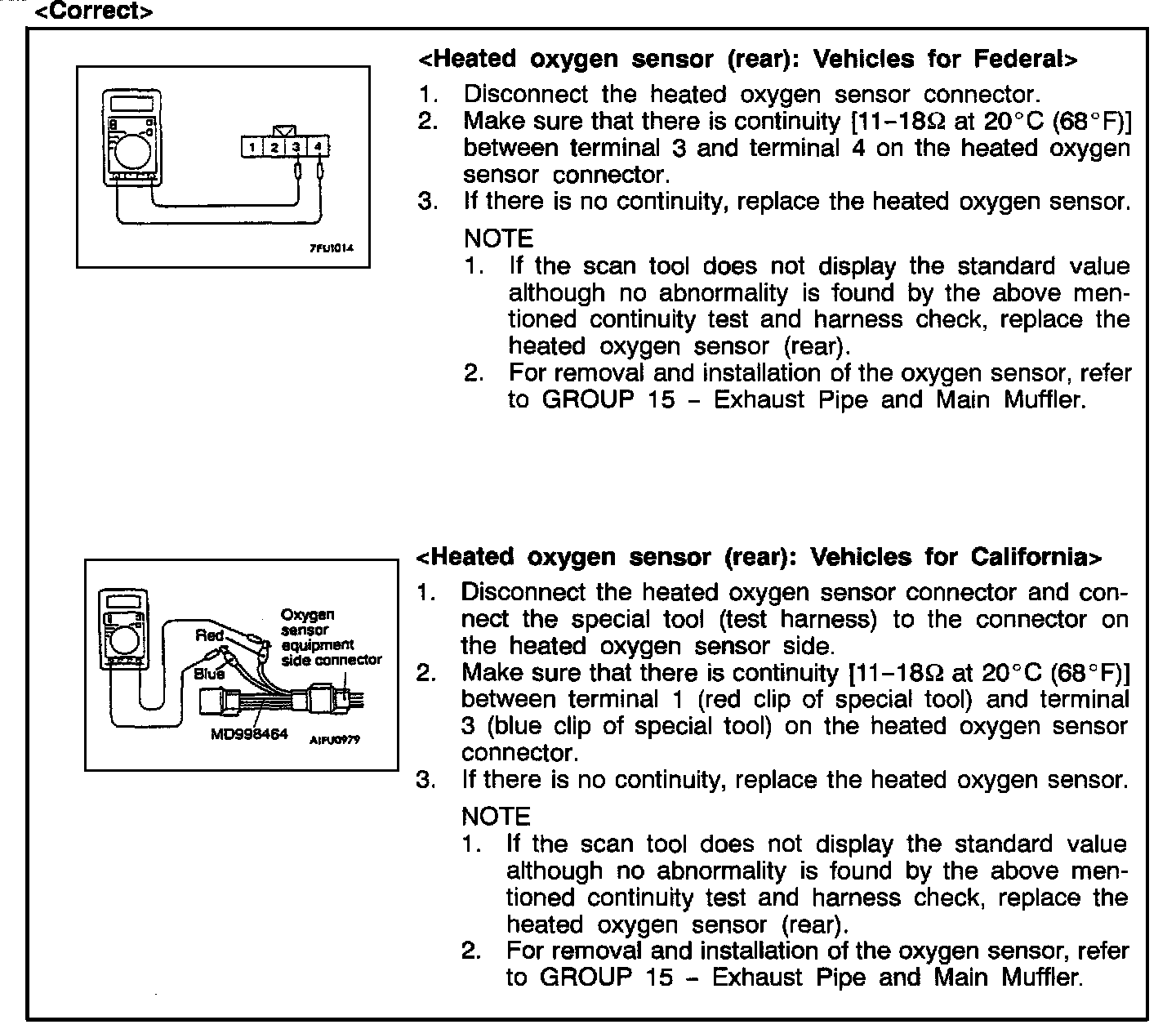

The following new heated oxygen sensor checking procedures along with those on the following page should be inserted at the indicated area on page 13A-269:
1998 Mirage Service Manual, Volume 1, Page 13A-269:

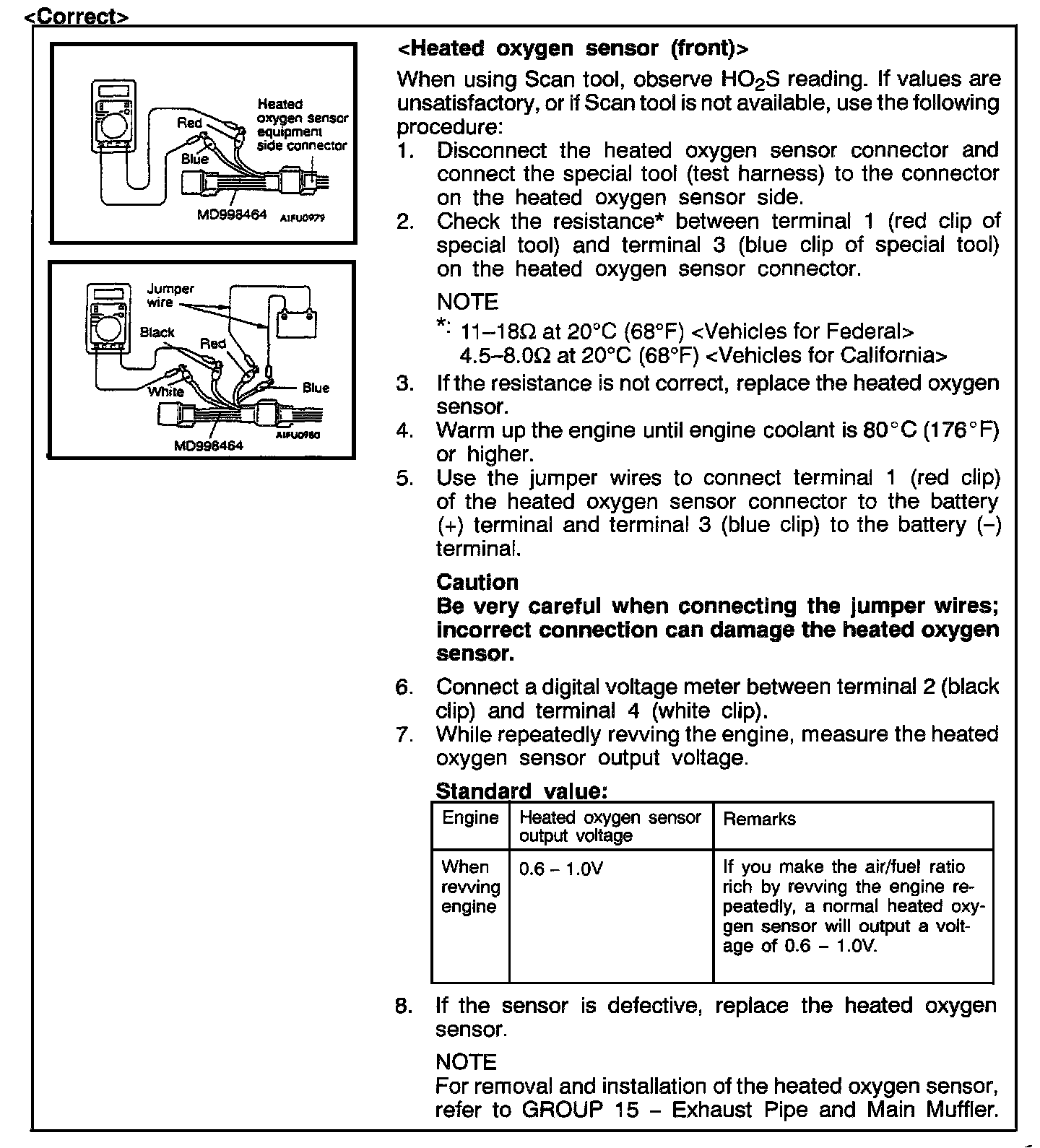

The following new heated oxygen sensor checking procedures along with those on the preceding page should be inserted at the indicated area on page 13A-269:
