Ignition Failure Sensor: Testing and Inspection

IGNITION FAILURE SENSOR TESTING

NOTE: An analog-type ohmmeter should be used.

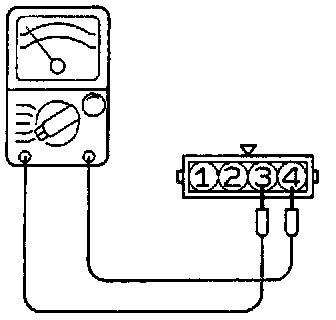

Check that the resistance between terminals 3 and 4 is at the standard value.

Standard value: 0.1 ohms or less
