DTC P0340 - Revised Diagnostic Procedures
No: TSB-98-13-009DATE: August, 1998
MODEL: 1997-98 Mirage
SUBJECT:
REVISED TROUBLESHOOTING PROCEDURES FOR CODE NO. P0340
(CAMSHAFT POSITION SENSOR MALFUNCTION) - SERVICE MANUAL REVISION
[TSB Revision TSB-98-13-009]
PURPOSE
This bulletin contains corrections to the "Code No. P0340 Camshaft Position Sensor Circuit Malfunction" troubleshooting procedures in the 1997-98 Mirage Volume 1 service manuals.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1997-98 Mirage
AFFECTED SERVICE MANUALS
1997 Mirage Service Manual, Volume 1, Pages 13A-40, 13A-165
1998 Mirage Service Manual, Volume 1, Pages 13A-43, 13A-182
SERVICE MANUAL REVISIONS

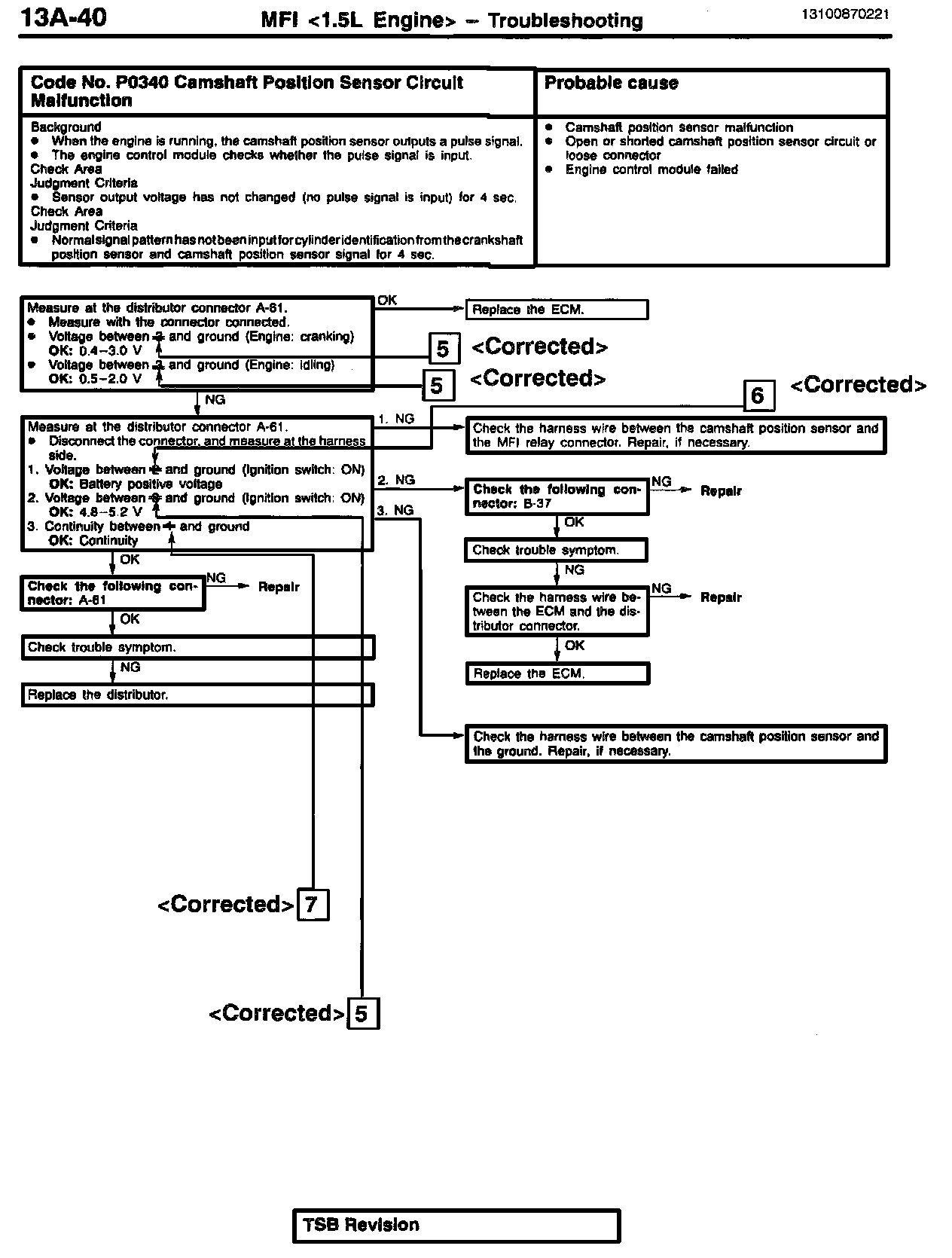

1997 Mirage Service Manual, Volume 1, Page 13A-40:
Correct the A-61 pin numbers in the Code No.P0340 troubleshooting procedures as shown:

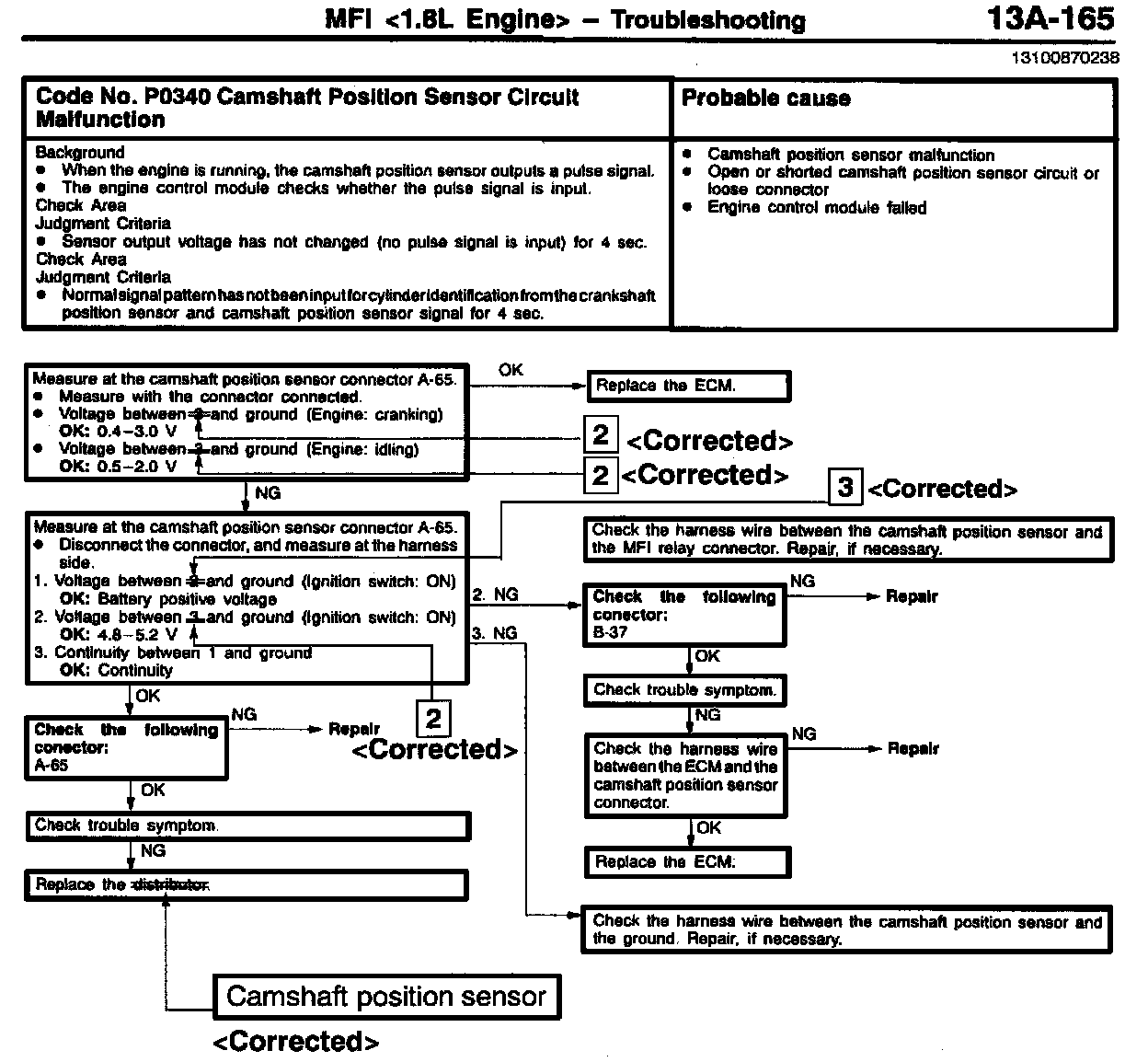

1997 Mirage Service Manual, Volume 1, Page 13A-165:
Correct the Code No. P0340 troubleshooting procedures as shown:

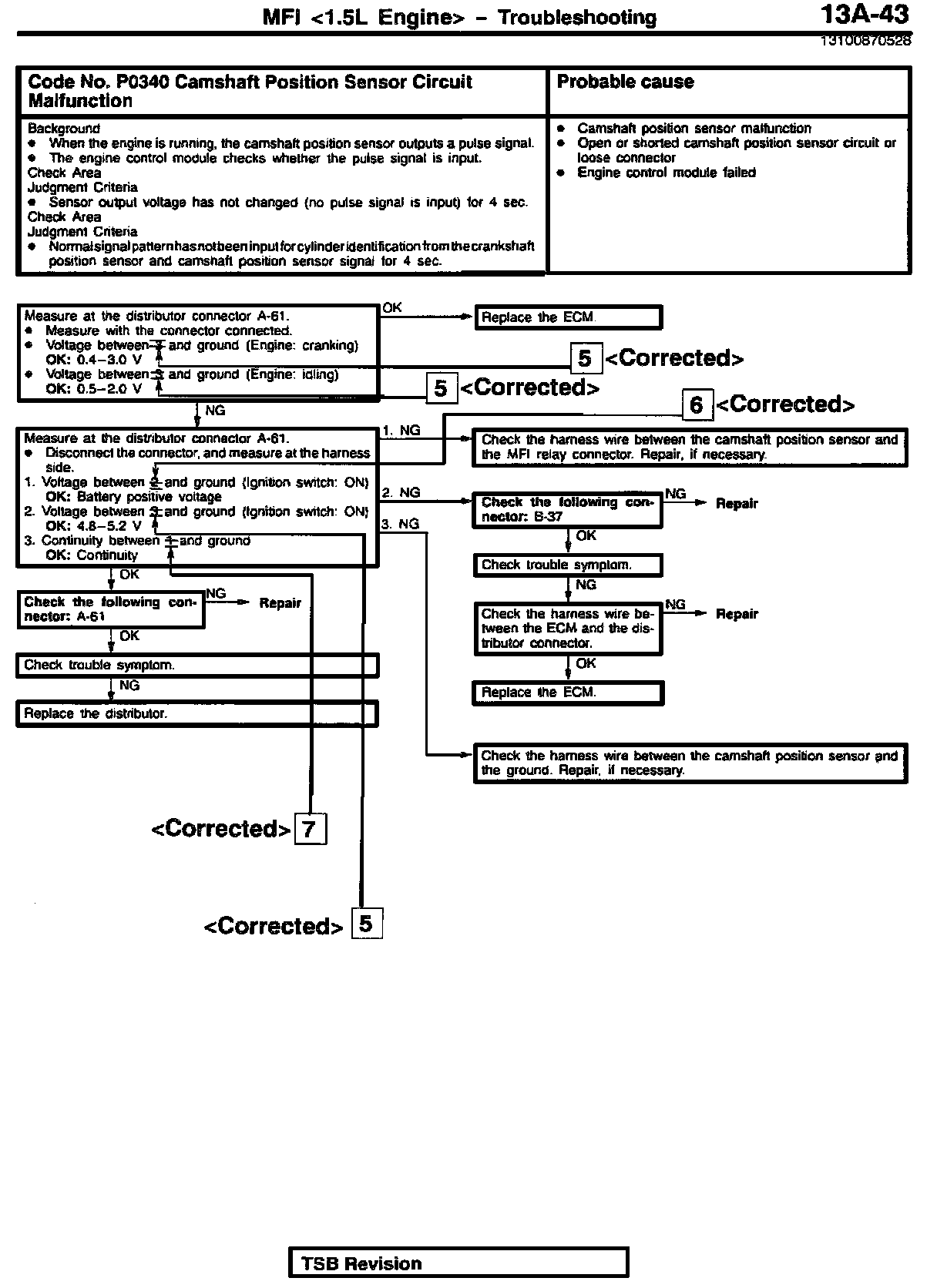

1998 Mirage Service Manual, Volume 1, Page 13A-43:
Correct the A-61 pin numbers in the Code No P0340 troubleshooting
procedures as shown:

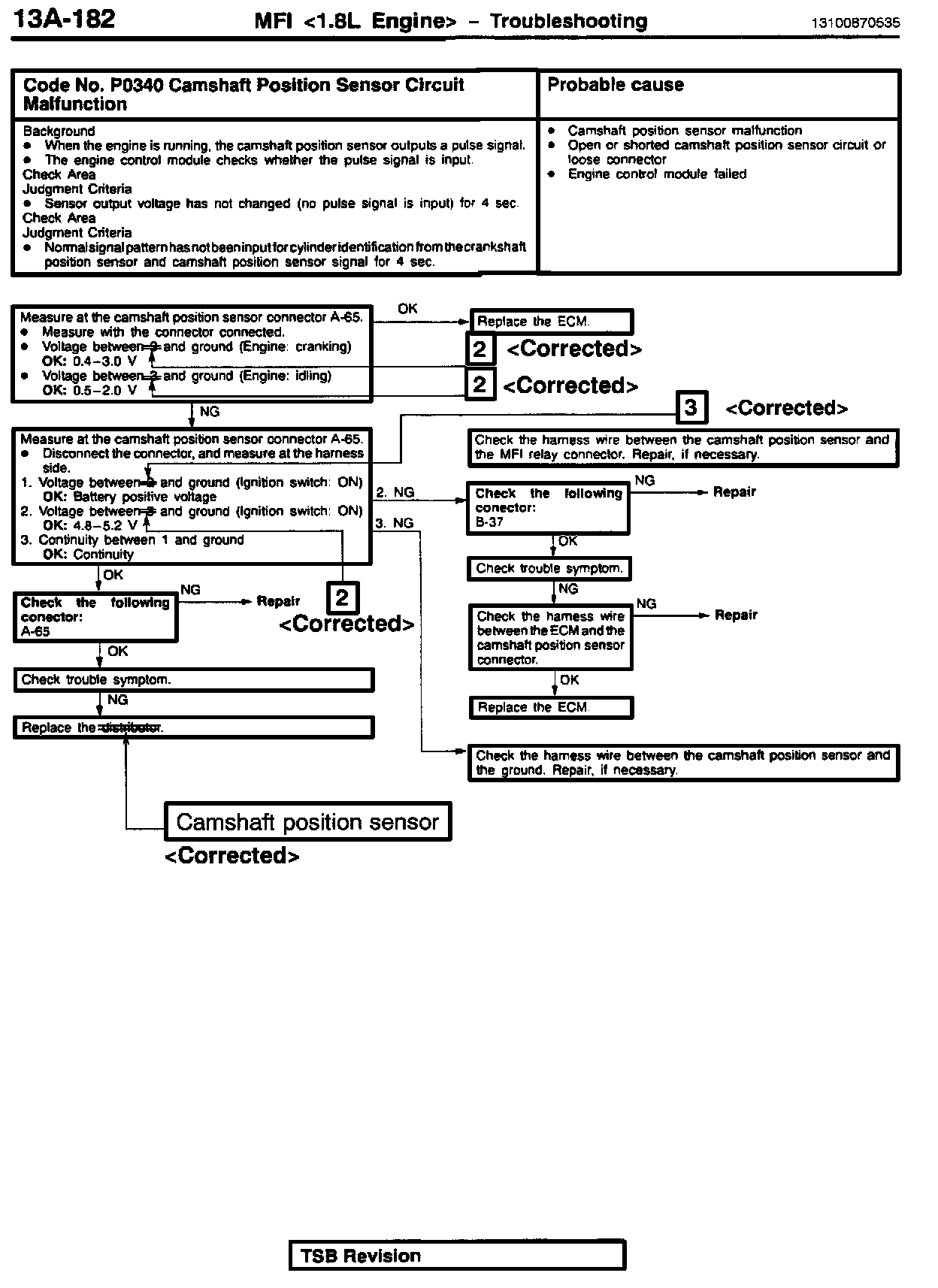

1998 Mirage Service Manual, Volume 1, Page 13A-182:
Correct the Code No. P0340 troubleshooting procedures as shown:
