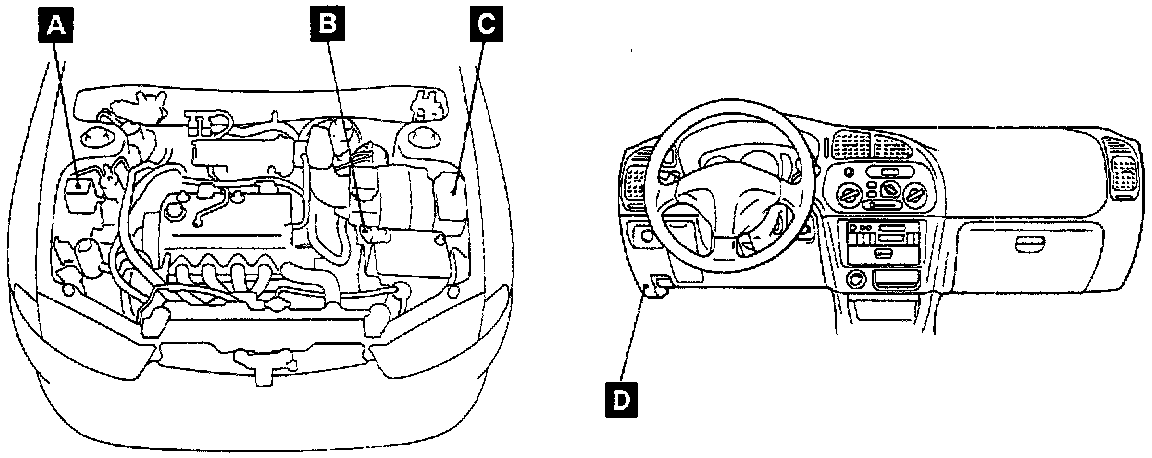

Fuse: Locations

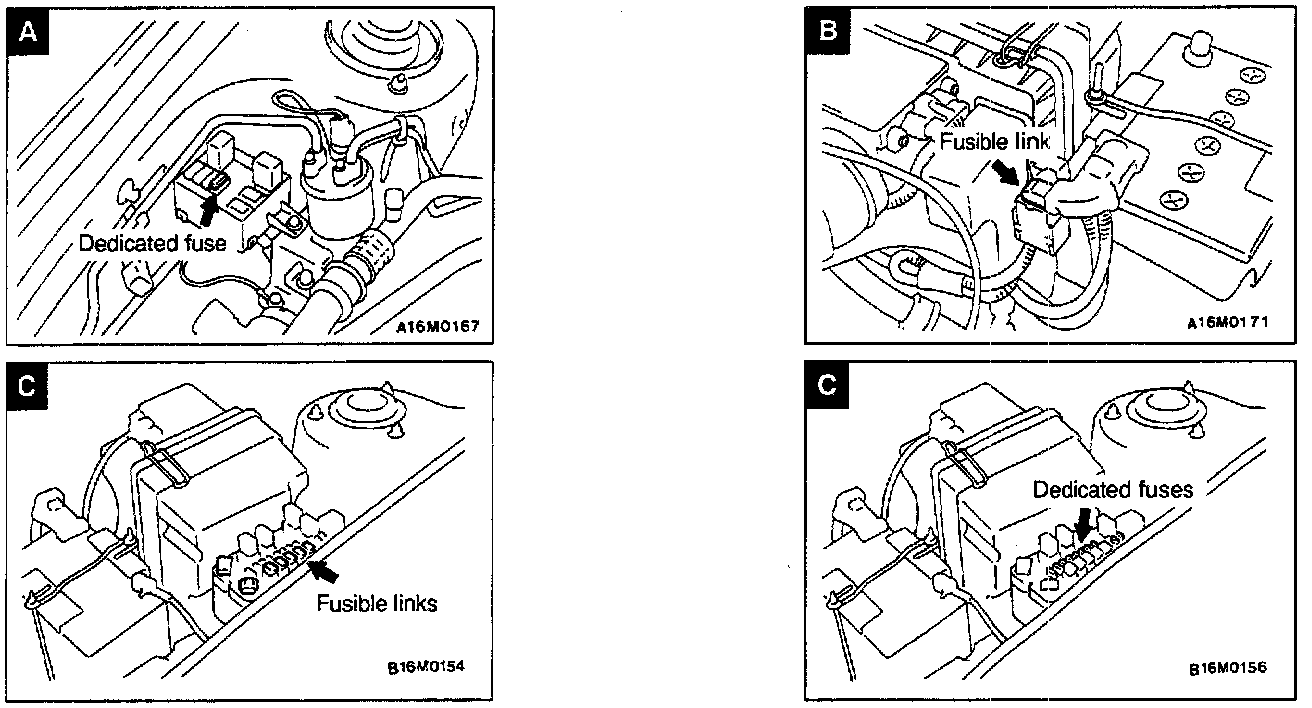

Locations A - C:

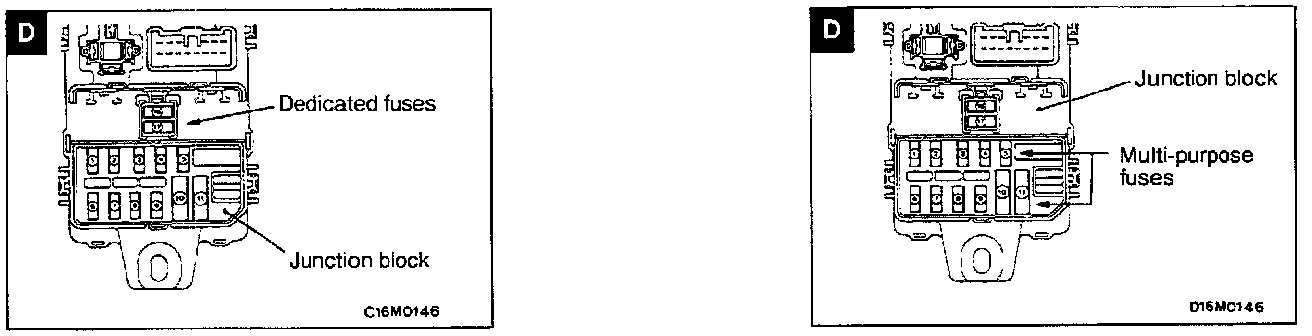

Location D:

Name Symbol
Dedicated Fuses (No. 1 - 11) C
Dedicated Fuses (No. 12) A
Dedicated Fuses (No. 16) D
Fusible Links (No. 1 - 7) C
Fusible Link (No. 8) B
Multi-Purpose Fuses D
