Power Steering Line/Hose: Service and Repair

REMOVAL
1. Drain power steering fluid.

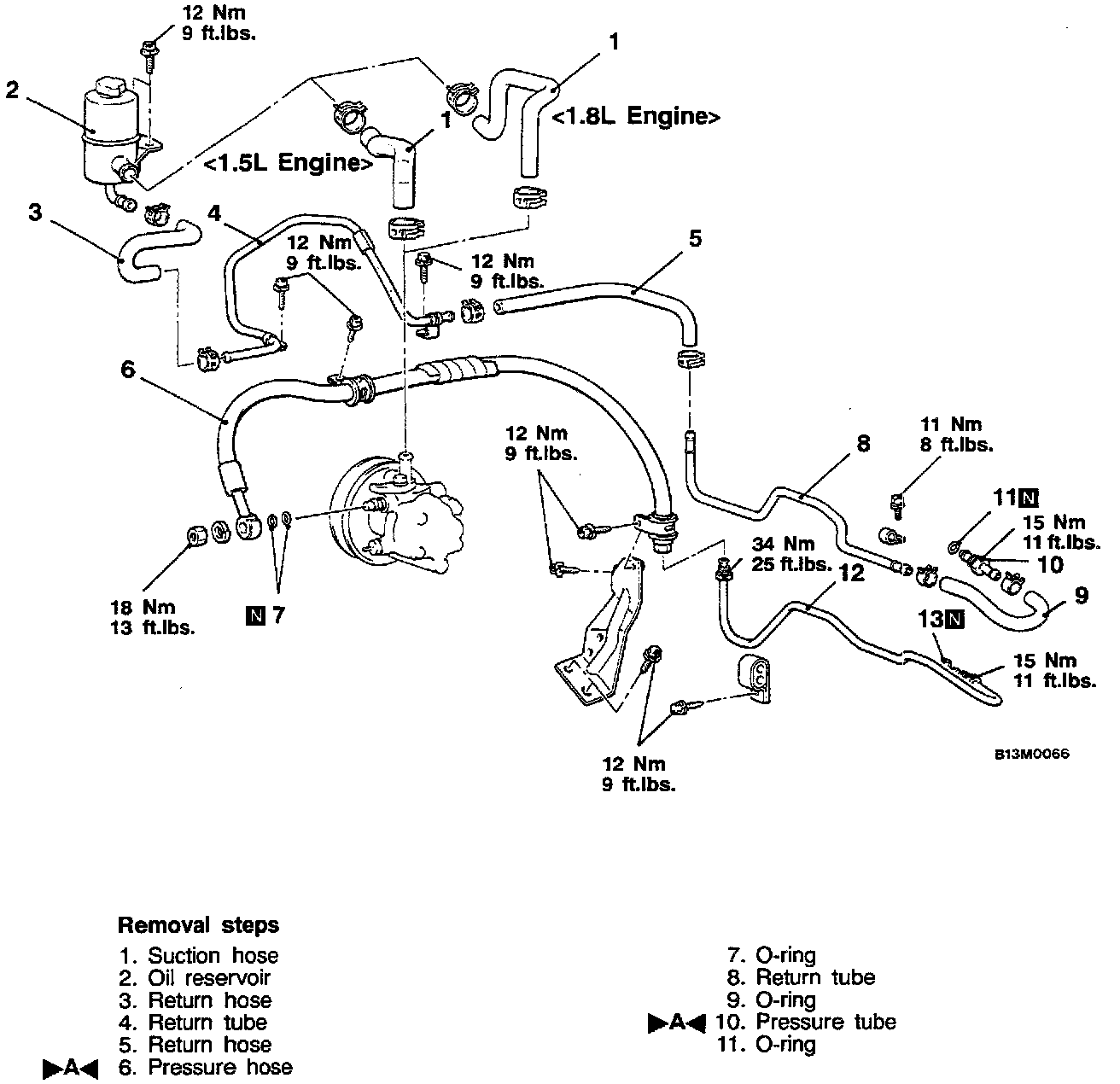

2. Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points
]A[ Pressure Hose/Pressure Tube Installation (6 & 10).

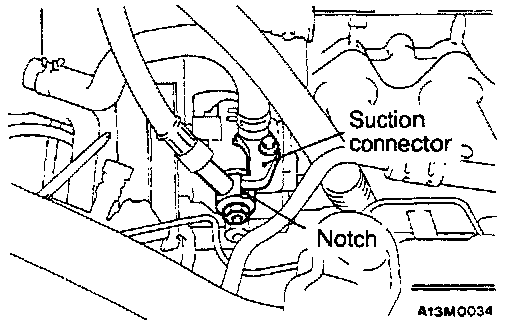

1. Connect the pressure hose so that its notch part contacts the suction connector.

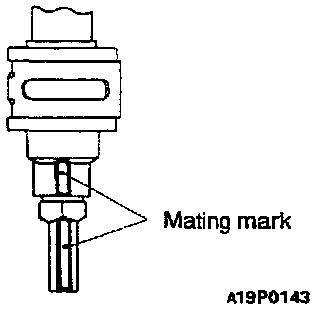

2. Align the marks on the pressure hose and pressure tube, and install the pressure hose.

Post-installation Operation
1. Fill power steering fluid.
2. Power steering fluid line bleeding.
