2-Door Models

Removal

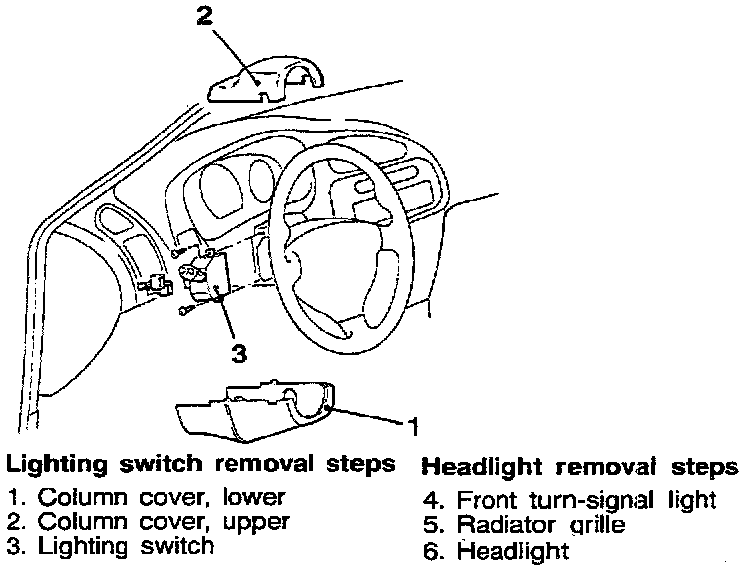

To remove follow the steps listed in the image and note the following.





Step 4: Front turn-signal light removal
Pry a screwdriver into the direction shown to move the front turn-signal light forwards.





Step 6: Headlight removal
1. Pull the bumper towards you.
2. Pull the inside of headlight towards you.
3. Pull the outside of headlight towards you.
4. Remove the headlight.

Installation
To install reverse the steps listed in the image and note the following.





Step 6: Headlight Installation

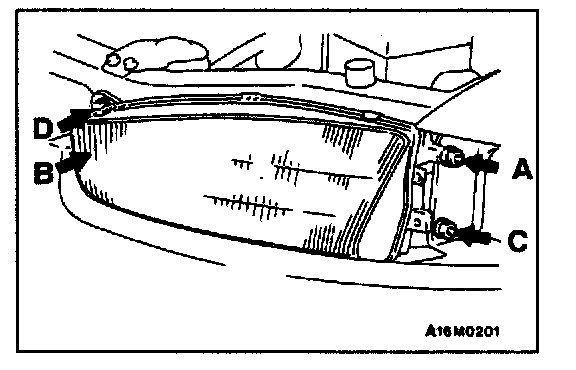

Tighten the mounting bolts and nuts in A, B, C, D order.

NOTE: The bolt marked by "B" applies to 4-door models only.
