Bulb Replacement

1. Remove the fog light bezel.
2. Remove the fog light unit fixing screw, and pull the light unit to remove it.

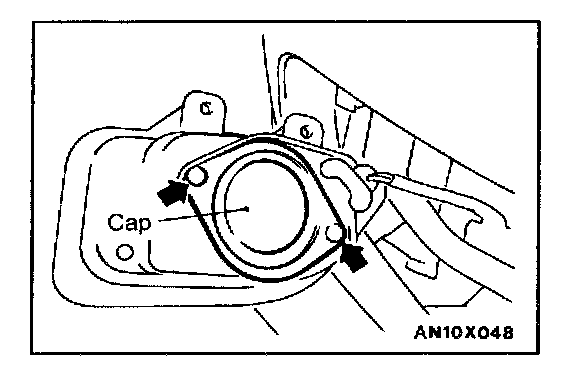

3. Remove the cap.

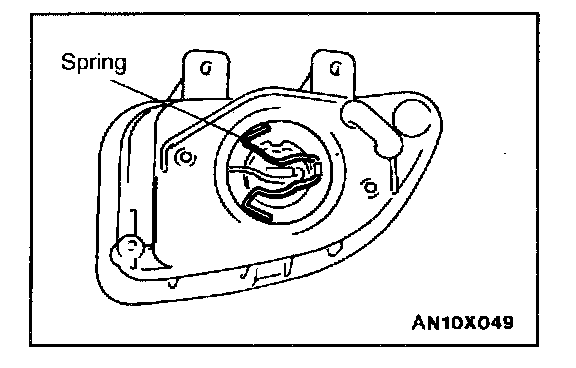

4. Unhook the spring which secures the bulb and then remove the bulb.


CAUTION: Do not touch the surface of the bulb with hands or dirty gloves. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.
