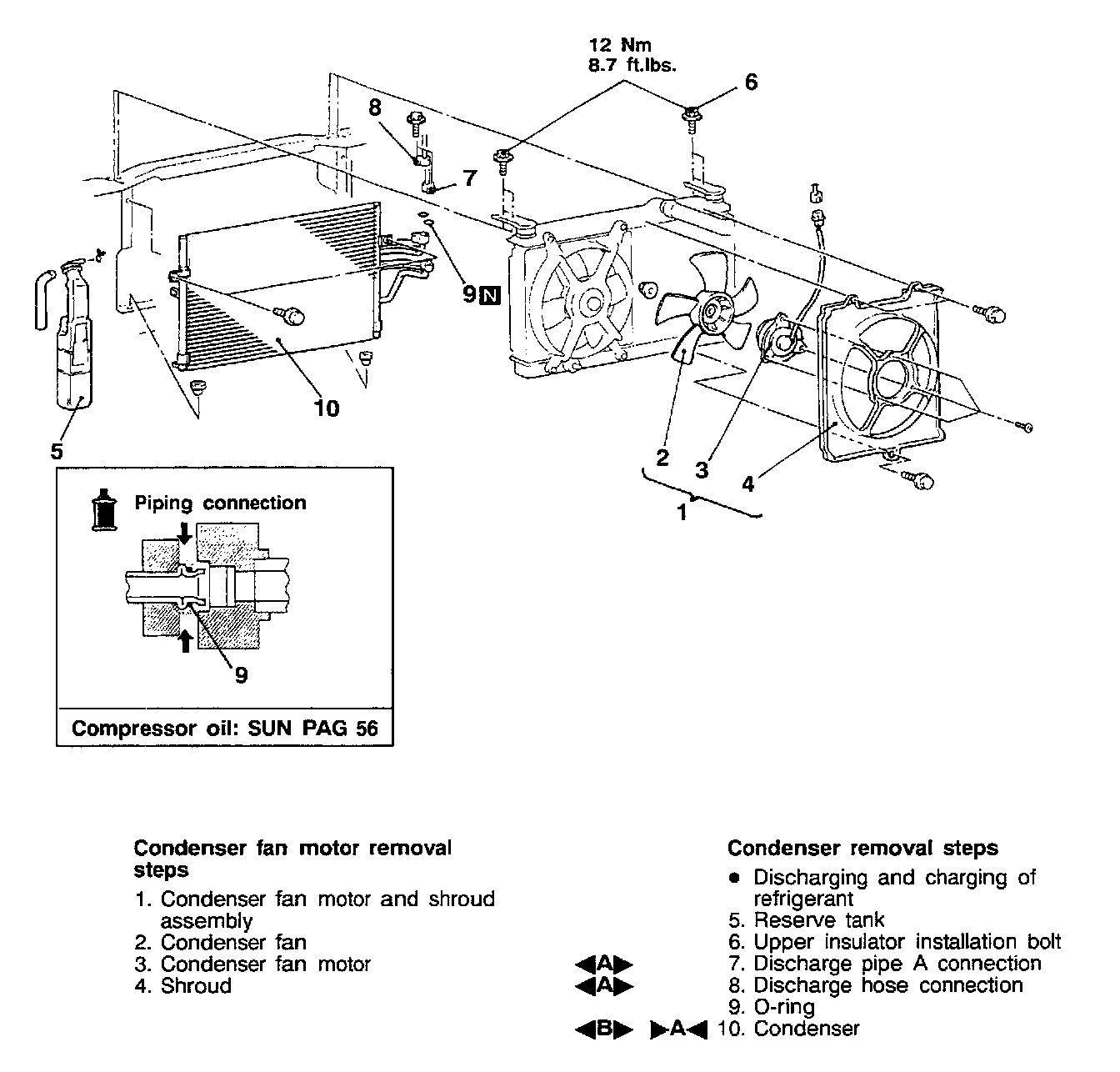

Condenser Fan: Service and Repair

REMOVAL SERVICE POINTS

A DISCHARGE PIPE "A" /DISCHARGE HOSE DISCONNECTION

Plug the disconnected pipe, hose and the condenser nipple not to let foreign matter get into them.

CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily.




B CONDENSER REMOVAL

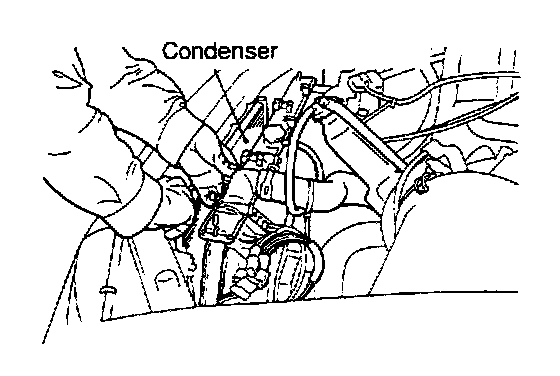

Move the radiator to the engine side and then lift up the condenser to remove it.

INSTALLATION SERVICE POINT

A CONDENSER INSTALLATION

When replacing the condenser, refill it with a specified amount of compressor oil and install it. (to the vehicle).

Compressor oil: SUN PAG 56
Quantity: 15 Cubic.cm (0.5 fl.oz.)
