Compressor Clutch: Service and Repair

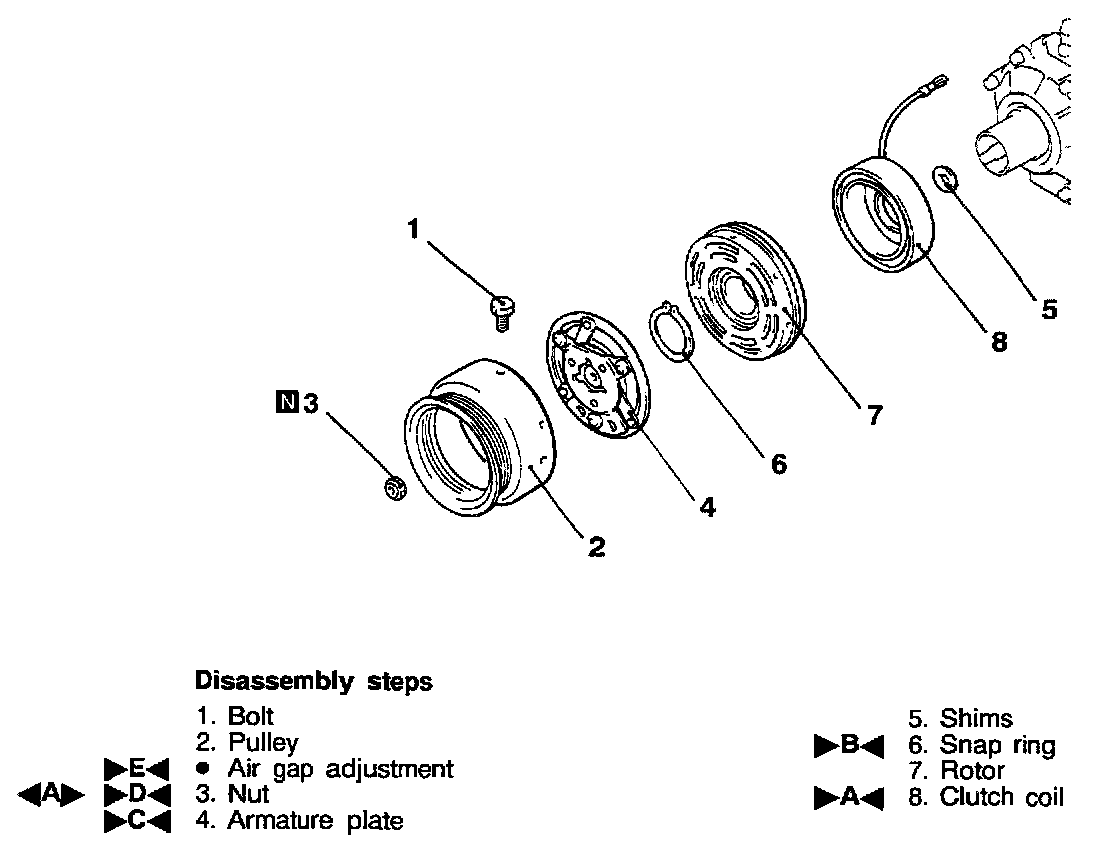

DISASSEMBLY SERVICE POINT

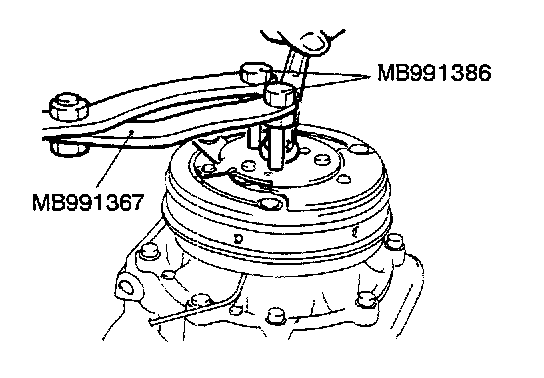

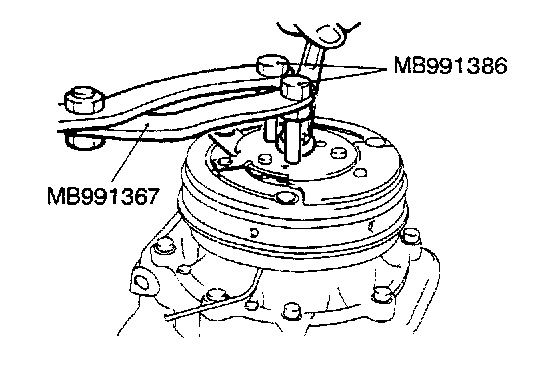

A NUT REMOVAL

REASSEMBLY SERVICE POINTS

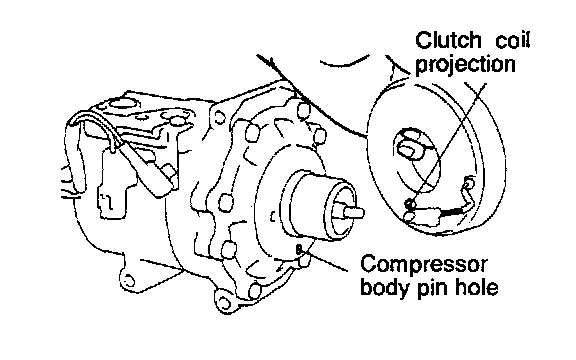

A CLUTCH COIL INSTALLATION

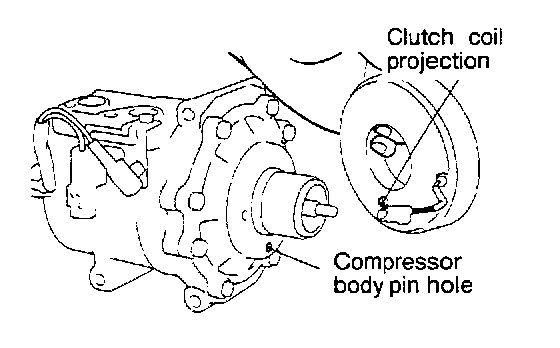

When installing the clutch coil to the A/C compressor body, install so that the pin hole of the A/C compressor body and the clutch coil projection are aligned.

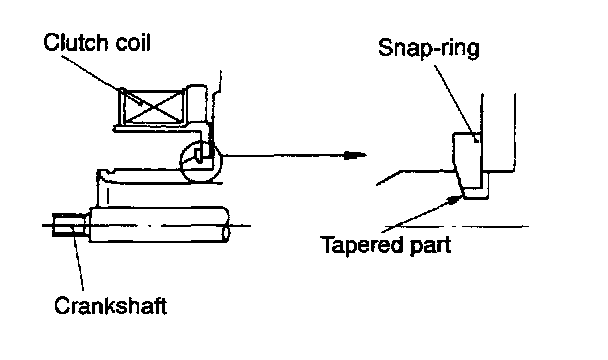

B SNAP RING INSTALLATION

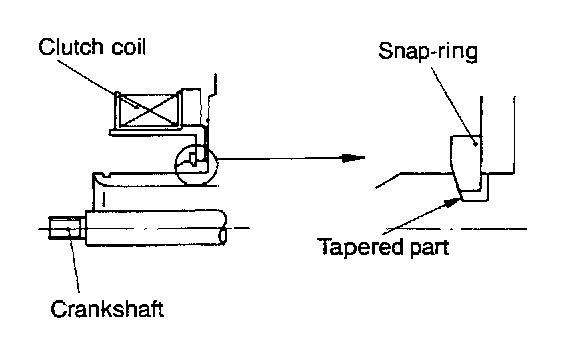

Install the snap ring so that the tapered surface is to the outside.

C ARMATURE PLATE INSTALLATION

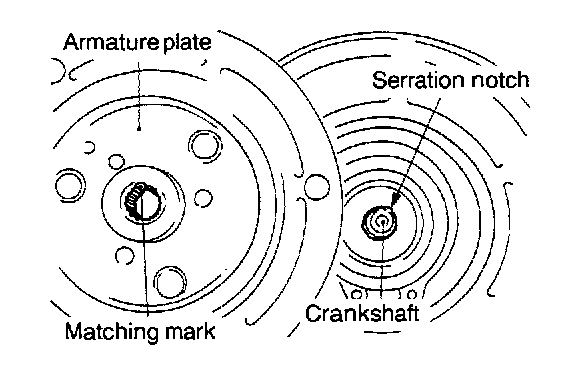

Align the mating mark of the crankshaft spline and the mating mark of the armature plate, and then fit them together.

D NUT INSTALLATION

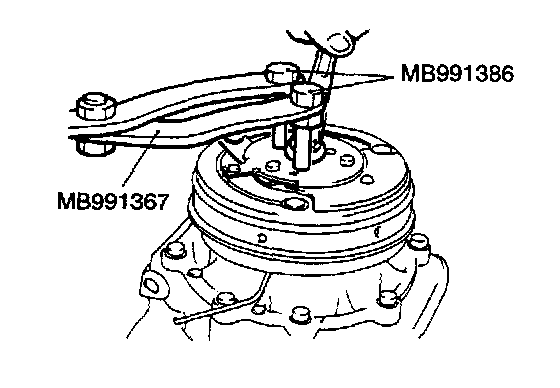

Use the special tool to hold the magnet clutch, and tighten the nut in the same manner as removal.

E AIR GAP ADJUSTMENT

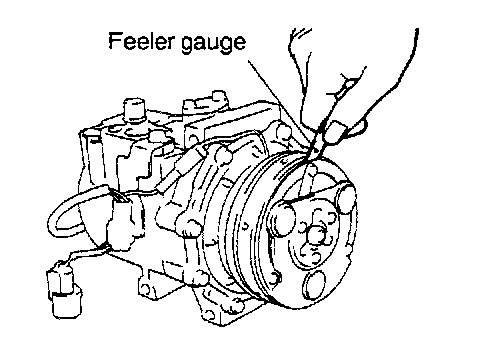

Check whether or not the air gap of the clutch is within the standard value.

Standard value: 0.40 - 0.65 mm (0.016 - 0.026 in.)

NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
