Mirage Coupe LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
Multiple Junction Connector

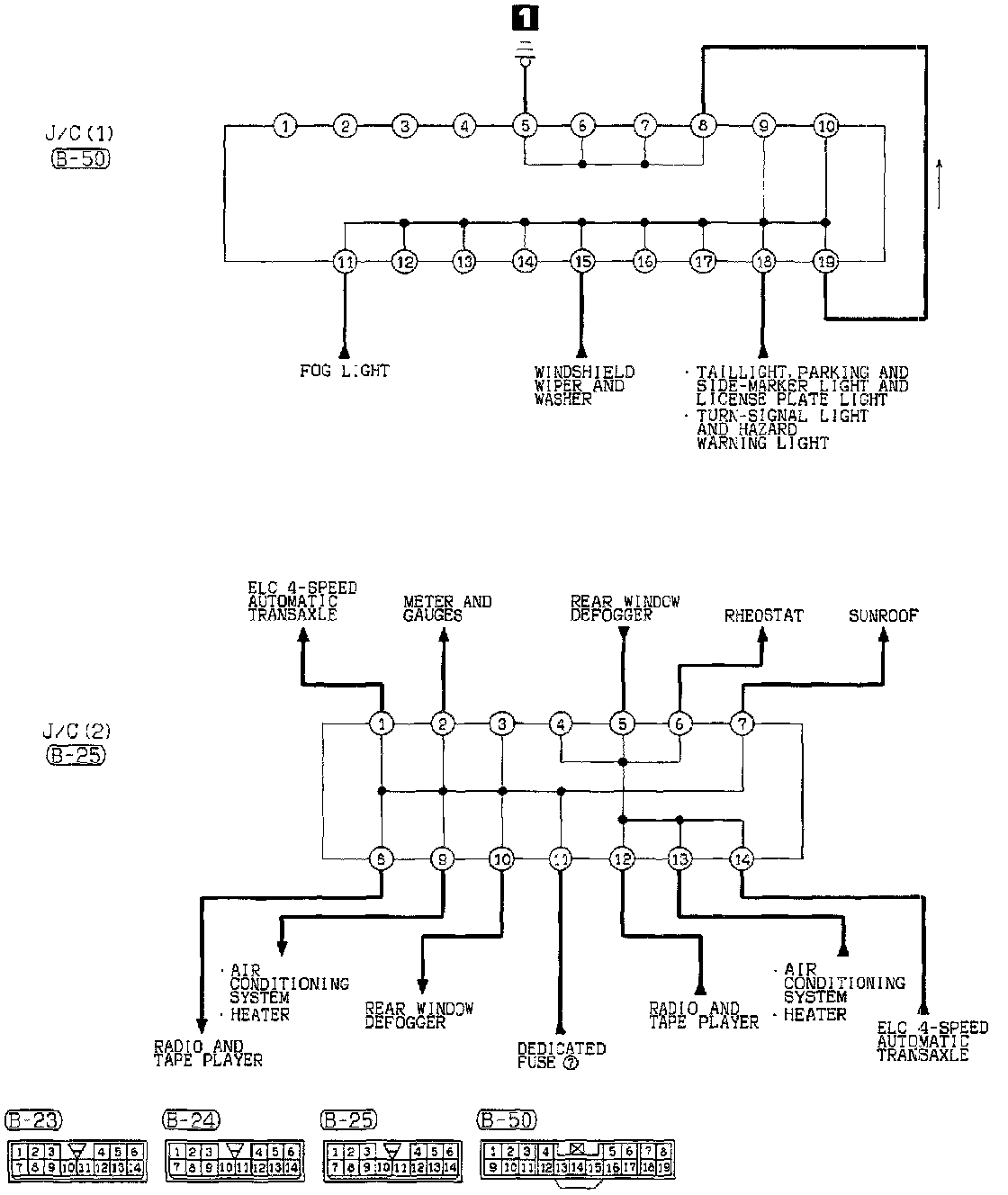

J/C 1 & 2:

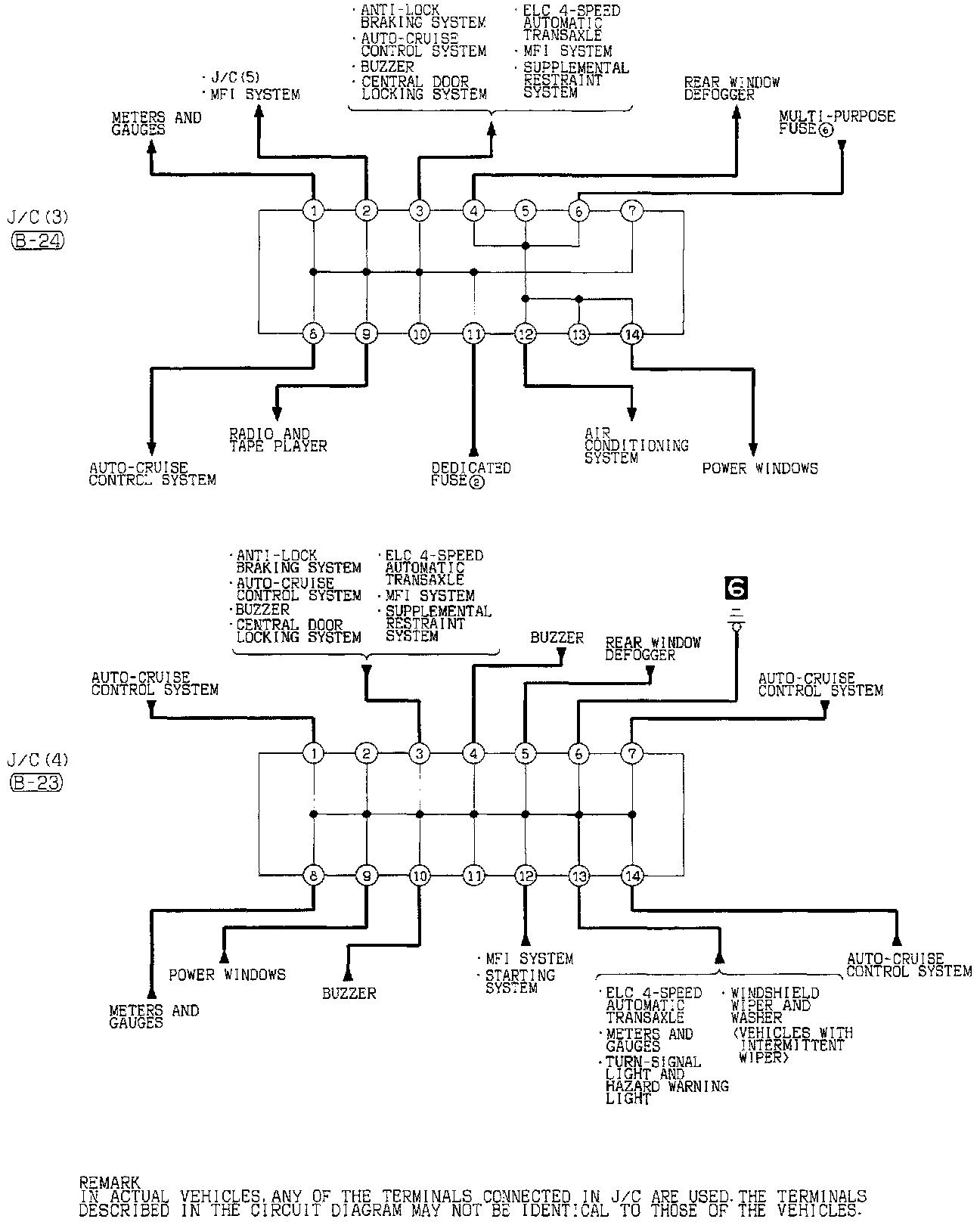

J/C 3 & 4:

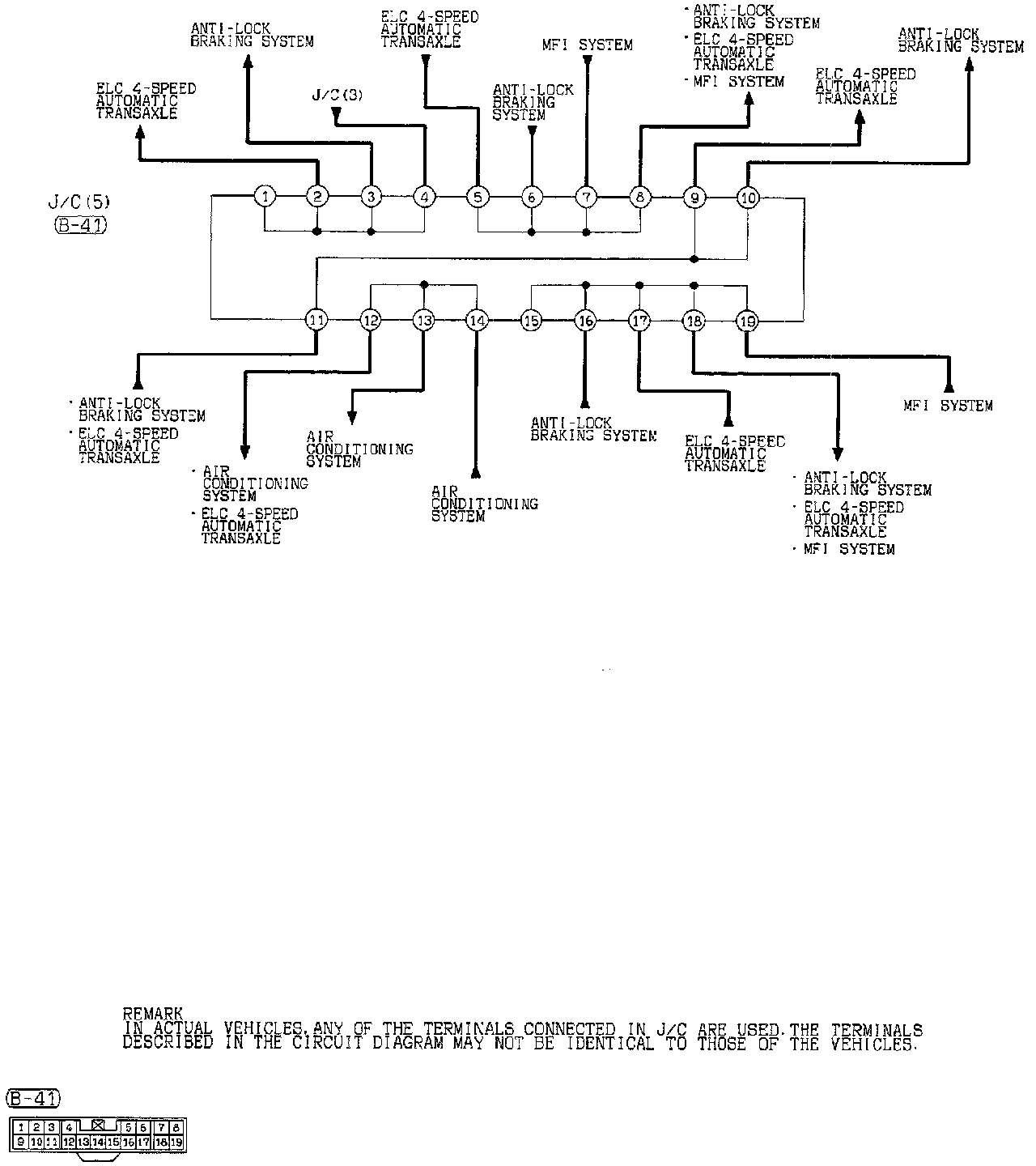

J/C 5:
