Sensors

Locations C - J Overview:

Locations K - N Overview:

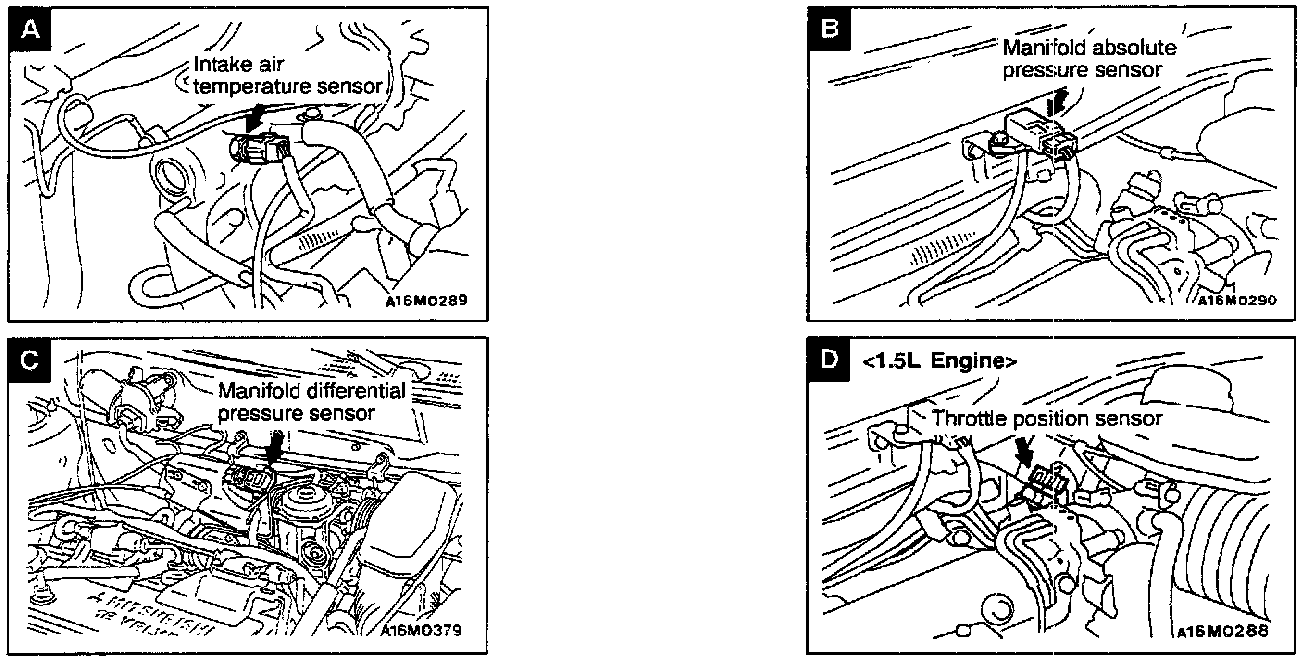

Component Locations A - D:

Component Locations D - J:

Component Locations K - N:

Name Symbol
ABS Speed Sensor (front) K
ABS Speed Sensor (Rear) M
A/T Fluid Temperature Sensor J
Camshaft Position Sensor H
Crankshaft Position Sensor G
Engine Coolant Temperature Sensor E
Fuel Tank Differential Pressure Sensor N
Heated Oxygen Sensor (Front & Rear) L
Heated Oxygen Sensor (Front & Rear) L
Ignition Failure Sensor H
Input Shaft Speed Sensor I
Manifold Differential Position Sensor C
Output Shaft Speed Sensor I
Throttle Position Sensor D
Vehicle Speed Sensor I
Volume Air Flow Sensor F
