Mirage Coupe LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Centralized Relays
Centralized Relays

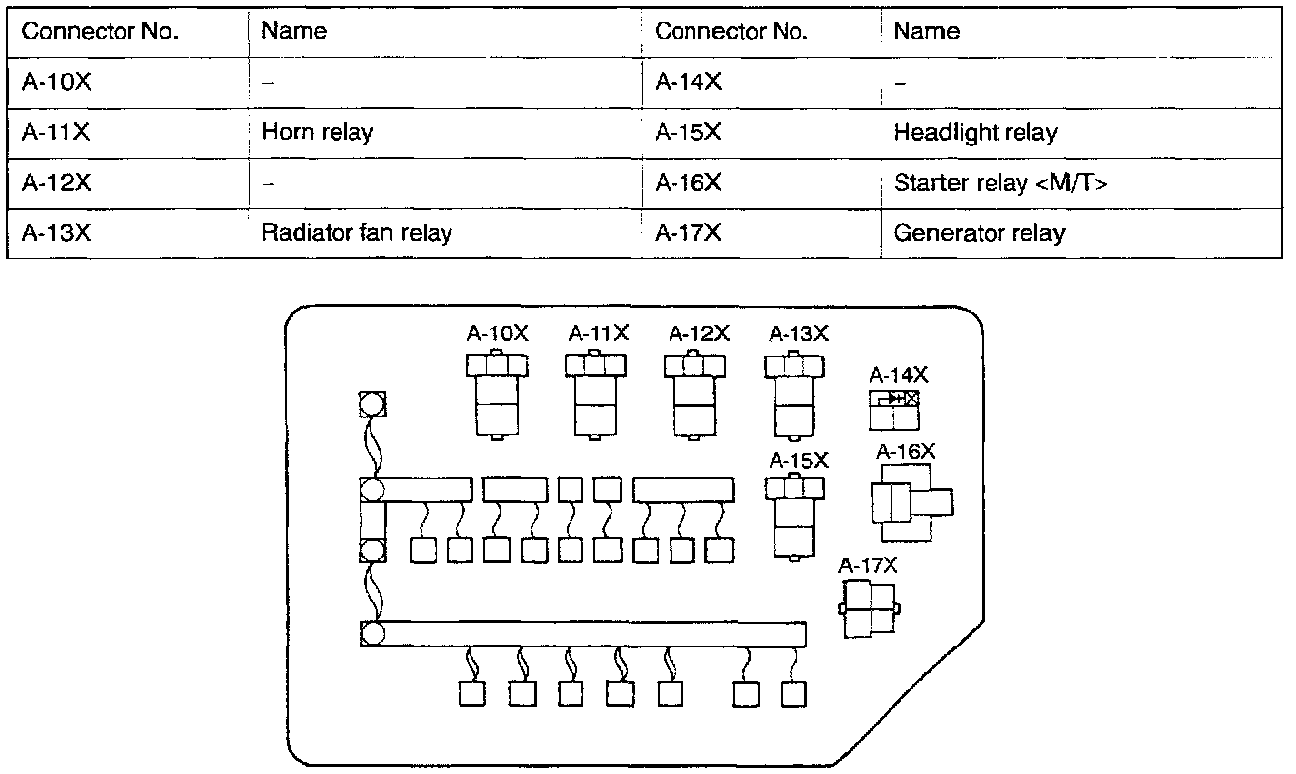

Relay Box In Engine Compartment

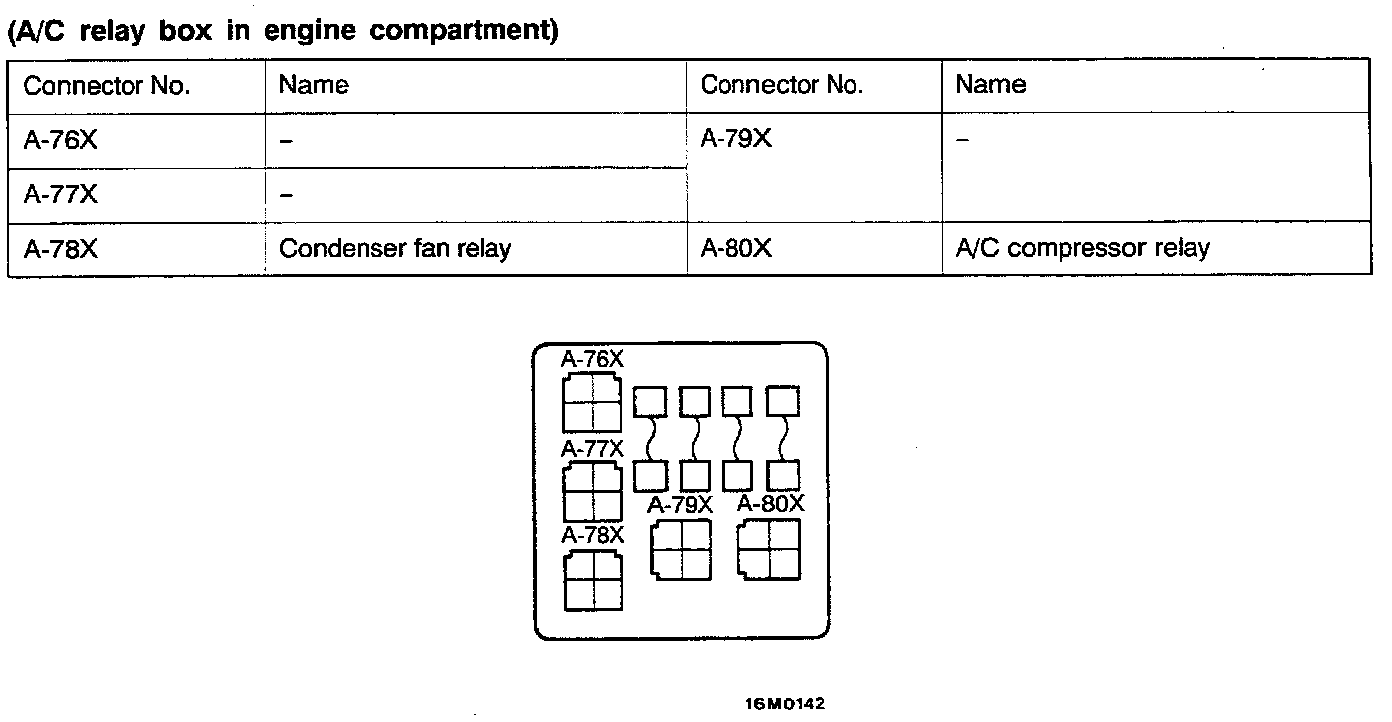

A/C Relay Box In Engine Compartment

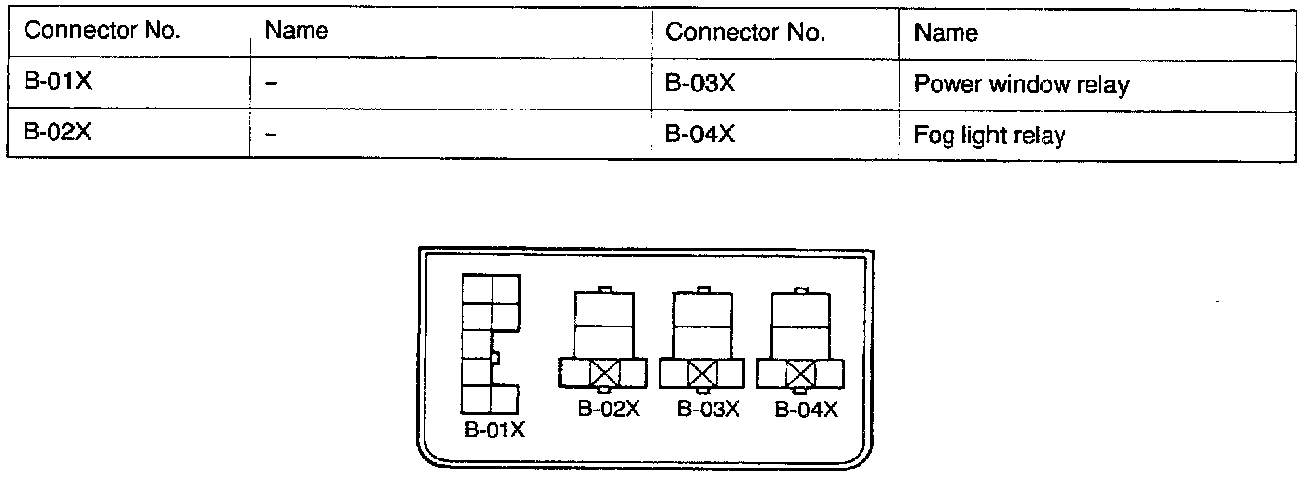

Relay Box In Passenger Compartment
