Cruise Control - Troubleshooting Manual Revision

No.: TSB-01-17-002
DATE: July, 2001
MODEL: See below

SUBJECT:
MIRAGE CRUISE CONTROL TROUBLESHOOTING
- SERVICE MANUAL REVISION

PURPOSE

Inspection procedures for cruise control system troubleshooting are incorrect. This bulletin contains corrected inspection procedures.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

1997-2001 Mirage models equipped with cruise control

AFFECTED SERVICE MANUALS

1997 Mirage, Volume 1, pages 17-10 and 17-22
1998 Mirage, Volume 1, pages 17-10 and 17-21
1999 Mirage, Volume 1, pages 17-11 and 17-22
2000 Mirage, Volume 1, pages 17-11 and 17-20
2001 Mirage, Volume 1, pages 17-11 and 17-21

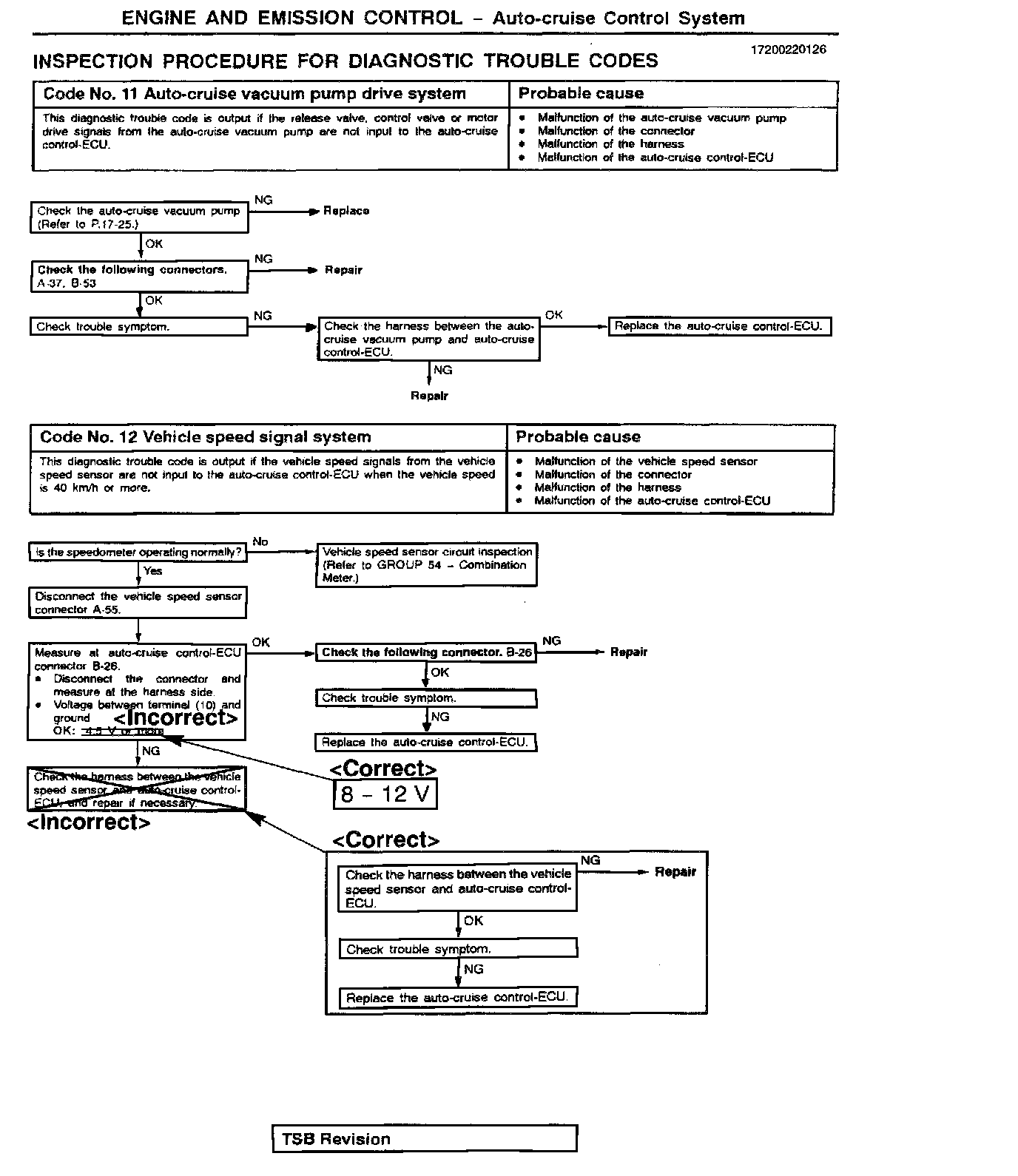

1997 Mirage and 1998 Mirage, Volume 1, page 17-10; 1999 Mirage, Volume 1, page 17-11

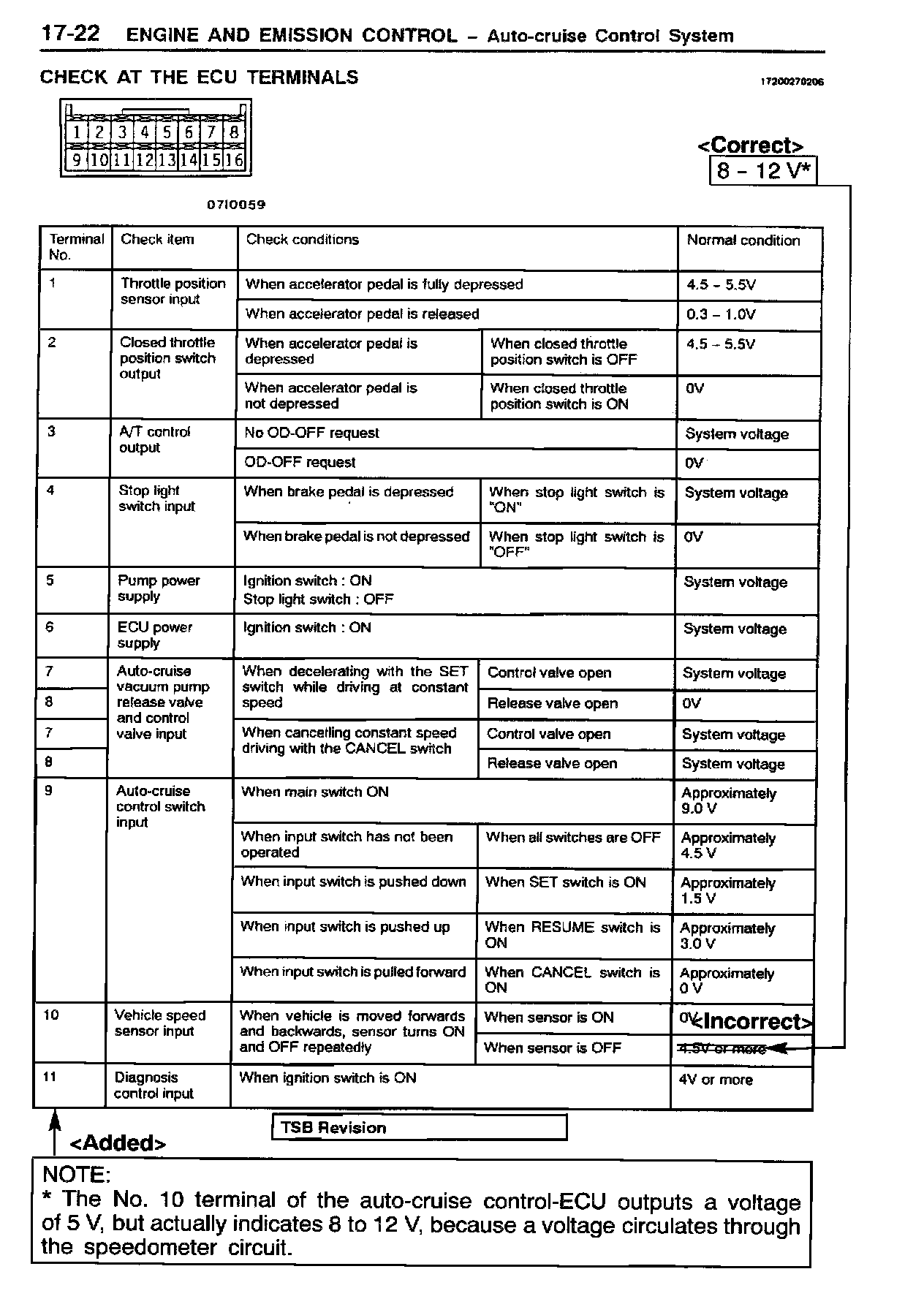

1997 Mirage, Volume 1, page 17-22; 1998 Mirage, Volume 1, page 17-21

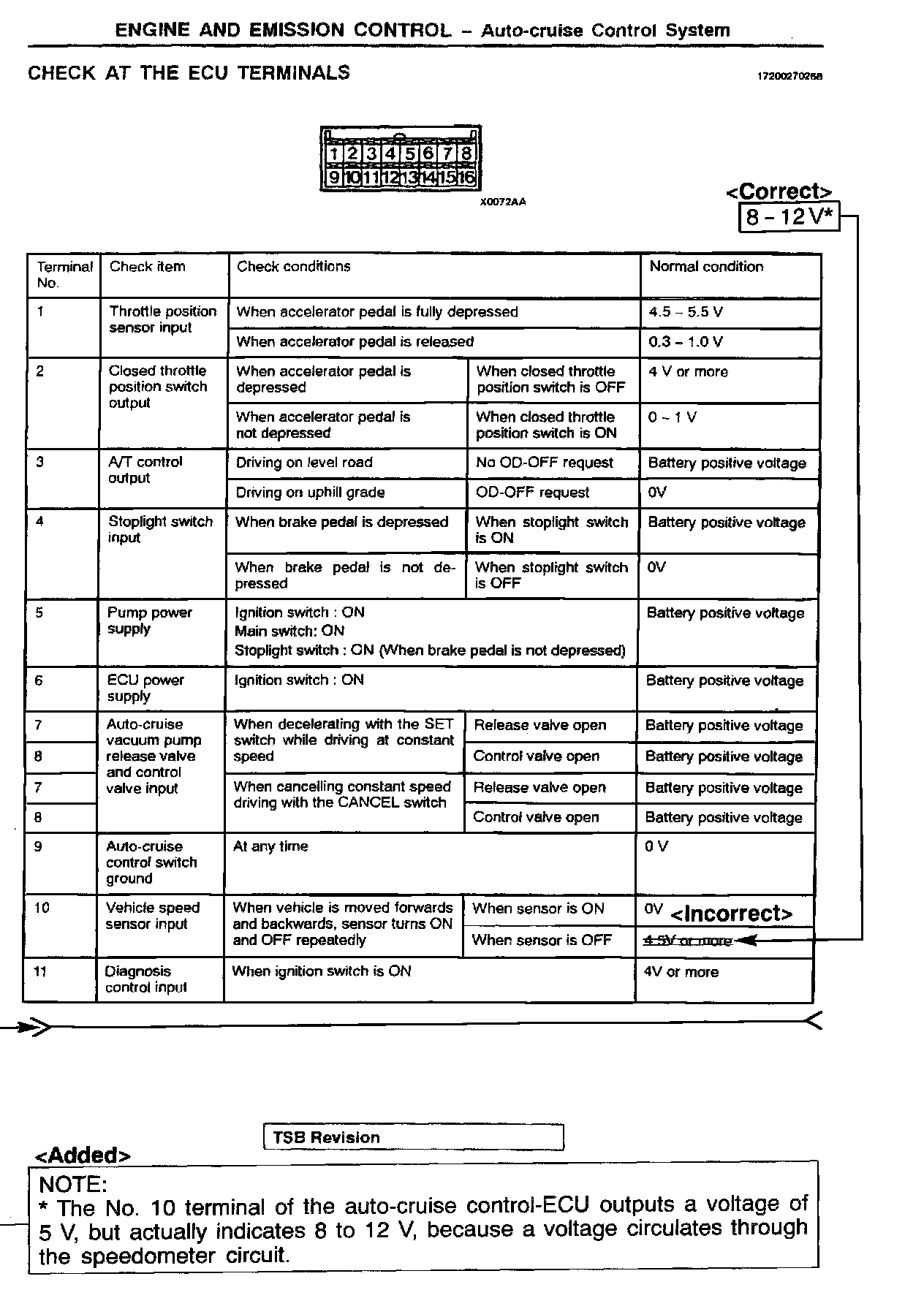

1999 Mirage, Volume 1, page 17-22

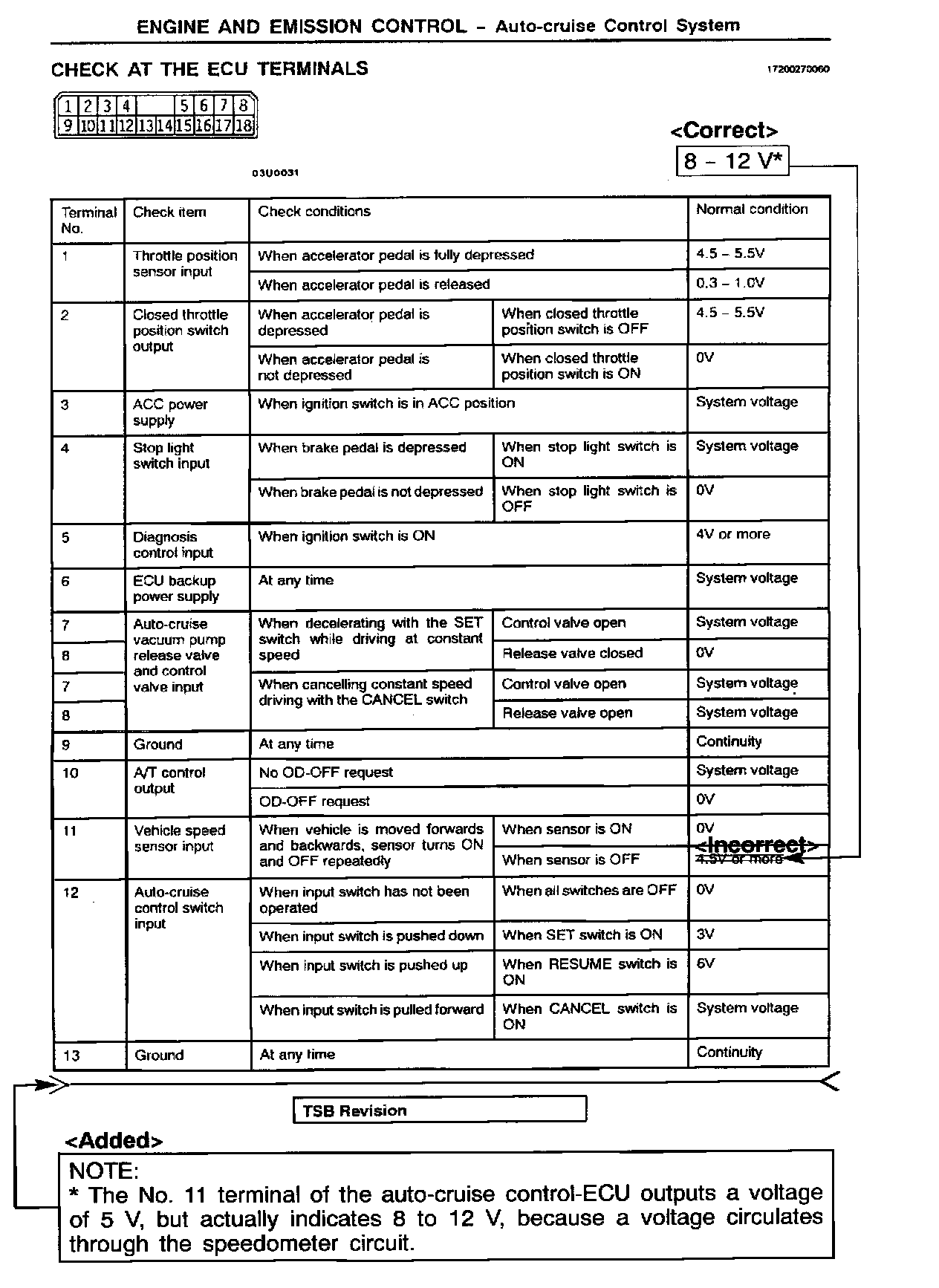

2000 Mirage and 2001 Mirage, Volume 1, page 17-11

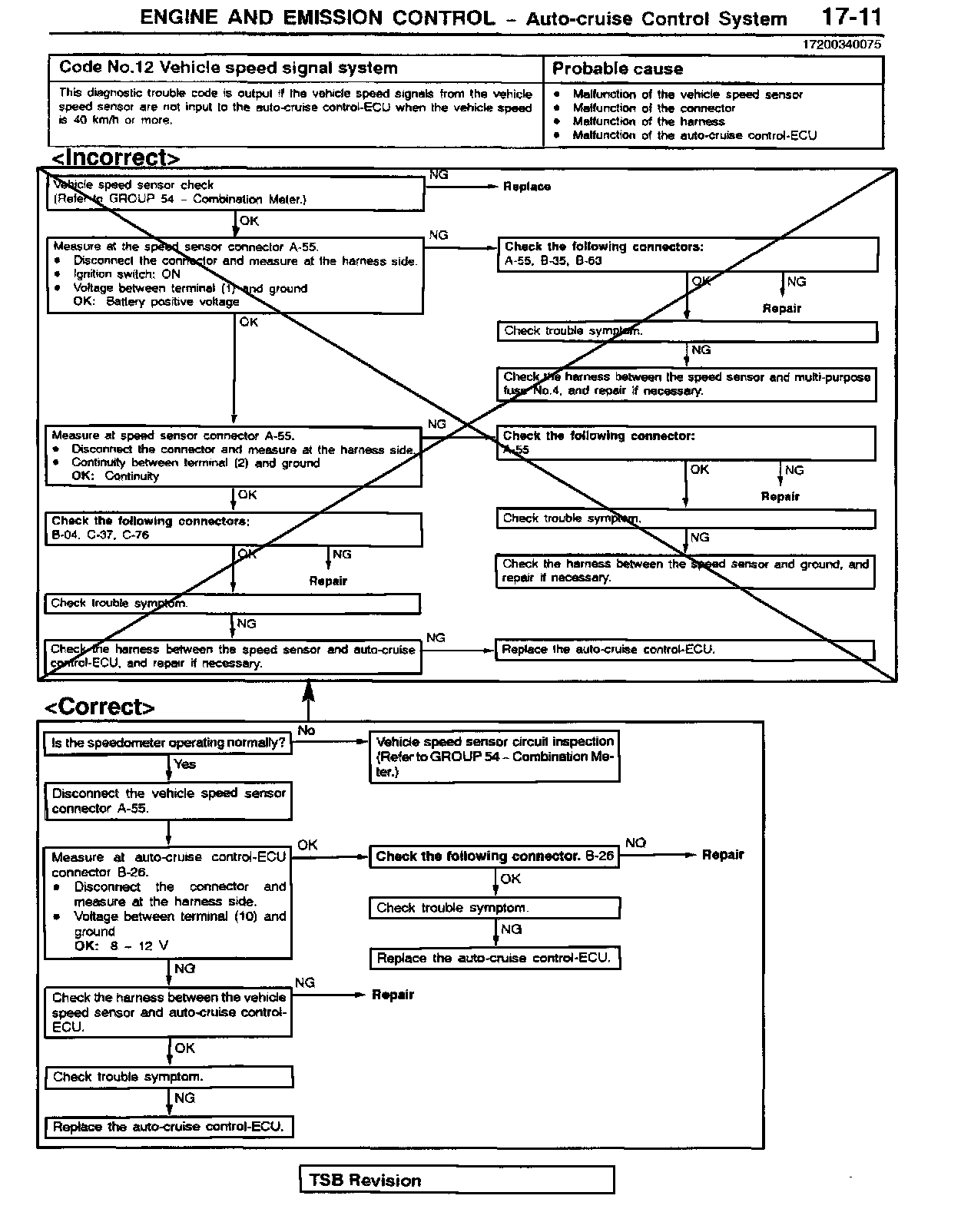

2000 Mirage, Volume 1, page 17-20; 2001 Mirage, Volume 1, page 17-21
