Cruise Control Servo: Testing and Inspection
1.

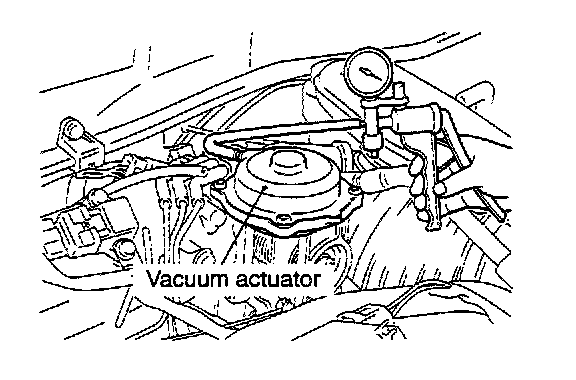

Disconnect the vacuum hose from the vacuum actuator, and connect a hand vacuum pump to the actuator.
2.
Check that the throttle lever operates when applying vacuum, and the vacuum is kept.
