Hydraulic Assembly: Service and Repair

REMOVAL
Pre-removal Operation:
- Brake Fluid Draining.
- Windshield Wiper Motor Removal.

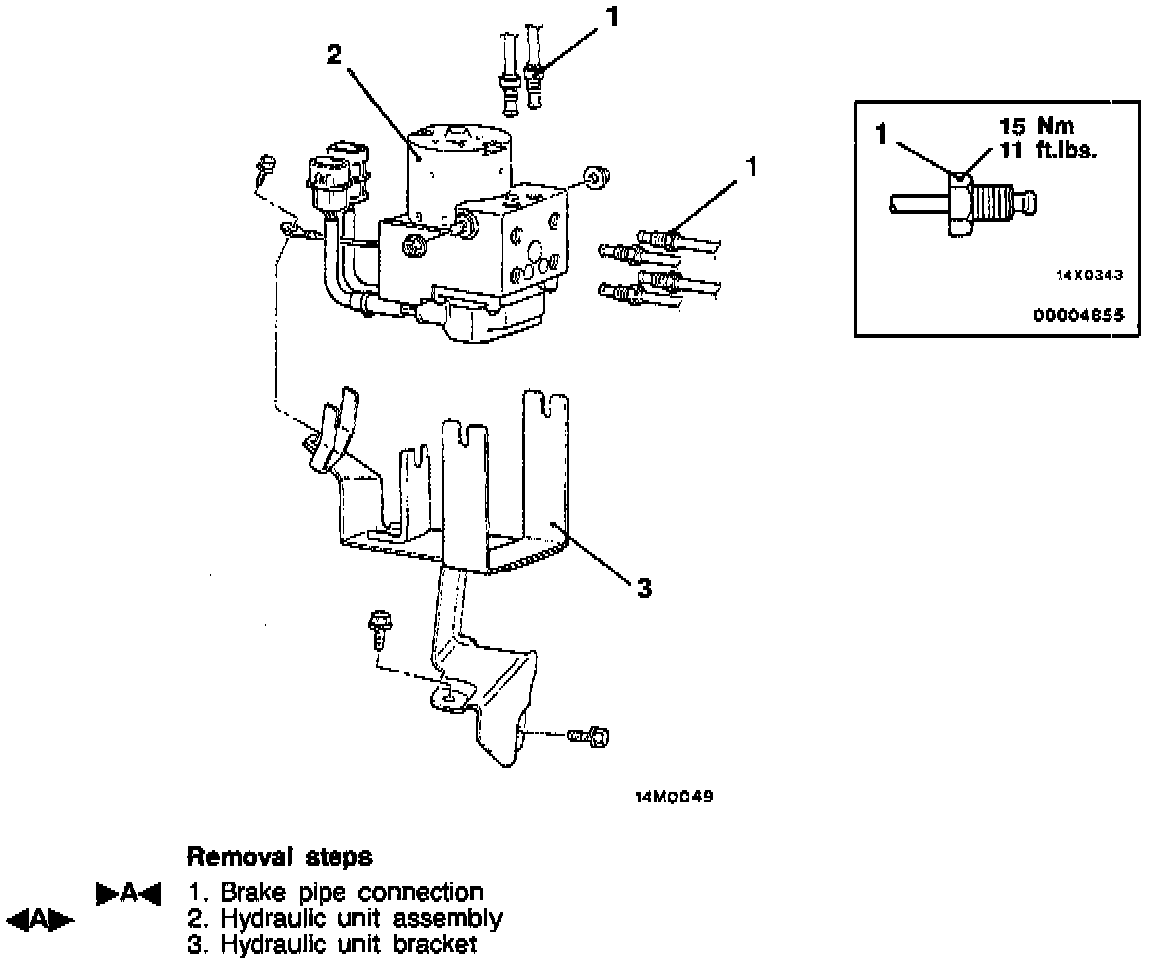

Follow removal steps outlined in illustration.

Removal Service Point
Hydraulic Unit Assembly Removal.

CAUTION:
1. The hydraulic unit assembly is heavy, and so care should be taken when removing it.
2. The hydraulic unit assembly is not to be disassembled; its nuts and bolts should absolutely not be loosened.
3. The hydraulic unit assembly must not be dropped or otherwise subjected to impact shocks.
4. The hydraulic unit assembly must not be turned upside down or laid on its side.

INSTALLATION
Installation in reverse order as removal.

Installation Service Point





>A< Brake Pipe Connection.

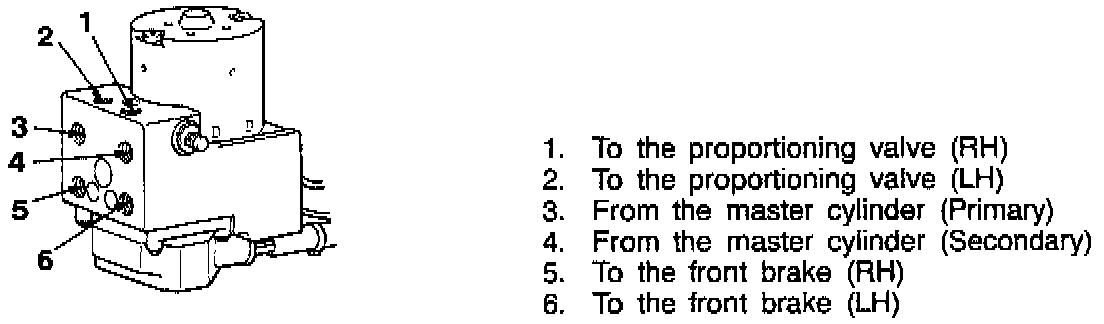

Connect the pipes to the hydraulic unit assembly as shown in the illustration.

Post-installation Operation:
- Windshield Wiper Motor Installation.
- Brake Fluid Supplying.
- Brake Line Bleeding.
- Brake Pedal Adjustment.
