Output Shaft, M/T
SERVICE SPECIFICATIONSOutput Shaft Preload 0.05 - 0.10 mm (0.0020 - 0.0040 inch)
TORQUE SPECIFICATIONS
Gear Mounting Bolts 75 Nm (55 ft. lbs.)

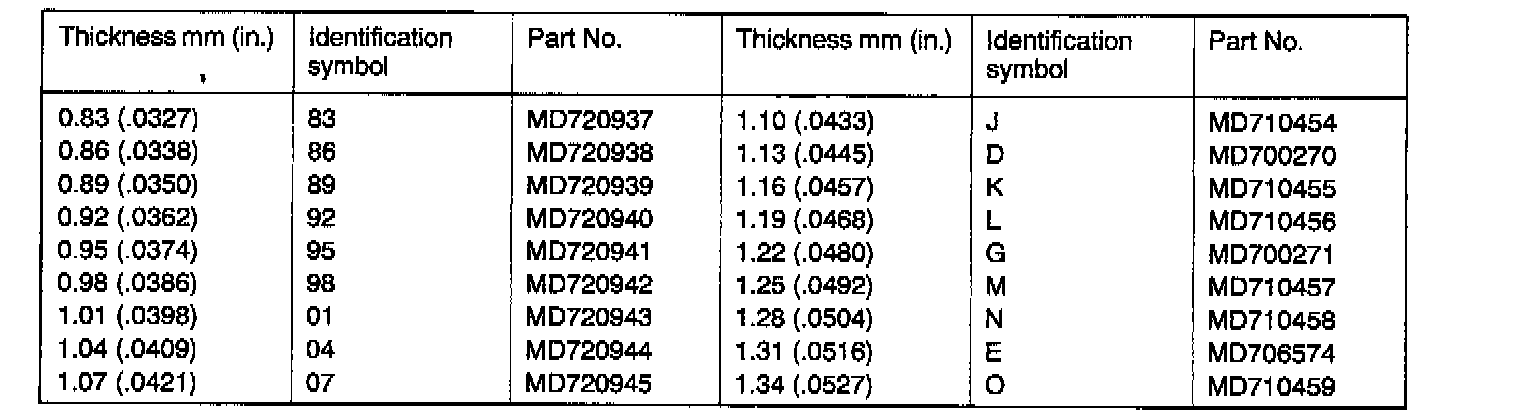

SNAP RINGS AND SPACERS
Spacer (For Adjustment Of Output Shaft End Play)
Output Shaft Preload 0.05 - 0.10 mm (0.0020 - 0.0040 inch)
TORQUE SPECIFICATIONS
Gear Mounting Bolts 75 Nm (55 ft. lbs.)
SNAP RINGS AND SPACERS
Spacer (For Adjustment Of Output Shaft End Play)
