Input Shaft, M/T

SERVICE SPECIFICATIONS
Front Bearing End Play 0.01 - 0.12 mm (0.0004 - 0.0047 inch
Rear Bearing End Play 0 - 0.09 mm (0 - 0.0035 inch)

TORQUE SPECIFICATIONS
Lock Nut 150 Nm (109 ft. lbs.)

SNAP RINGS AND SPACERS

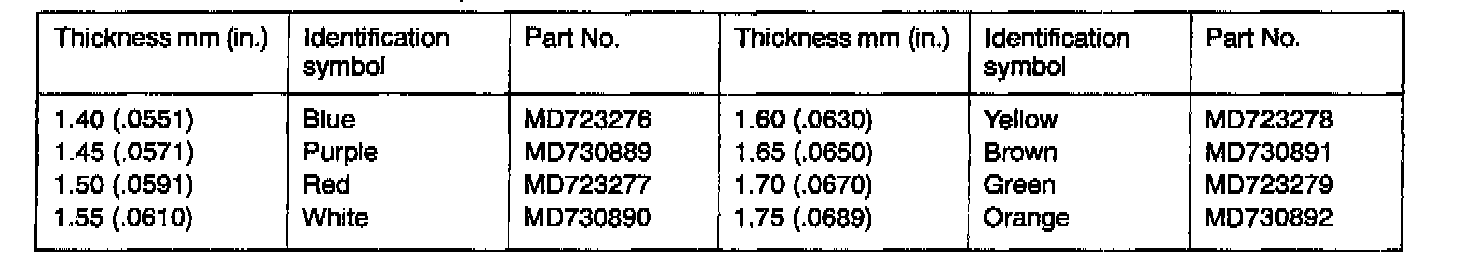

Snap Ring (For Adjustment Of Input Shaft Front Bearing End Play)

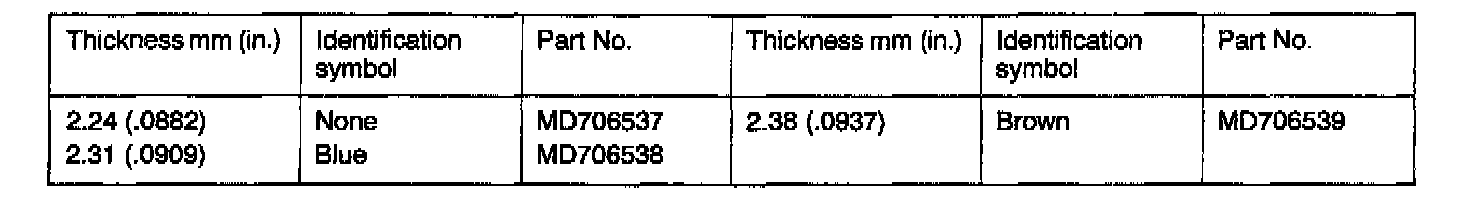

Snap Ring (For Adjustment Of Input Shaft Rear Bearing End Play)
