System Specifications
SERVICE SPECIFICATIONSCase Preload 0.05 - 010 mm (0.0020 - 0.0040 inch)
Pinion Backlash 0.025 - 0.150 mm (0.0009 - 0.00591 inch)
SNAP RINGS AND SPACERS

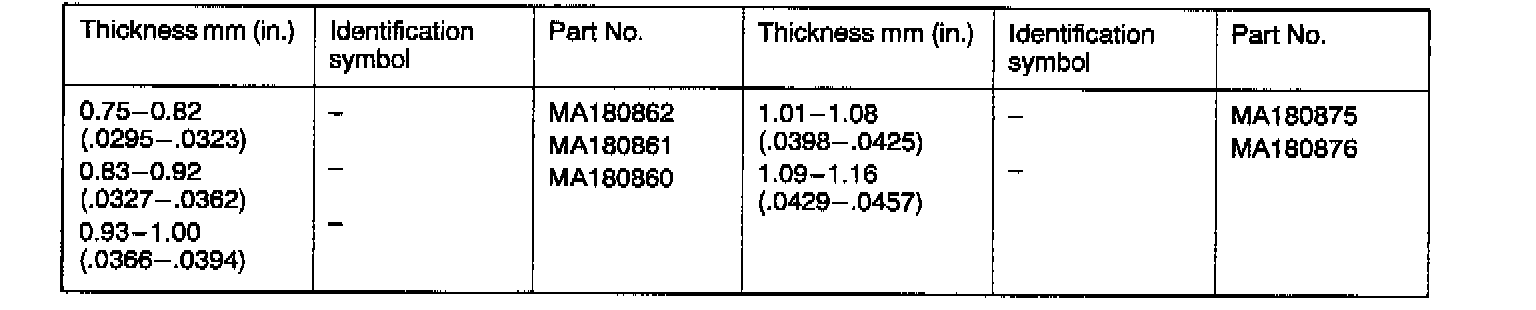

Spacer (For Adjustment Of Front Differential Case End Play)

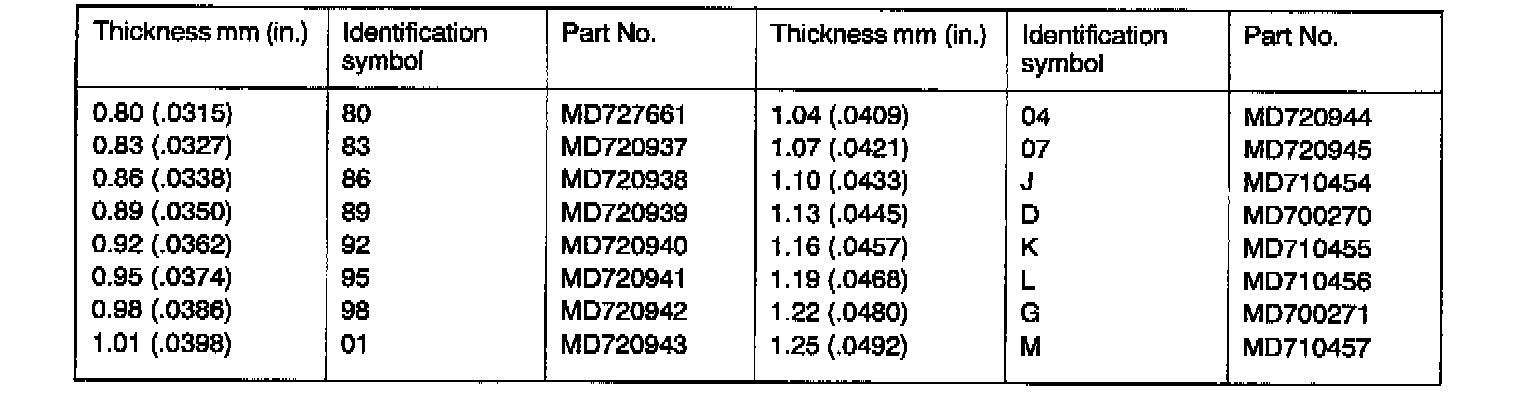

Spacer (For Adjustment Of Front Differential Pinion Backlash)
