Output Shaft, A/T

SERVICE SPECIFICATIONS
Transfer Idler Gear Bearing Preload 1.5 Nm (1.1 ft. lbs.)
Transfer Shaft End Play 0 - 0.025 mm (0 - 0.00098 inch)

TORQUE SPECIFICATIONS
Transfer Shaft Lock Nut 215 Nm (156 ft. lbs.)

PRESSURE PLATE, SNAP RINGS AND SPACERS

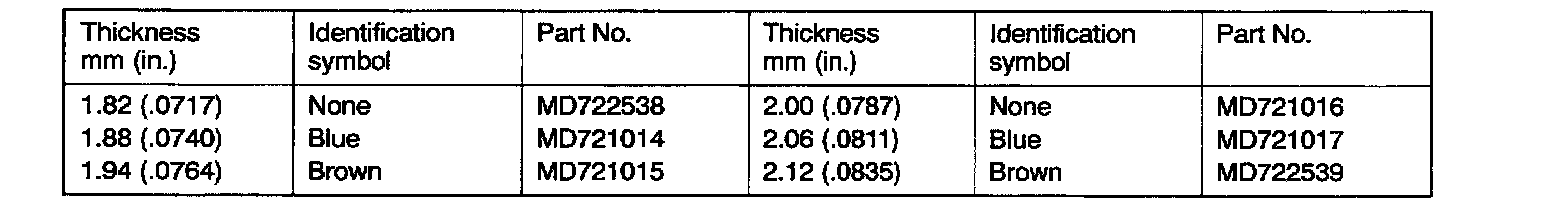

Snap Ring (For Adjustment Of Output Flange Bearing End Play)

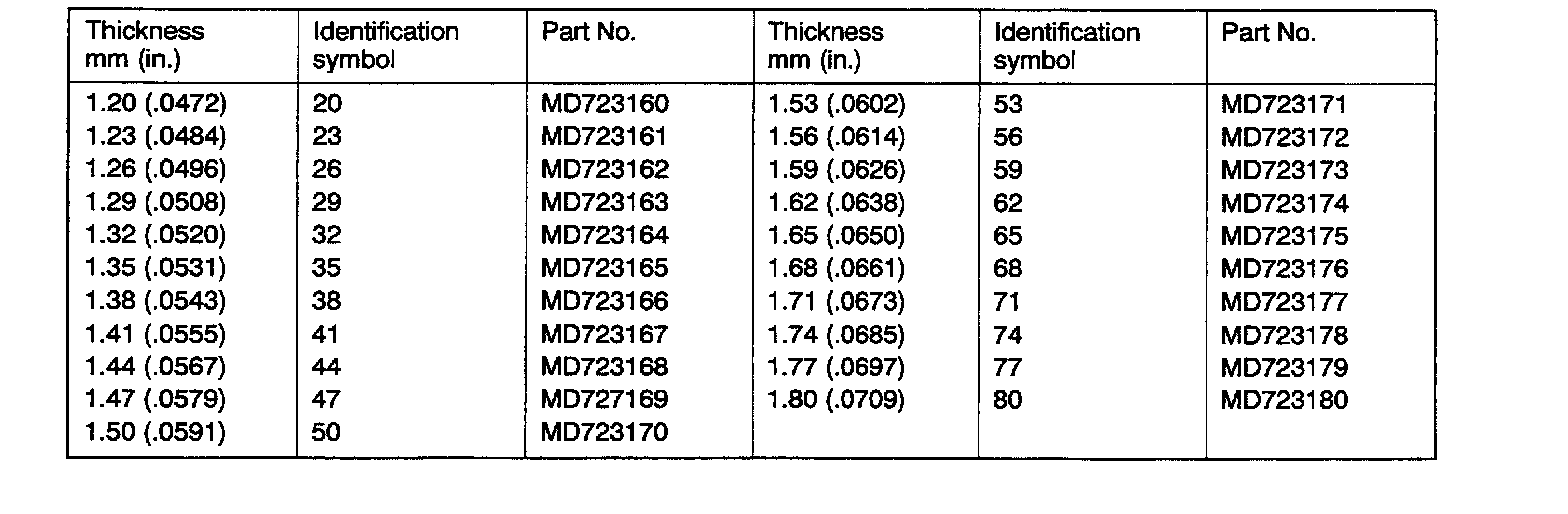

Spacer (For Adjustment Of Transfer Shaft Preload)
