Accelerator Pedal: Service and Repair

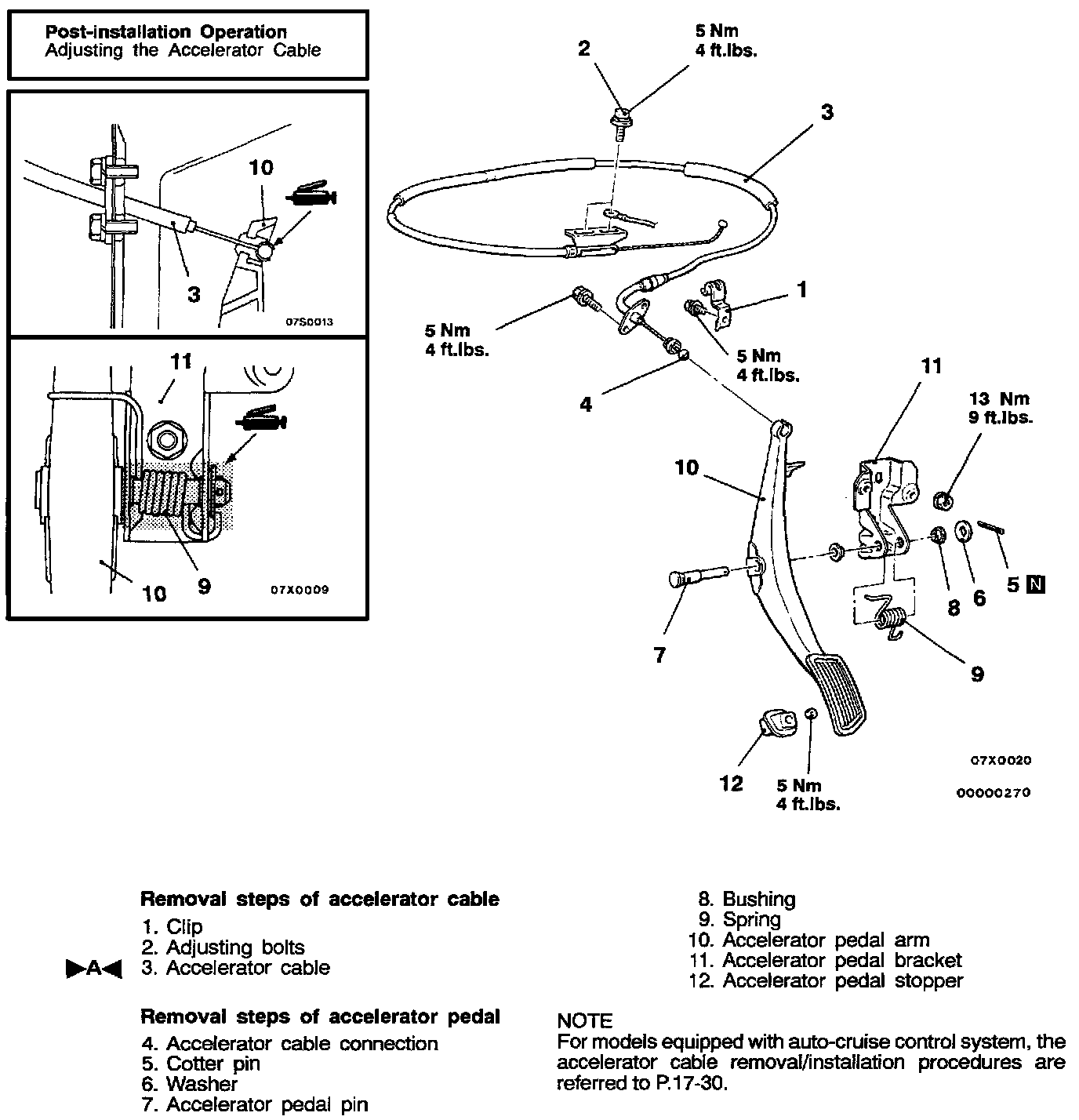

REMOVAL AND INSTALLATION
ACCELERATOR CABLE INSTALLATION

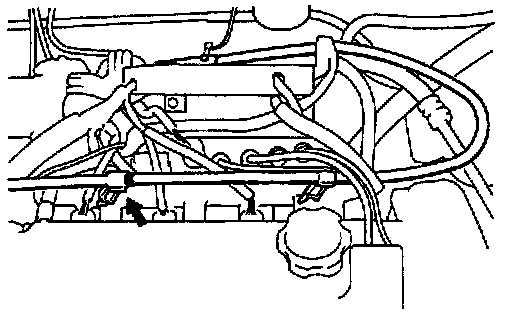

Install the accelerator cable so that the marking section is aligned with the clamp shown by the arrow.
