Alignment: Testing and Inspection

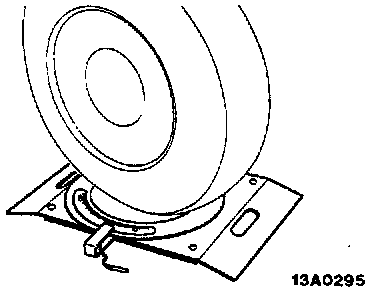

1. Locate front wheels on turning radius gauge and measure steering angle.

Standard value:
Inside wheel: (39° 30' ± 2°) 37° 30' to 41° 30'
Outside wheel: 30° 30'

2. When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
