Coolant Temperature Sensor / Switch HVAC: Service and Repair

REMOVAL SERVICE POINT

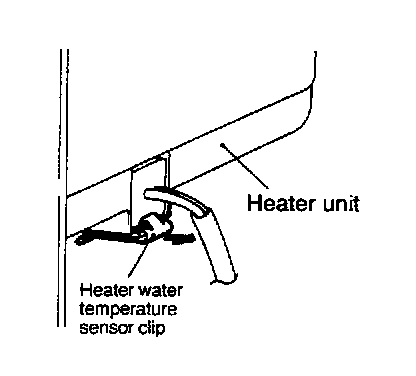

A HEATER WATER TEMPERATURE SENSOR CLIP REMOVAL
Take the heater water temperature sensor clip from the base of the heater unit out to the front of the vehicle.

INSTALLATION SERVICE POINT




A HEATER WATER TEMPERATURE SENSOR CLIP INSTALLATION, HEATER WATER TEMPERATURE SENSOR INSTALLATION
1. Insert the heater water temperature sensor clip into the heater unit.
2. Push in the heater water temperature sensor until the end touches against the stopper of the heater water temperature sensor clip.
