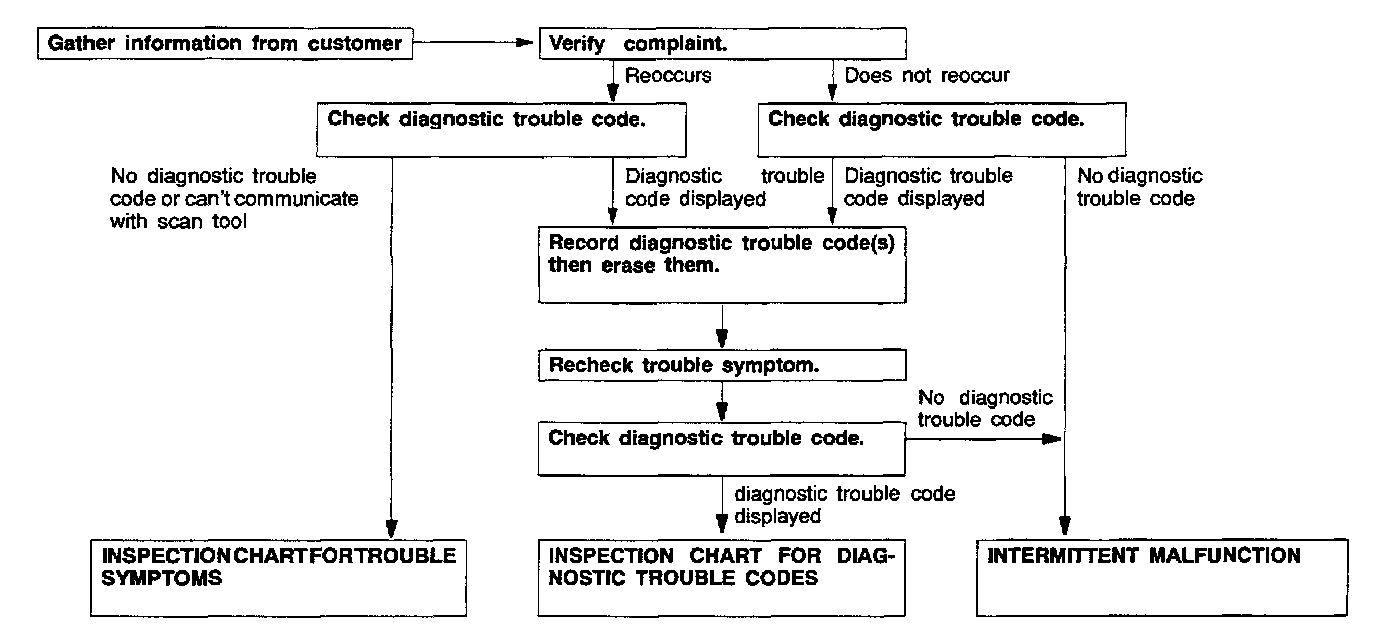

Flow of Diagnosis

NOTE: Before carrying out trouble diagnosis, check to be sure that all of the following items are normal.
1. Is the vacuum hose installed correctly, and is the hose not damaged?
2. Is the routing of all cables normal?
3. Do the link assembly and all cables move smoothly?
4. Is the play of each cable at the standard value?
