Heated Glass Element Switch: Service and Repair

Removal

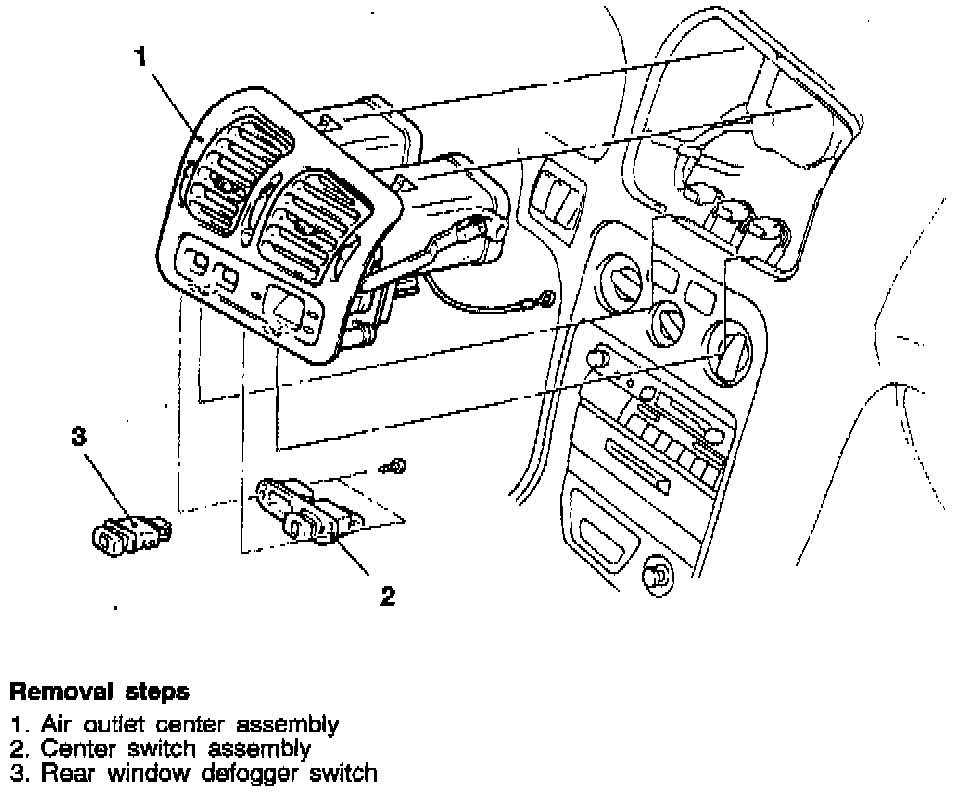

To remove follow the steps listed in the image and note the following:




Step 1: Air Outlet Center Assembly Removal

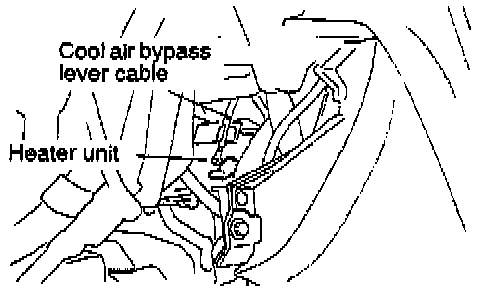

1. Remove the cool air bypass lever cable of the air outlet center assembly at the heater unit side.

Removal Service Point - Air Outlet Center Assembly Removal:

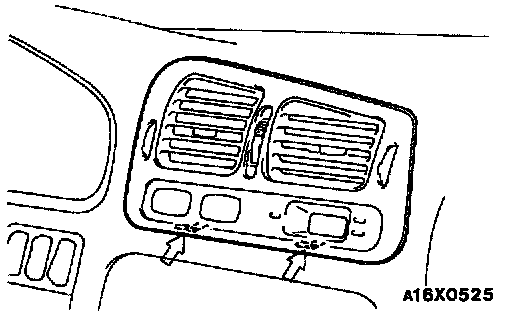

2. Push the springs upwards and remove the air outlet center assembly.

Installation
To install reverse the steps listed in the image and note the following:

Installation Service Point - Air Outlet Center Assembly Installation:

Step 1: Air Outlet Center Assembly Installation
1. Install the air outlet center assembly to the instrument panel.

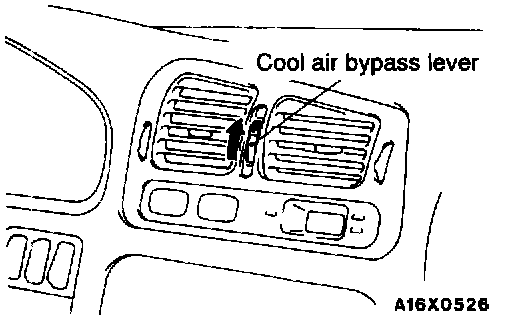

2. Turn the cool air bypass lever of the air outlet center assembly fully upward (in the direction of the arrow).

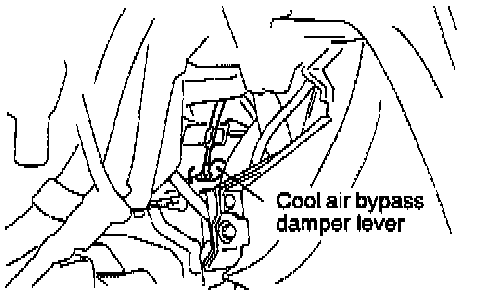

3. Turn the cool air bypass damper lever at the heater unit side fully downward (in the direction of the arrow) and install the cool air bypass lever cable.
