Shift Fork and Control Shaft Assembly

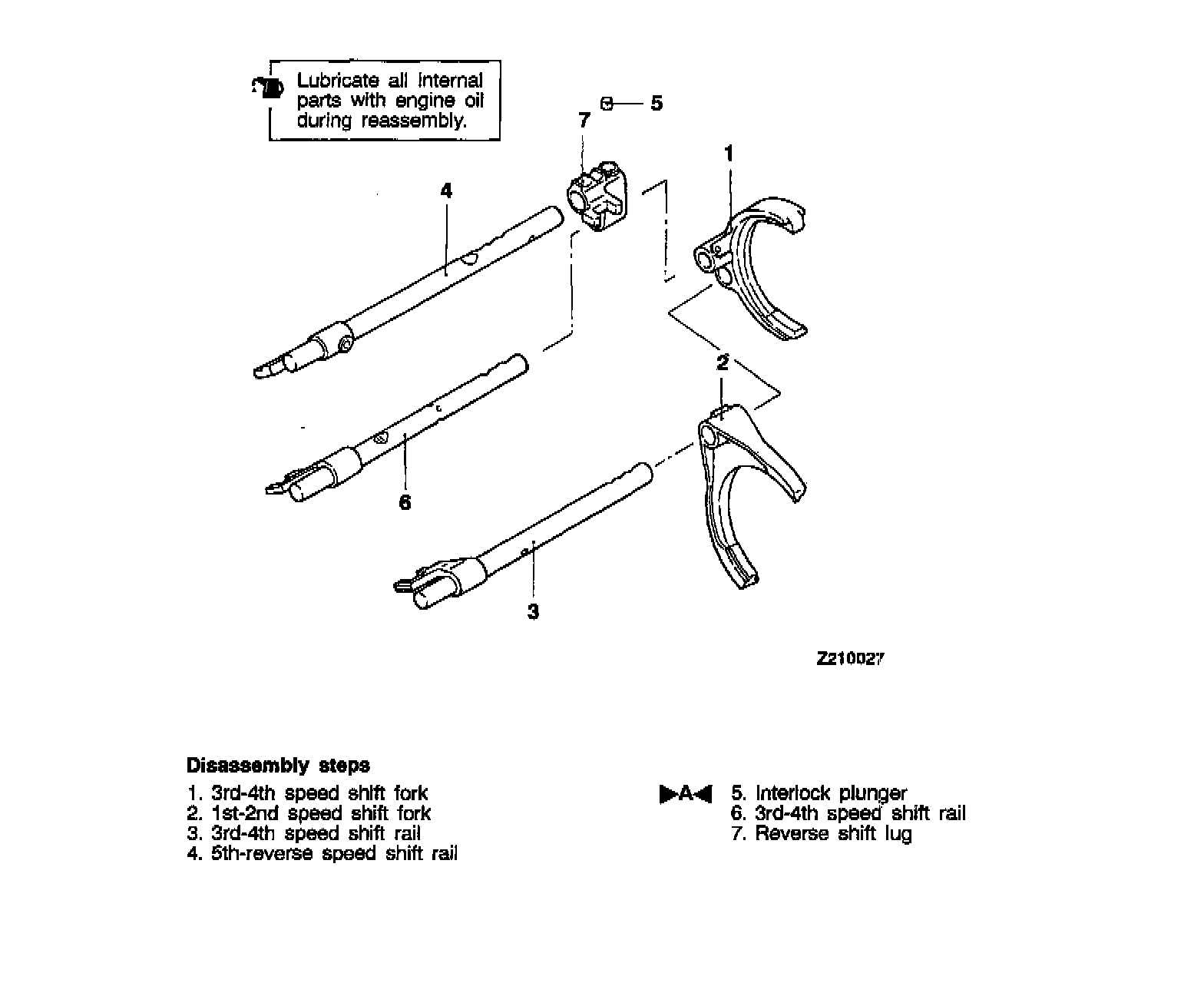

SHIFT FORK DISASSEMBLY AND REASSEMBLY
Reassembly Service Point

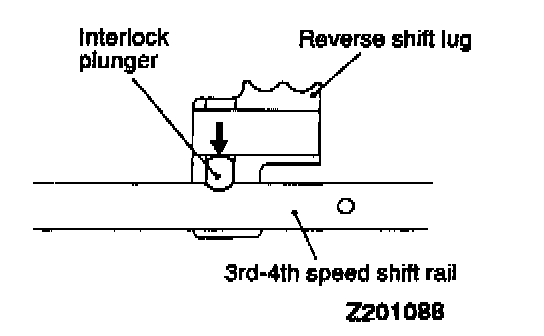

>A< Interlock Plunger Installation
