Front Clutch
FRONT CLUTCH DISASSEMBLY AND REASSEMBLY
Disassembly Service Point

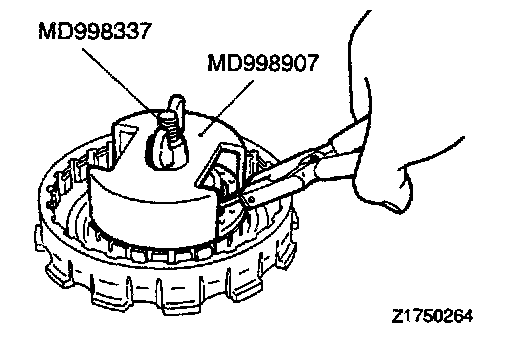

Snap Ring Removal
1. Compress the return spring with the special tool.
2. Remove the snap ring.
Reassembly Service Points

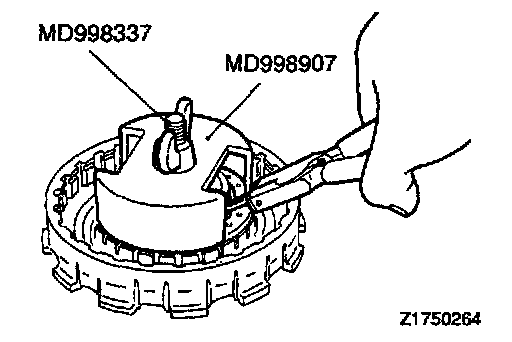

>A< Snap Ring Installation
1. Compress the return spring with the special tool.
2. Install the snap ring.
>B< Clutch Reaction Plate Installation

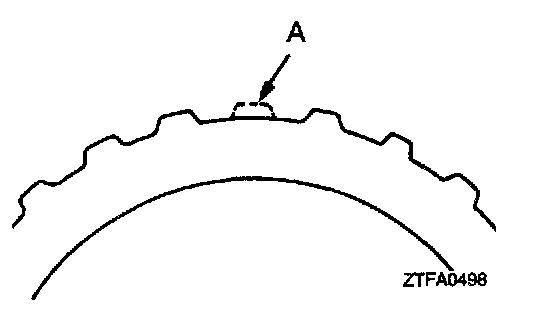

1. Install the clutch reaction plate with their missing tooth portions (A in the illustration) in alignment.
NOTE: This design is to facilitate escape of automatic transmission fluid and improve the cooling efficiency of the plate and disc.

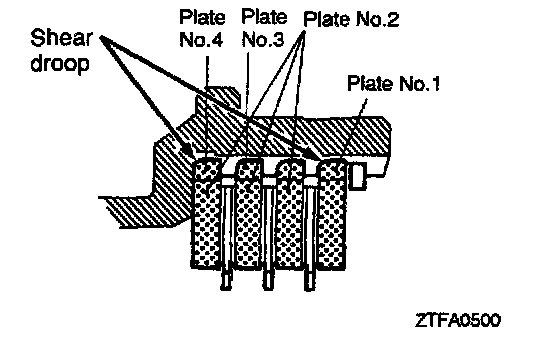

2. Install the innermost the reaction plate with their shear droops directed as shown in the illustration.

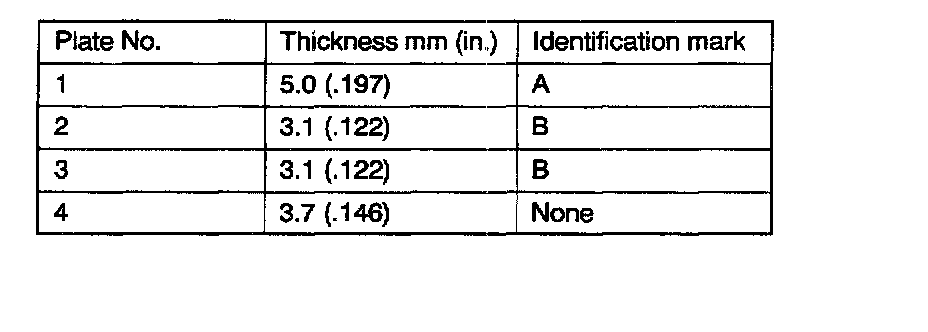

Identification of Reaction Plate

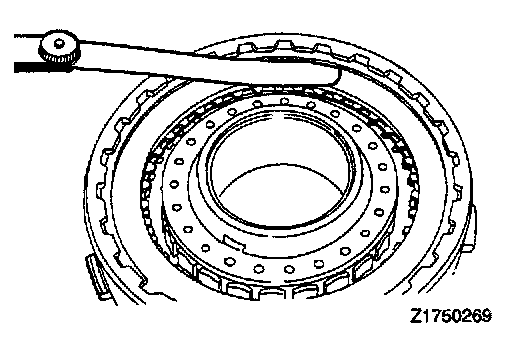

>C< Snap Ring Selection
Check clearance between the snap ring and clutch reaction plate. To check the clearance, hold entire circumference of the clutch reaction plate down with 50 Nm (11 lbs.) force. If clearance is out of standard value, select a snap ring to obtain the standard value.
Standard value: 0.7 - 0.9 mm (0.020 - 0.035 inch)
NOTE: To install the return spring snap rings, set the rings with their end gaps 180° apart.
