Ignition Lock Cable: Service and Repair

REMOVAL AND INSTALLATION


Installation Service Points
>A< Shift Lock Cable Installation

CAUTION: Do not change the routing of shift lock cable to the selector lever assembly.

>B< Key Interlock Cable Installation

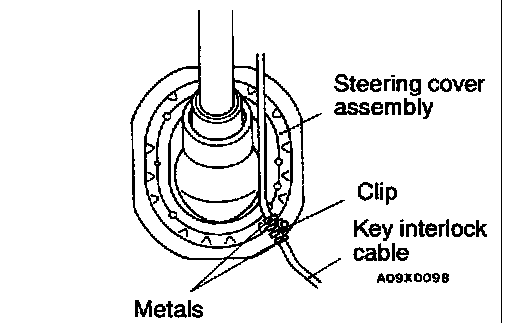

Fix securely by the clip between the metals of the key interlock cable to the steering cover assembly.

CAUTION: Do not change the routing of key interlock cable to the selector lever assembly.

>C< Shift Lock Cable (Selector Lever Side) Installation





1. Place the selector lever in position "P".

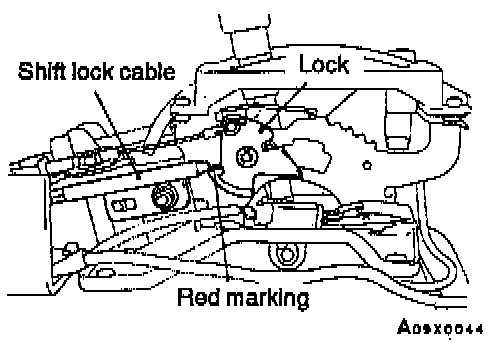

2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking.

>D< Key Interlock Cable (Selector Lever Side)





1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to fasten the key interlock cable.

>E< Key Interlock Cable (Steering Lock Cylinder Side)





1. Place the ignition key at the "LOCK" position or keep it removed.

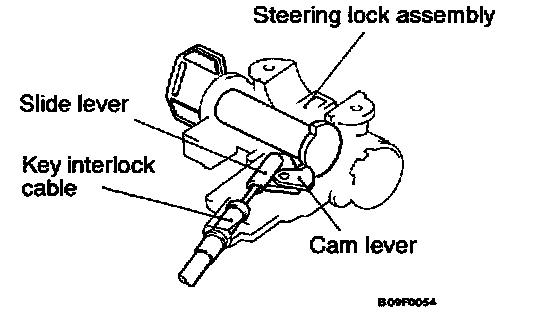

2. Install the slide lever, key interlock cable, and cam lever to the steering lock assembly as shown.

INSPECTION
Check the cables assembly for function and for damage.
