Front Clutch

Service Specifications

Snap Ring Clearance 0.7 - 0.9 mm (0.028 - 0.035 inch)

Pressure Plate, Snap Rings and Spacers

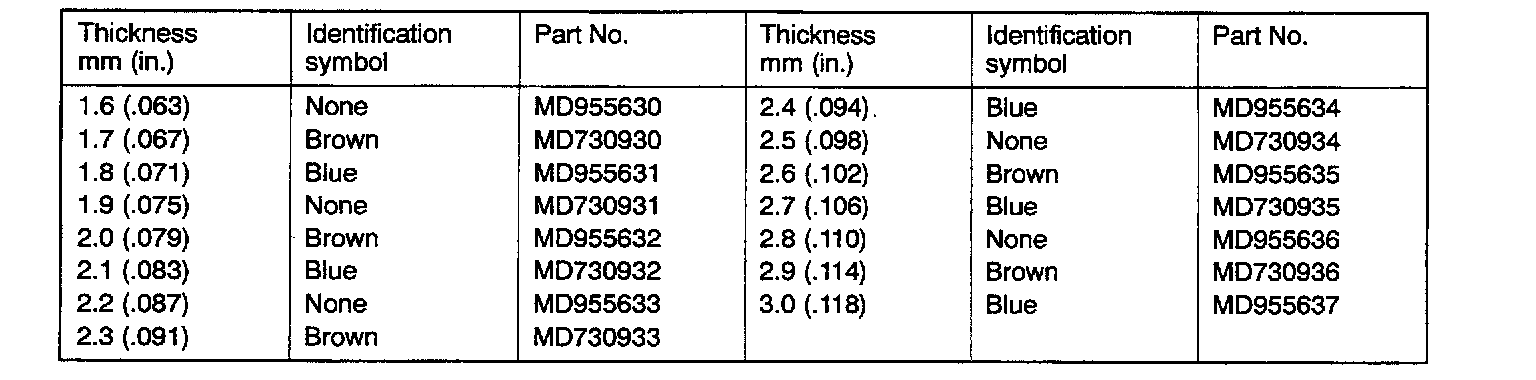

Snap Ring (For Adjustment Of Front Clutch And Rear Clutch Clearance)
