Galant ES L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>

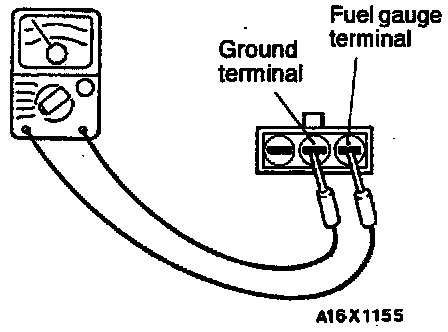

Fuel Gauge Sender
Fuel Gauge Sender
Float point "F"
4 ± 2 Ohm
Float point "E"
112 ± 7 Ohm
